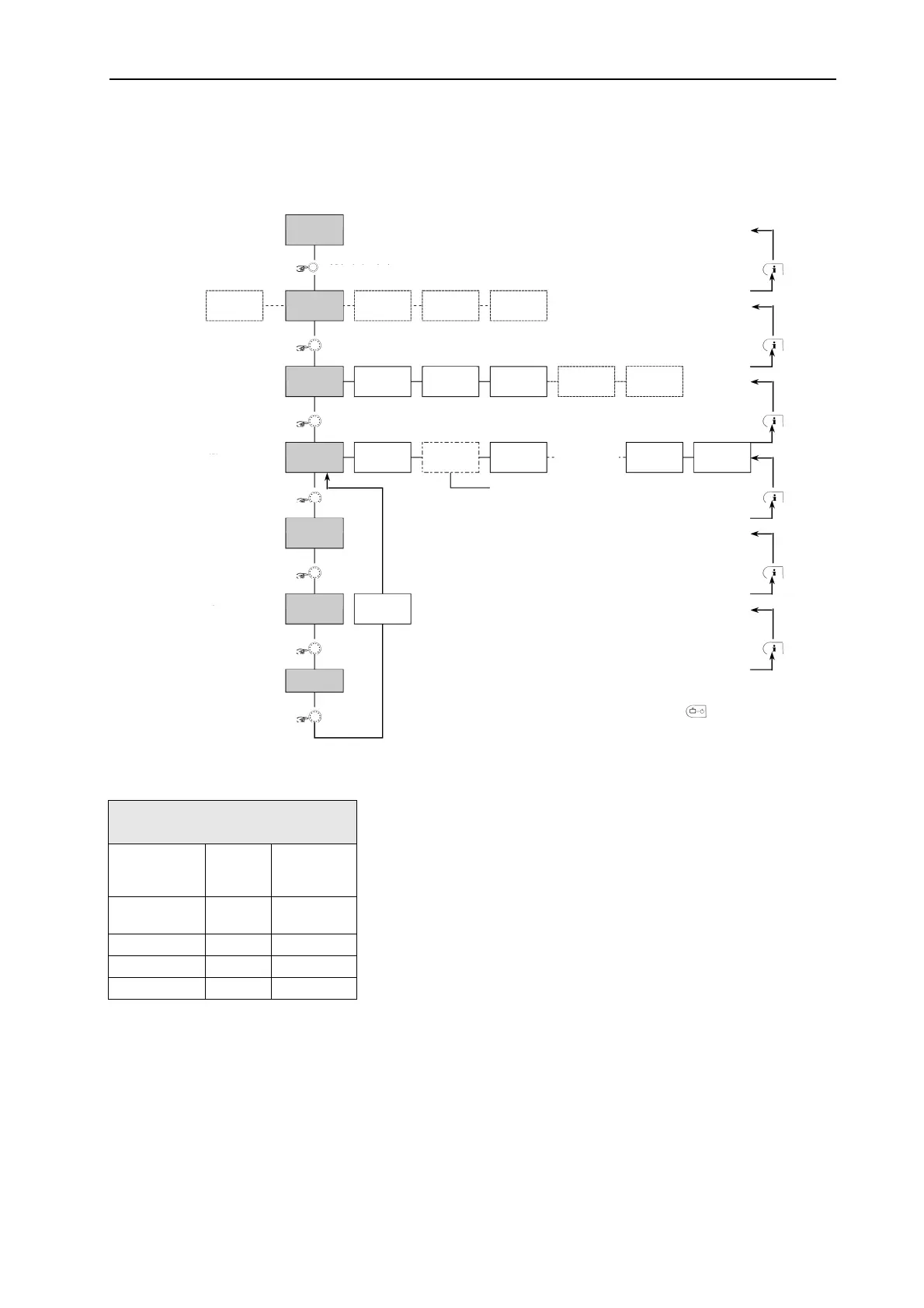

Time program programming (Program P2 and P3 disabled)
After entry into the level selection, the time program is always displayed first. Enabling programs P2 and P3
in level - SYSTEM (Page 5-42) - (see level selection Page 5-20)
Standard program P1
Standard time program (P1) for heating and
DHW
Heating circuit DAY
Heating
operation
from to
Uniform, constant heating and DHW on every weekday
Boiler heating
circuit
Mo - Su 6.00 - 22.00
DHW circuit Mo - Su 5.00 - 22.00
Mixed circuit 1 Mo - Su 6.00 - 22.00
Mixed circuit 2 Mo - Su 6.00 - 22.00
STANDARD
DISPLAY
TIME PROGRAMS
UNMIXED
CIRCUIT
MONDAY
Heating cycle 1
HEATING START
HEATING END
TEMPERATURE
TIME-
CALENDER
SYSTEM-
PARAMETER
MIXED CIRCUIT
1
MONDAY
Heating cycle 2
Check
MONDAY
Heating cycle 3
MONDAY
Heating cycle 1
SUNDAY
last heating cycle
COPY
DAYS
COPY
HEATING
CIRCUITS
STANDARD
DHW
MIXED CIRCUIT
2
UNMIXED
CIRCUIT
etc.
Push for approx. 3 seconds
press
press
press
press
press
press
ð
change
Temperature
Switch-off time
ð
change
Switch-on time
ð
change
Example: Monday-cycle I
Day and cycle
ð
select
Example: Unmixed heating
Heating
circuit
ð
select
Level - SELECTION
only appears if
2. heating cycle time
programs are available!
WE — TH — FR — SA
Direct return to standard display using
program key
