5-28

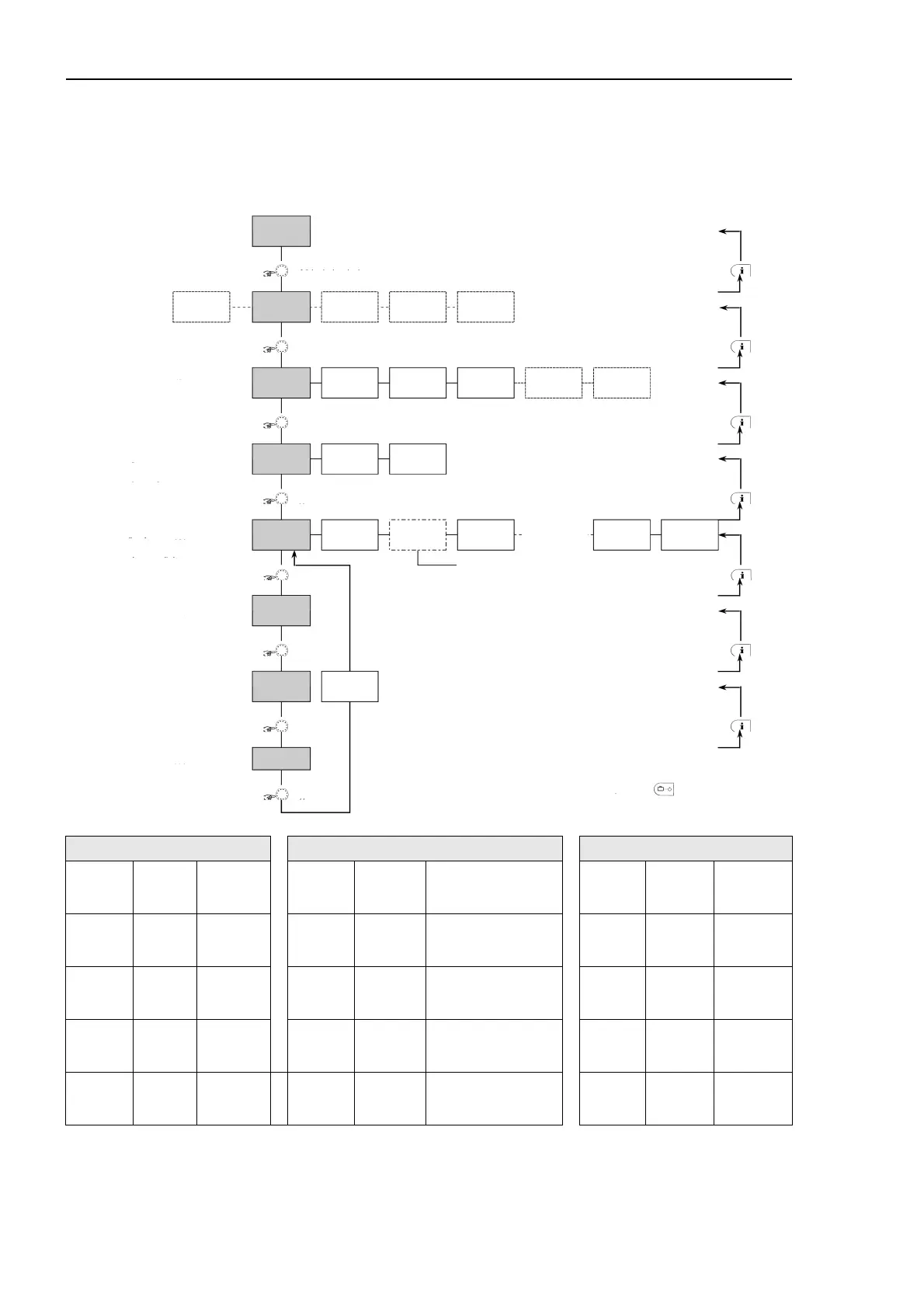

Time program programming (Program P2 and P3 enabled)
After entry into the level selection, the time program is always displayed first. Enabling programs P2 and P3
in level - SYSTEM (Page 5-42) - (see level selection Page 5-20)
Standard program P1 Standard program P2 Standard program P3
Heating
circuit
DAY
Heating
operation
from to
Heating
circuit
DAY
Heating operation
from to from..to
Heating
circuit
DAY
Heating
operation
from to
Boiler
heating
circuit
Mo - Su 6.00 - 22.00
Boiler
heating
circuit
MO - TH
Fr
Sa-Su
6.00-8.00 16.00-22.00
6.00-8.00 13.00-22.00
7.00-23.00
Boiler
heating
circuit
Mo - Fr
Sa-Su
7.00 - 18.00
red. heating
DHW
circuit
Mo - Su 5.00 - 22.00
DHW
circuit
MO - TH
Fr
Sa-Su
5.00-8.00 15.30-22.00
5.00-8.00 12.30-22.00
6.00-23.00
DHW
circuit
Mo - Fr
Sa-Su
6.00 - 18.00
red. heating
Mixed
circuit 1
Mo - Su 6.00 - 22.00
Mixed
circuit 1
MO - TH
Fr
Sa-Su
6.00-8.00 16.00-22.00
6.00-8.00 13.00-22.00
7.00-23.00
Mixed
circuit 1
Mo - Fr
Sa-Su
7.00 - 18.00
red. heating
Mixed
circuit 2
Mo - Su 6.00 - 22.00
Mixed
circuit 2
MO - TH
Fr
Sa-Su
6.00-8.00 16.00-22.00
6.00-8.00 13.00-22.00
7.00-23.00
Mixed
circuit 2
Mo - Fr
Sa-Su
7.00 - 18.00
red. heating
STANDARD
DISPLAY
TIME PROGRAMS
UNMIXED
CIRCUIT
PROGRAM P1
MONDAY
Heating cycle
HEATING START
HEATING END
TEMPERATURE
TIME-
CALENDER
SYSTEM-
PARAMETER
UNMIXED
CIRCUIT
etc.
MIXED CIRCUIT
1
MIXED CIRCUIT
2
DHW
STANDARD
COPY
HEATING
CIRCUITS
PROGRAM P2
PROGRAM P3
MONDAY
Heating cycle 2
MONDAY
Heating cycle 3
TUESDAY
Heating cycle 1
SUNDAY
last heating cycle
COPY
DAYS
Check
Push for approx. 3 seconds
press
press
press
press
press
press
press
Temperature
Switch-off time
Switch-on time
Day and cycle
Example: Monday-cycle I
Program
Example: Program I
Example: Unmixed heating circuit
Heating circuit
Level - SELECTION
only appears if
2. heating cycle time
programs
are available!
Direct return to standard display using
program key
WE — TH — FR — SA
ð
change
ð
change
ð
change
ð
select
ð
select
ð
select
