Rottler H85A - Page 117

Section 6 Maintenance H85A Manual
www.rottlermfg.com
6-10

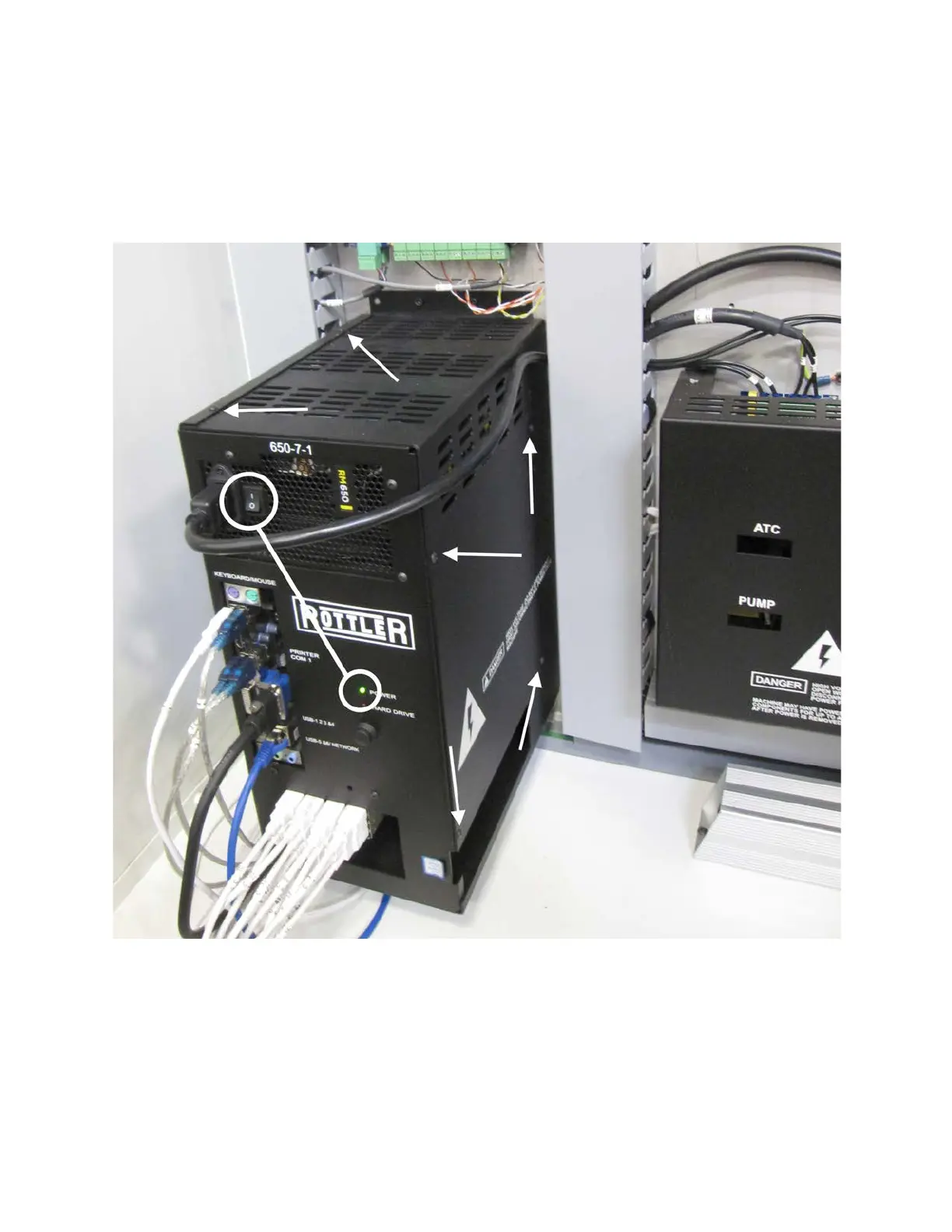

Locate the computer and check to see that the power light is not on. If it is on turn off the power switch.
Note: On some machines it may be necessary to unbolt the computer from the enclosure in order to gain
access to the cover screws.
Remove the 6 screws indicated by the arrows from the cover.
Remove the cover.
