Hardware Description and Device Connection
LED Status Description and Pushbutton Description

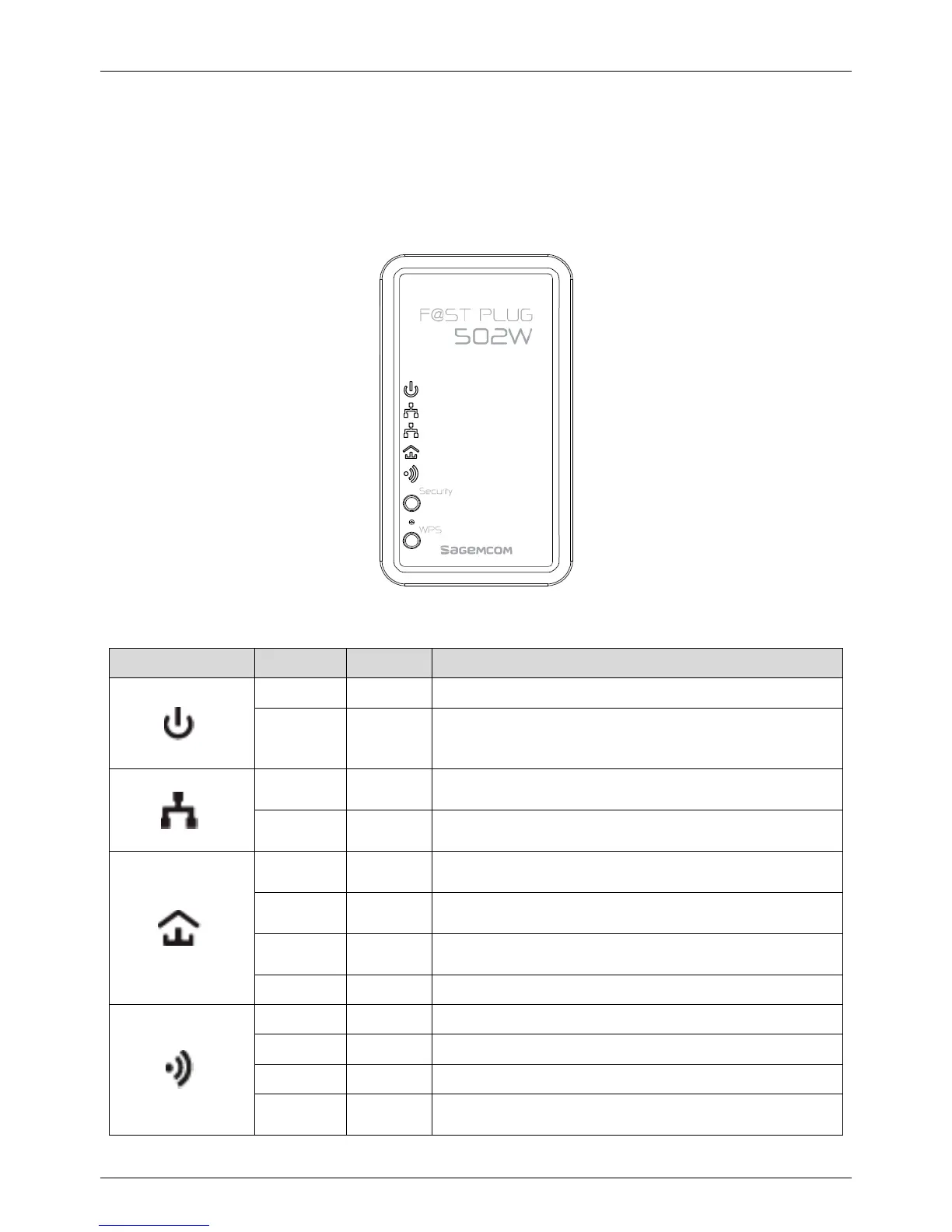

There are 5 LED indicators on the front panel of the PLC wireless router. By observing their
status, you can check whether the device runs normally.
The following table describes the status of LED indicators on the front panel:
LED Indicator Color Status Description
Green On System runs normally.
Green Blink
System is resetting.
System is in the process of password
synchronization.
Green On
Connection via the LAN1 or LAN2 interface
succeeds.
Green Blink
Data is being transmitted via the LAN1 or LAN 2
interface.
Green On
PLC transmission rate equals to or is greater
than 40 Mbps.
Orange On
PLC transmission rate is between 20 Mbps
and 40 Mbps.
Red On
PLC transmission rate is smaller than or equals
to 20 Mbps.
- Off Device is not connected to the power line network.
Green On WLAN is enabled.
Green Blink Wireless data is being transmitted.
Orange On WLAN is enabled and WPS connection succeeds.
Orange Blink
WPS negotiation is in progress and wireless data
is being transmitted.
