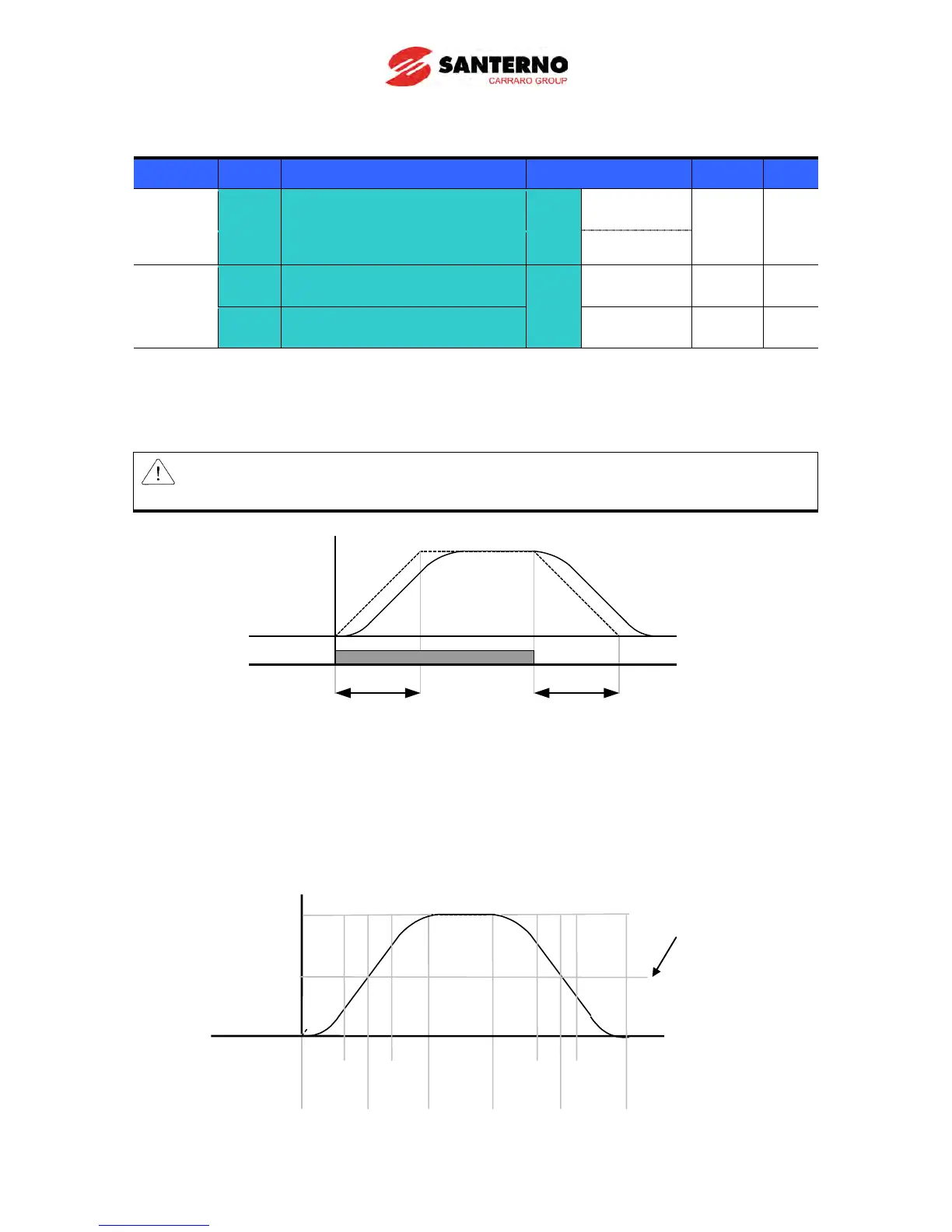

 Accel/Decel pattern setting
Group Code Parameter Name Setting range Initial Unit
Function
group 1
F2 [Accel pattern] 0
Linear
0
F3 [Decel pattern] 1
S-curve
Function
group 2
H17
[S-Curve Accel/Decel start
side]
0~
100
40 %
H18
[S-Curve Accel/Decel end
side]
40 %

Accel/Decel pattern is settable at F2 and F3.
 Linear: This is a general pattern for constant torque applications.
 S-curve: This curve allows the motor to accelerate and decelerate smoothly.
CAUTION:
For S-curve, the actual Accel/Decel time takes longer than the time set by user.
 H17 sets the starting ratio between S-curve and Linear in 1/2 of Accel/Decel Ref. Frequency. For
smooth Accel/Decel starting, increase H17 to extend S-curve ratio.
 H18 sets the ending ratio between S-curve and Linear in 1/2 of Accel/Decel Ref. Frequency. For
smooth and accurate speed arrival and stopping, increase H18 to extend S-curve ratio.
