SATO CL4NX - Page 572

572

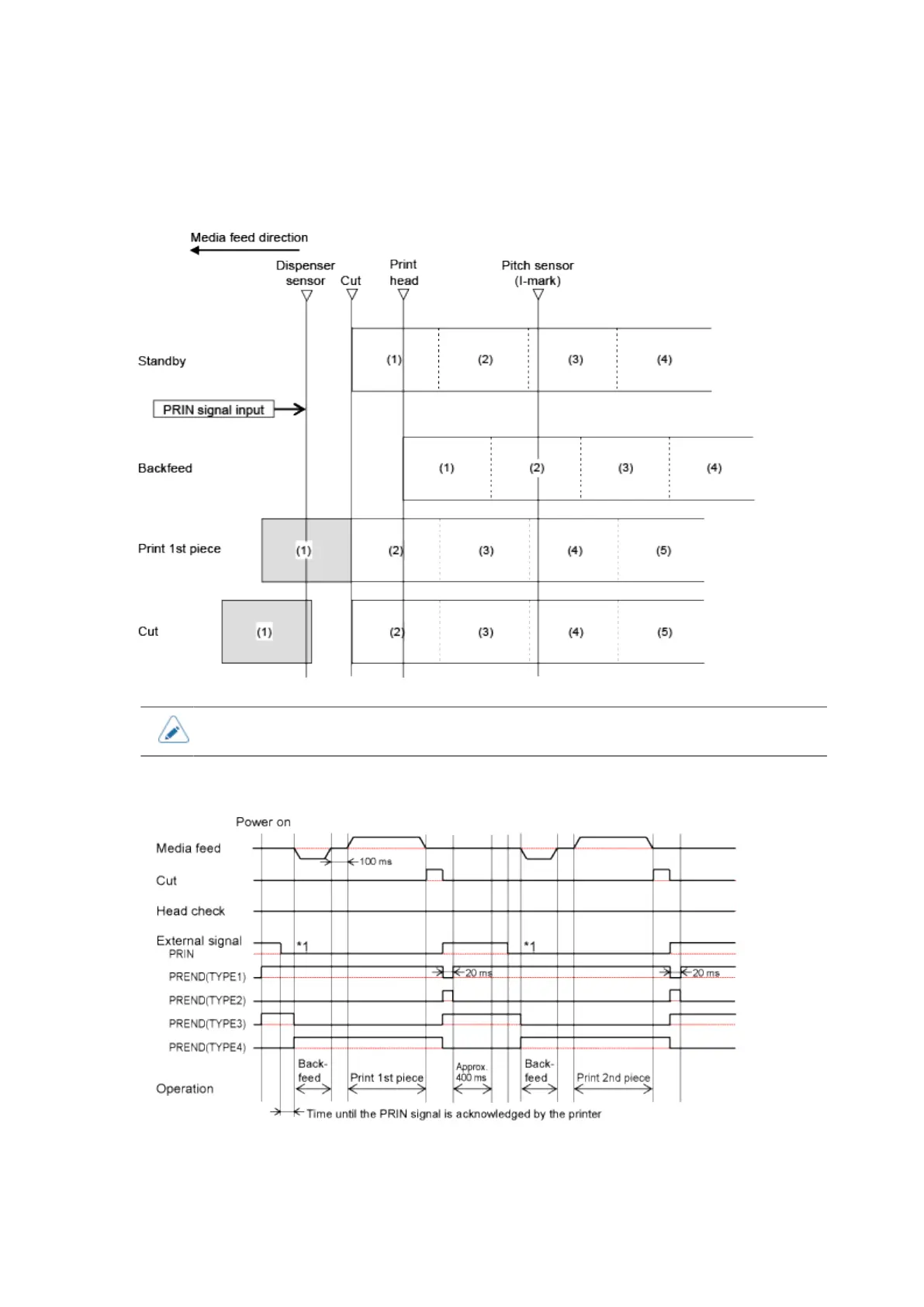

Operation 41: Linerless Mode, Backfeed Before Printing, and with Pulse Input (Head
Check Disabled) (CL4NX only)
Operation
• The figure above shows the reference position when the I-mark sensor is used.
Timing Chart
*1 Keep the PRIN signal until the PREND signal is outputted.
