SBC PCD1.Room - Digital Inputs (Terminal Block X1)

Hardware Manual PCD1.M2110R1 │ Document 27-619 │ Version ENG 04 │ 2018-08-20
Saia-Burgess Controls AG
On-board│DigitalInputs
Inputs/Outputs (I/O)
4-3
4
4.1.2 DigitalInputs(TerminalBlockX1)
Number of inputs 4, source operation, electrically connected
Input voltage Typ. 24 VDC (15…30 VDC)
Input current Typ. 3.6 mA at 24 VDC
Input delay Typ. 3 ms
Surge protection No
LED No
Terminals Plug-in screw terminal block
11 12 13 14 15 16 17 18 19
10
9 8 7 6 5 4 3 2 1
0
I2 I3 I1 I0
O0 O2 O3 O1 IO5 IO4 IO6 IO7
X0X1
U ext.
GND
IX0 IX1 AI0 AI1 -
+
-
24 VDC
3.6 mA
In3
digital
inputs
PWO or
O8
The terminals No. 15 and No. 16 can be used as an input or as an interrupt (see
Section 4.1.6).
Int1
11 12 13 14 15 16 17 18 19
10
9 8 7 6 5 4 3 2 1
0
I2 I3 I1 I0
O0 O2 O3 O1 IO5 IO4 IO6 IO7
X0X1
U ext.
GND
IX0 IX1 AI0 AI1 -
+
-
24 V CC
0 V CC

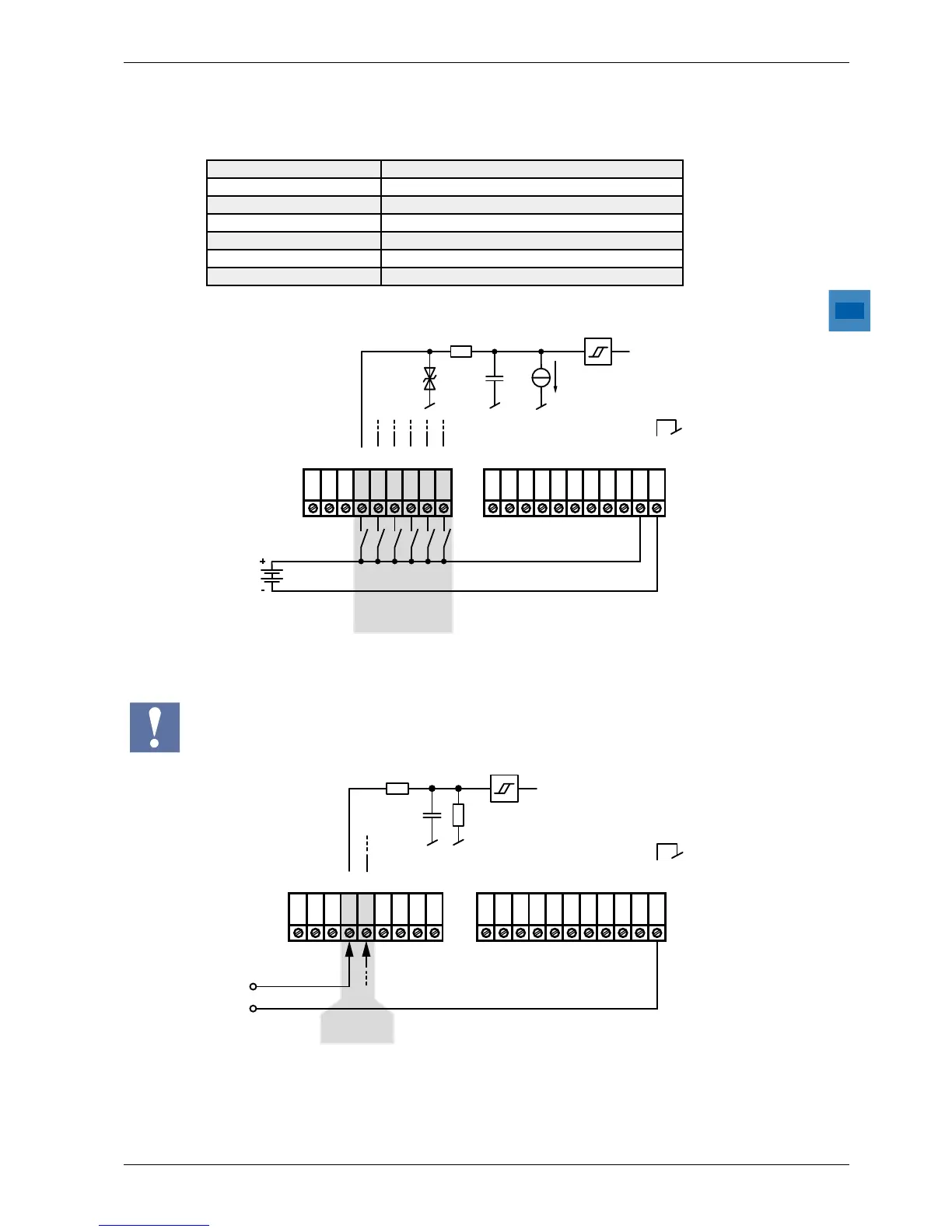

Input signals (always source operation): H = 15...30 V
L = - 30...+ 5 V or unconnected
interrupt
inputs
