SBC PCD1.Room - PCD7.F180 S Serial Interface Module Belimo MP-Bus

Hardware Manual PCD1.M2110R1 │ Document 27-619 │ Version ENG 04 │ 2018-08-20
Saia-Burgess Controls AG Communications Interfaces
6
6-10
On-board│Port#1│SlotA/Belimo

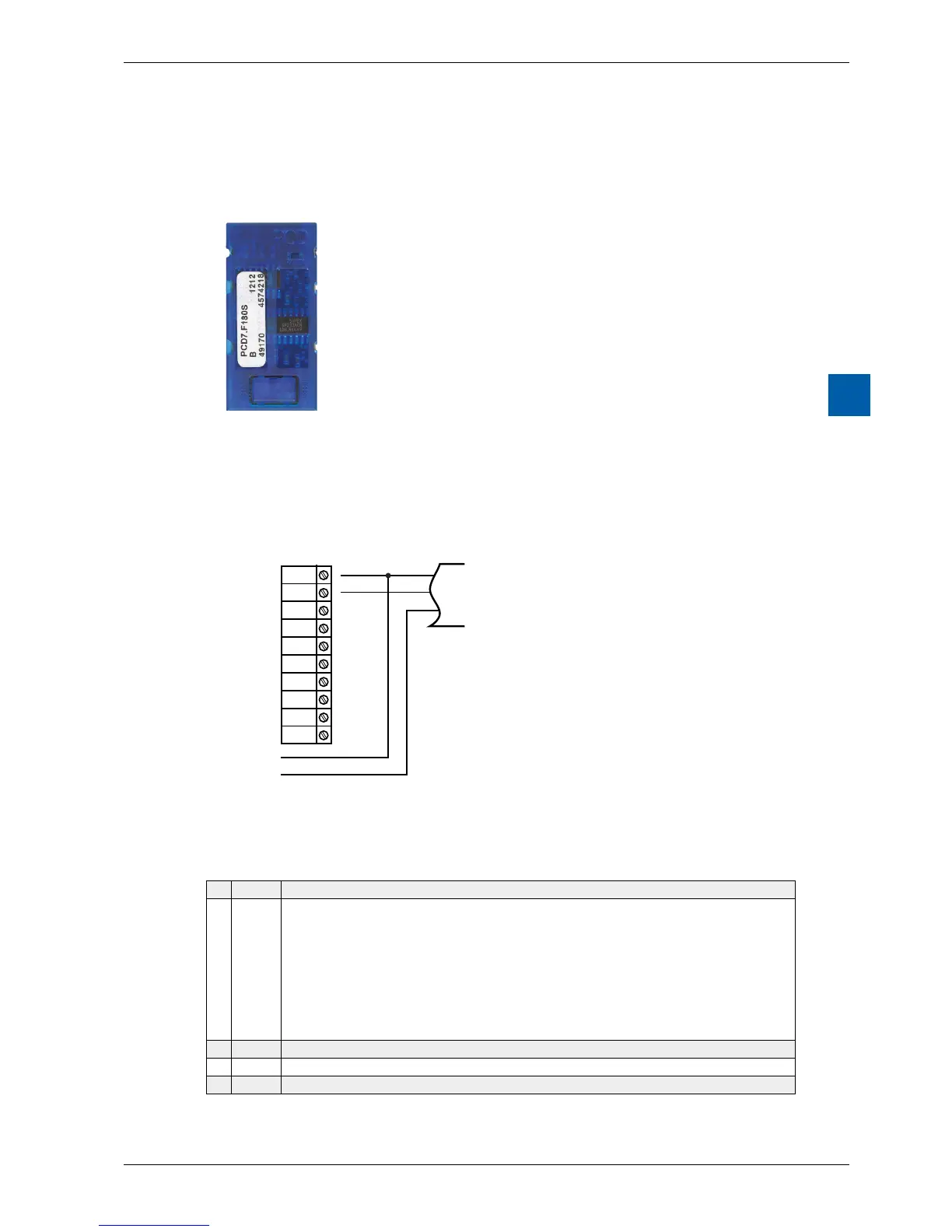

6.1.4.4 PCD7.F180SSerialInterfaceModuleBelimoMP-Bus
Up to 8 actuators and sensors can be connected.
PCD7.F180S
Cabling PCD1.M2_ :
Belimo
Bus cable
PCD1.M2_
Terminal Block
X2
24 VDC
MP
´MFT´
PGND
PGND
´IN´
GND
20
21
22
23
24
25
26
27
28
29
Cabling MP-Bus device
20 PGND Earth connection, MP string
21 MP Multi Point
The MP bus is the Belimo master-slave bus. Up to 8 slaves can be attached to one
master device.
They are:
- MFT(2)apdrives
- MFT(2) valve drives
- MFTreprotectionapdrives
- VAV compact controller NMV-D2M
22 “MFT“ MFT programming device (MP bus internal)
23 “IN“ MFTprogrammingdevicerecognition(input10kΩ,Z5V1)
25 PGND Earth connection, MFT programming unit
