SBC PCD1.Room - Digital Outputs (Terminal Block X0)

Hardware Manual PCD1.M2110R1 │ Document 27-619 │ Version ENG 04 │ 2018-08-20
Saia-Burgess Controls AG
On-board│DigitalOutputs
Inputs/Outputs (I/O)
4-4
4

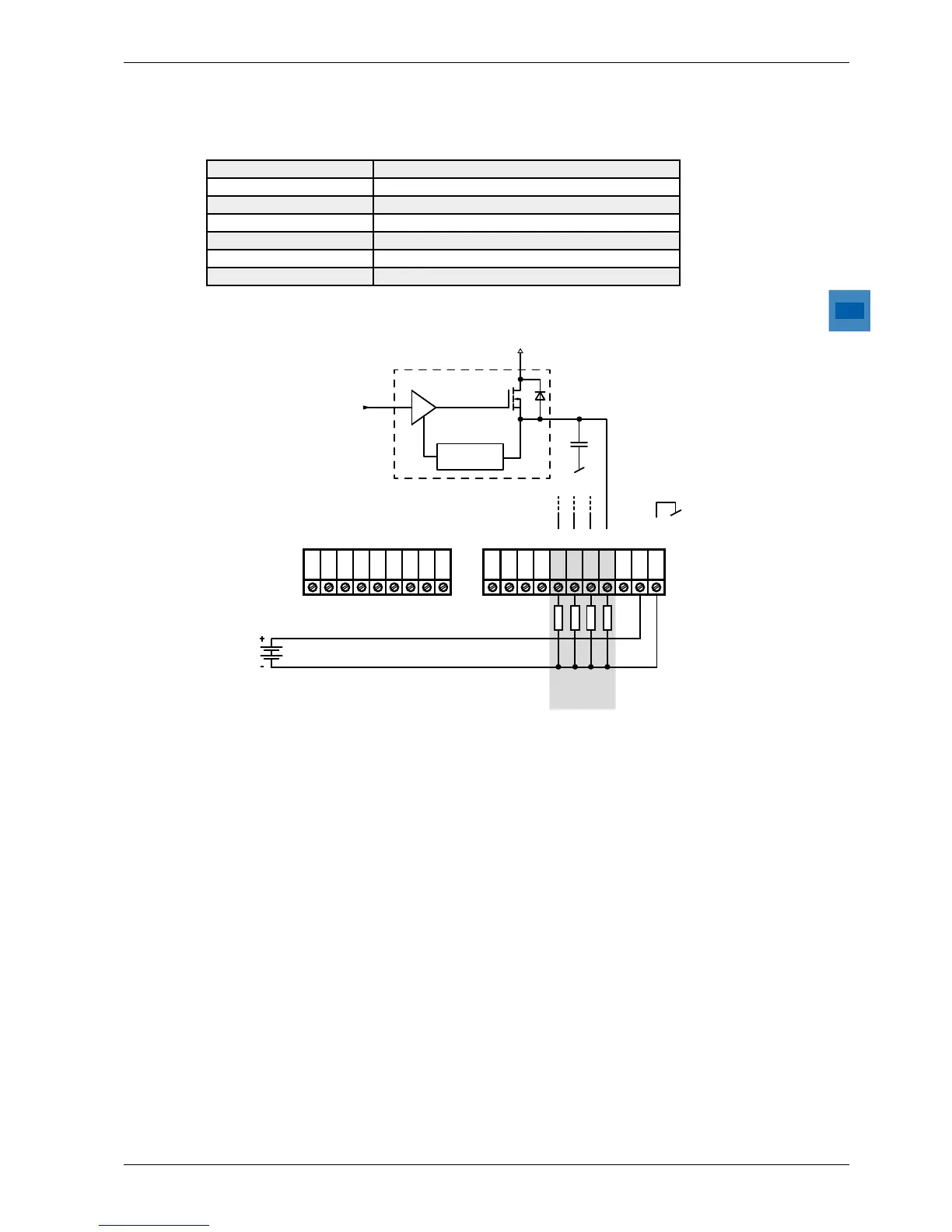

4.1.3 DigitalOutputs(TerminalBlockX0)
Number of outputs 4
Voltage range 24 VDC (12...32 VDC) smoothed
Output current Max. 0.5 A
Output delay typ. 50 µs, max 100 µs at Ohmic load
Contact protection Transistors
LEDs No
Connections Plug-in screw terminal block
11 12 13 14 15 16 17 18 19
10
9 8 7 6 5 4 3 2 1
0
Uext
Out0
I2 I3 I1 I0
O0 O2 O3 O1 IO5 IO4 IO6 IO7
X0X1
Uext.
GND
IX0 IX1 AI0 AI1 -
+
-
24 VDC
current Limit
PWO or
O8
Digital
outputs
