Modem on Slot IO0
6.3 Modem Communication

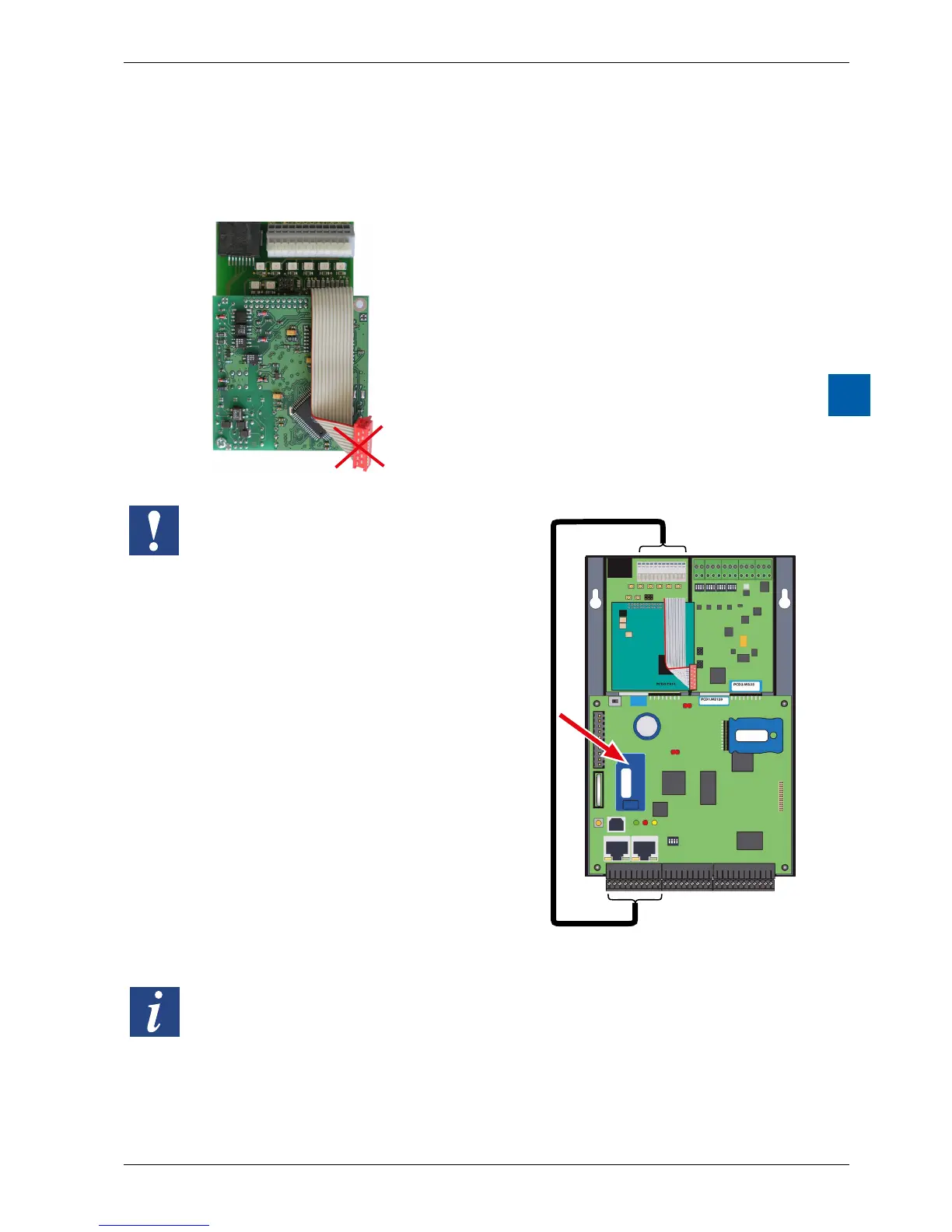

Modem module for slot IO0
(see “RS-232” designation in the following illustration)
RS-232
TTL
PCD2.T814:
Analogue modem 33.6 kbps
(RS-232 and TTL interface)
PCD2.T851:
Digital modem ISDN-TA
(RS-232 and TTL interface)
The IO module modem PCD7.T8xx cannot
be connected to the PCD1.M2_ through the
TTLinterface(redatribbonconnector).The
cable is too short for this.
The RS-232 terminal block of the modem,
whose terminals are connected to a free RS-
232 port (modem-compatible!) represents
a solution.
“SlotA”ofthePCD1.M2_,ttedwithan
interface module PCD7.F121S is best suited
for this purpose.
PCD7.F121S
Slot 1Slot 0
For installation details, see manual 26-771 “PCD2.T8xx Modem Modules”
An alternative is the use of external modems, such as the Saia Q.MS716-KS1 at
the serial port “Slot A” with interface module PCD7.F121S.
