SBC PCD1.Room - Port #1 (Slot A)

Hardware Manual PCD1.M2110R1 │ Document 27-619 │ Version ENG 04 │ 2018-08-20
Saia-Burgess Controls AG Communications Interfaces
6
6-5
On-board│Port#1│SlotA
6.1.4 Port#1(SlotA)
Only PCD7.F1xxs modules are supported on the PCD1.M2_.
Slot A
Terminal block X2 (connection terminals for Slot A)
Older interface modules without “S” at the end of the product designation
(e.g. PCD7.F110) are not compatible with PCD1.M2_.

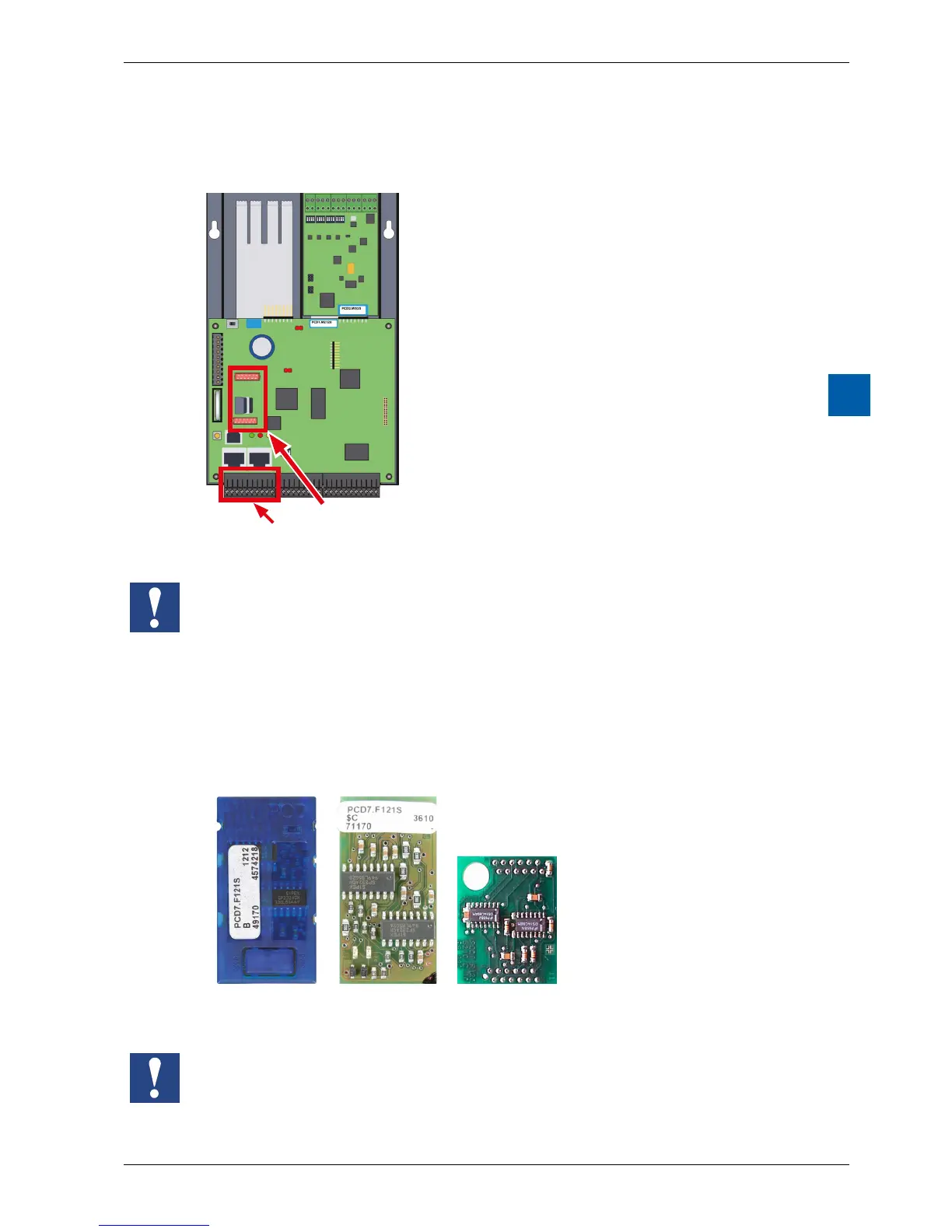

Overview of the interface types:
PCD7.F1xxS
withhousing,
2012 or later
PCD7.F1xxS
previousdesign
PCD7.F1xx not
compatible with
PCD1.M2_
Important: PCD7.F1xxS devices with hardware version A are not compatible with
earlier PCDs (PCD1.M1xx/PCD2.M1xx/PCD2.M48x/PCS1) from NT- based PCD
systems.
