Hardware Manual PCD1.M2110R1 │ Document 27-619 │ Version ENG 04 │ 2018-08-20
Saia-Burgess Controls AG
RunningthePG5DeviceCongurator
Conguration (Device Congurator)
7-4
7

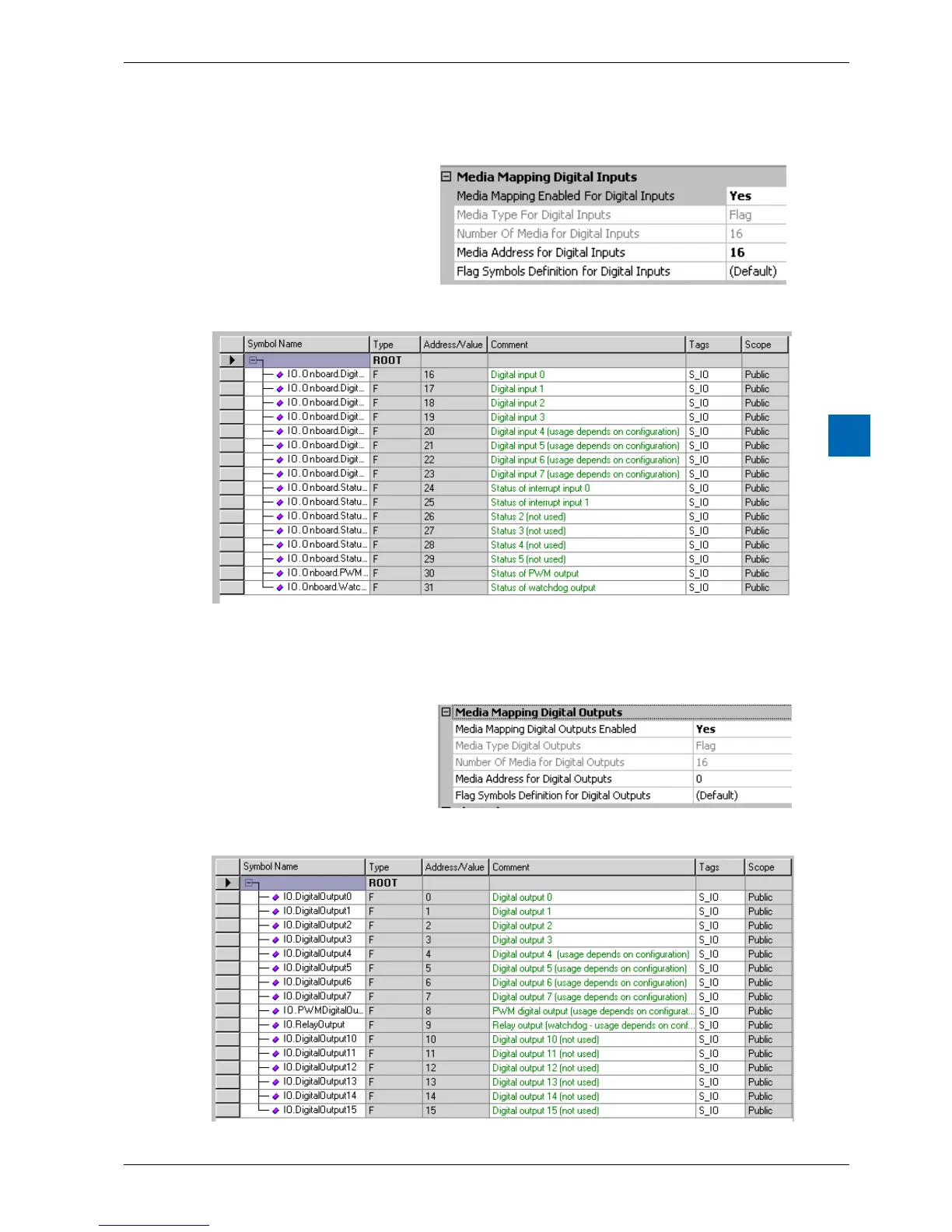

7.3.2 MediaMappingforDigitalInputsOn-Board
The media mapping of digital
inputsuses16ags
Mapping table for digital inputs
7.3.3 MediaMappingforDigitalOutputsOn-Board
The media mapping of digital
outputsuses16ags
Mapping table for digital outputs
