4.1.5 PWM Output (Pulsewidthmodulation)(TerminalBlockX0)
Termianl no. 2 on Terminal Block X0 can be used either as a normal, digital output
orasaPWMoutput.CongurationtakesplaceintheDeviceCongurator.

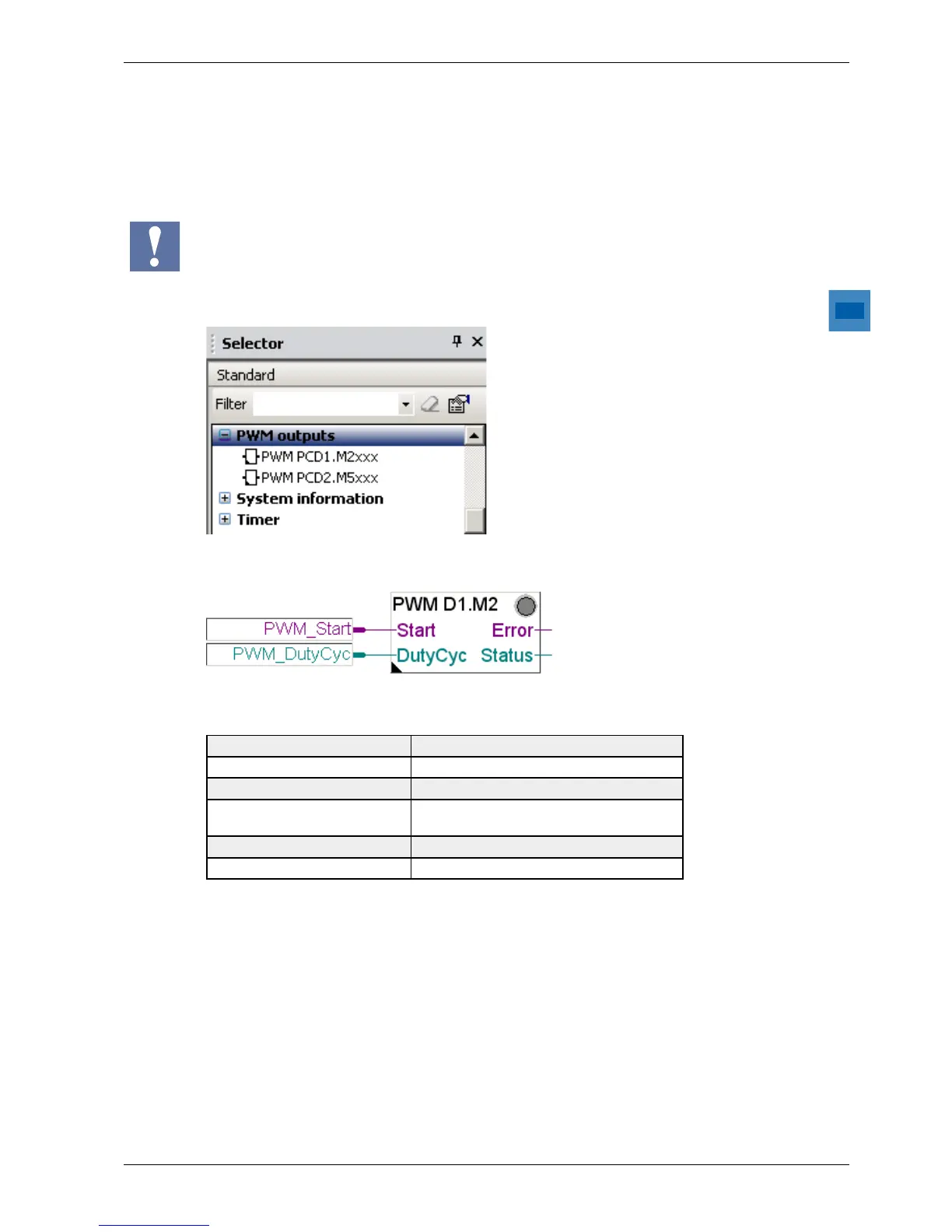

There is an FBox for the using of the PWM output.
Number of PWM outputs: 1
Voltage range 24 VDC (12… 32 VDC) smoothed
Output current: Max. 0.2 A
Adjustable frequencies 1 Hz, 4 Hz, 15 Hz, 30 Hz, 61 Hz, 122 Hz,
244 Hz, 488 Hz, 975 Hz, 1950 Hz
Duty cycle range 0-100 %
Terminal: Plug-in screw terminal block
Maximum operating frequency is 2 kHz (rise and fall times are 20 μs).
