Serial Interfaces on Slot IO0
6.2.2 Communications Port with PCD2.F2xxx Modules
TheslotIO0ofthePCD1.M2_canalsobettedwiththeinterfacemodules
PCD2.F2xxx. The slot can be reached with the following port addresses via
communications FBoxes (and/or AWL commands):
Port 100
Port 101
Slot
IO0
Slot
IO1

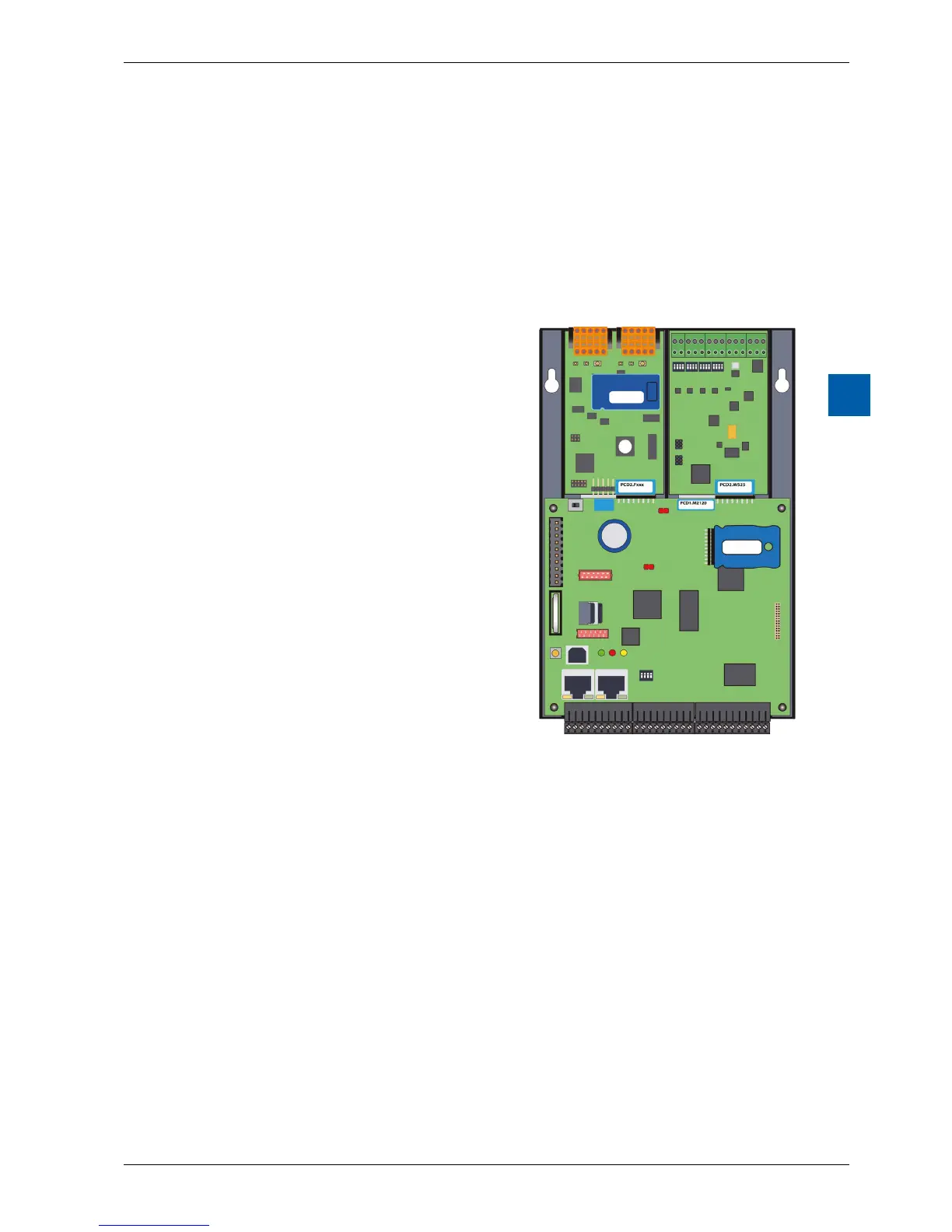

IO slot 0 with PCD2.F2xxx Module
Port 100 for the x.0 port
Port 101 for the x.1 port
