SBC PCD1.Room - Port #9 Ethernet

Hardware Manual PCD1.M2110R1 │ Document 27-619 │ Version ENG 04 │ 2018-08-20
Saia-Burgess Controls AG Communications Interfaces
6
6-3
On-board│Port#9Ethernet
6.1.2 Port #9 Ethernet
A new 10/100 Mbits switch, which automatically adapts to the two speeds, is used
for these Ethernet connections. Both sockets can be used independently of one
another.

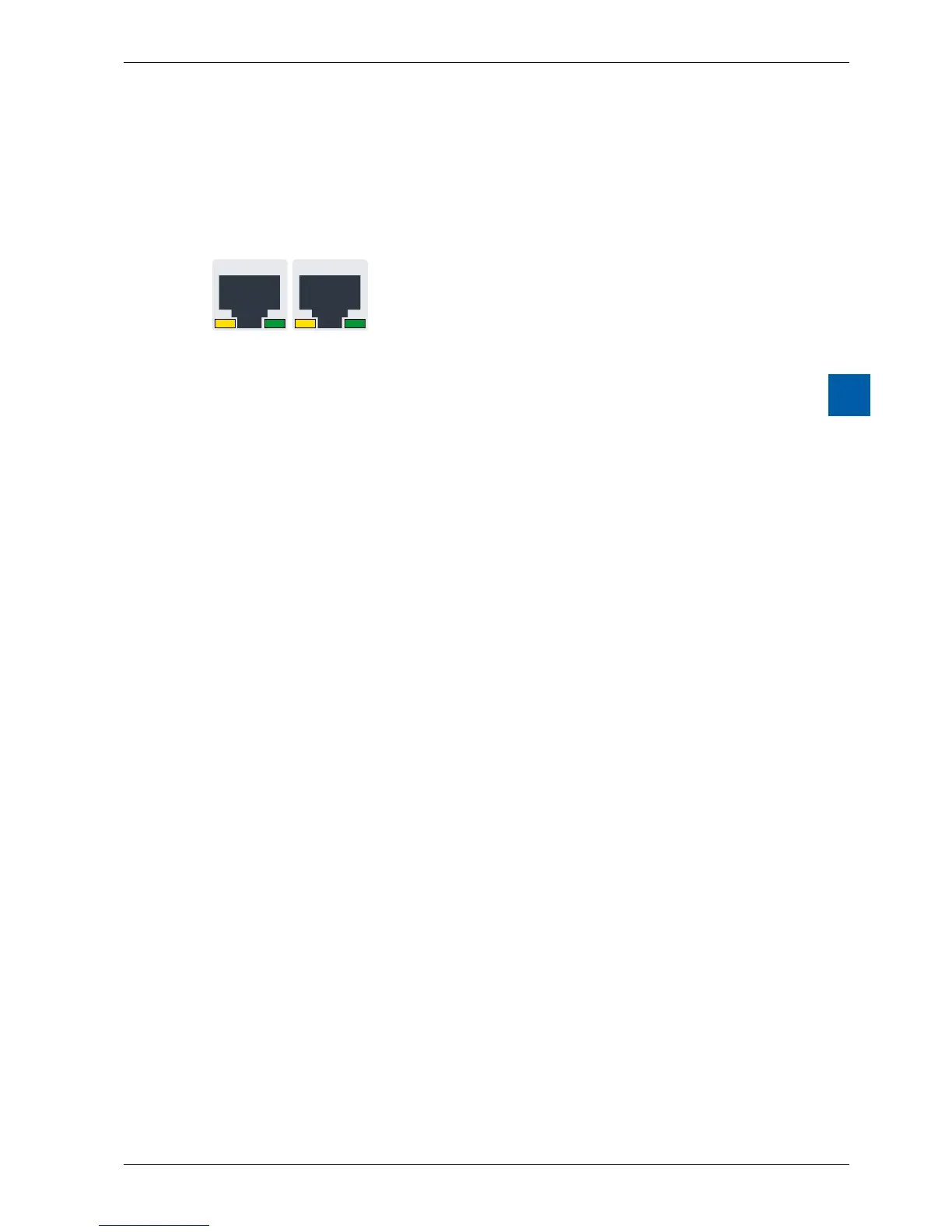

ETH1 ETH2
Function: 2 port switch
Jacktype: 2 RJ45s vertically positioned, metal housing, 2 LEDs each
MeaningoftheLEDsperjack:
Orange LED Link (connection) and activity
Green LED SpeedO󰀨=10Mbits/On=100Mbits
