SBC PCD1.Room - Plug-In I;O Module for Slot a; Analogue Outputs

Hardware Manual PCD1.M2110R1 │ Document 27-619 │ Version ENG 04 │ 2018-08-20
Saia-Burgess Controls AG
Plug-In I/O Module for slot A
Inputs/Outputs (I/O)
4-13
4
4.2 Plug-InI/OModuleforslotA
4.2.1 Analogueoutputs

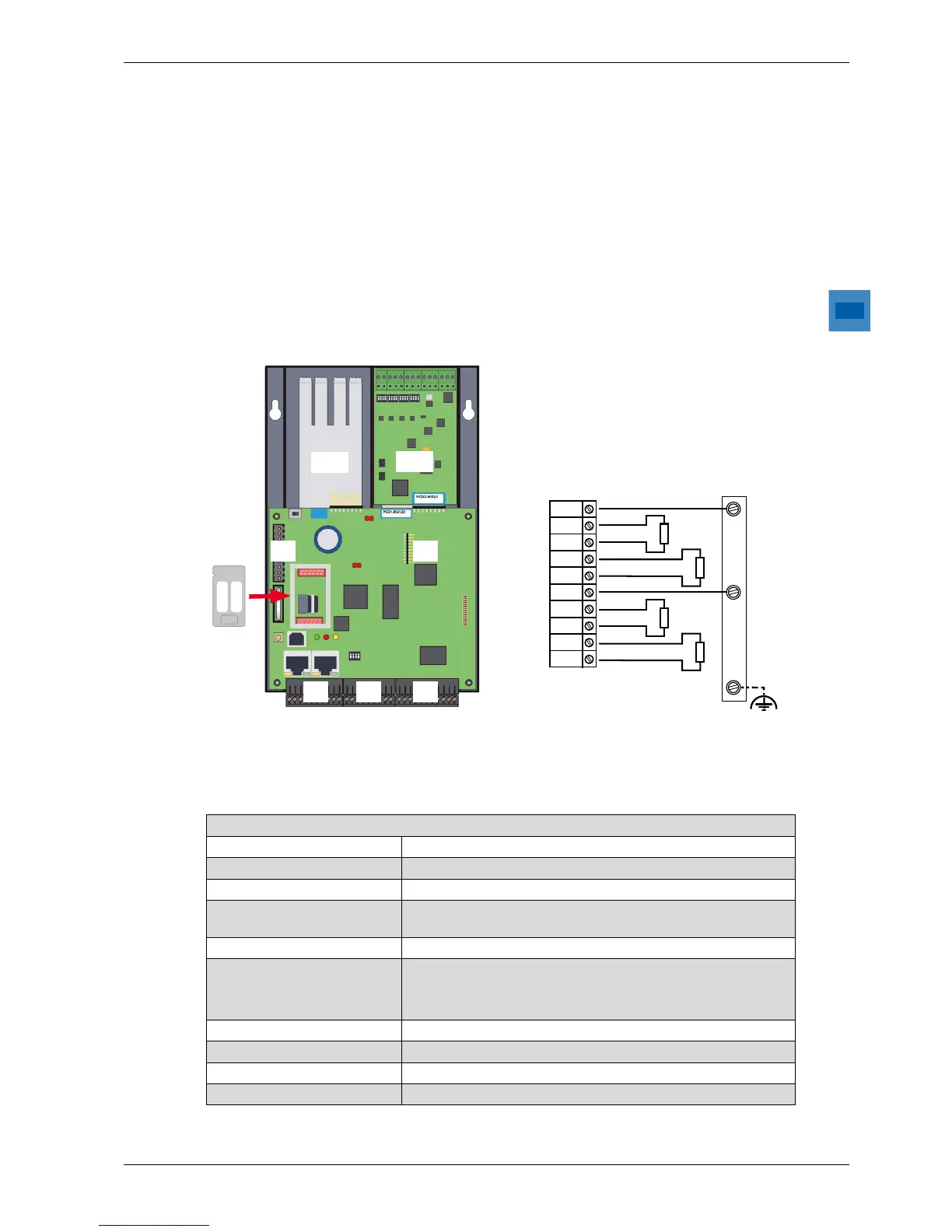

PCD7.W6004analogueoutputswith12bitsresolution
This analogue outputs module (0 to +10 V) can be plugged on the socket A of a
PCD1.M2_ / .M0_ instead of a communication interface.
ThecongurationoftheoutputstakesplaceintheDeviceConguratorlikeon-
board I/O’s
X3
IO0
IO1
X2 X1 X0
PCD7.W600
29 .. 20
X3
20
21
22
23
24
25
26
27
28
29
A0 +
A0 -
PGND
A1 +
A1 -
A2 +
A2 -
PGND
A3 +
A3 -
Terminal Block
X2
Earthing bar
Generalspecications
Technical data
Module compatibility PCD1.M2xxx, PCD1.M0160E0, PCD1.M2110R1
Module current consumption V+ 25 mA / +5 V 30 mA
Number of outputs 4
Terminals 1 plug-in screw terminal block, 10-pole, 3.5 mm for wiring
up to 1 mm
2
Isolation No isolation between channels and/or PCD
Output signal range &
resolution
With D/A converter 12 bits
Nominal range: 0…+10 V
Resolution2.6mVofleastsignicantbit(LSB)
Monotonicity Yes
Output impedance (max.) 0.7Ω
Allowable load resistance ≥3kΩ
Allowable capacitive load ≤20nF
