10.2.0. Pick-up Position SENSOR

There is Pick-up Roller position sensor in SB-3000. After counting, this sensor makes sure that the

machine is ready for next counting.

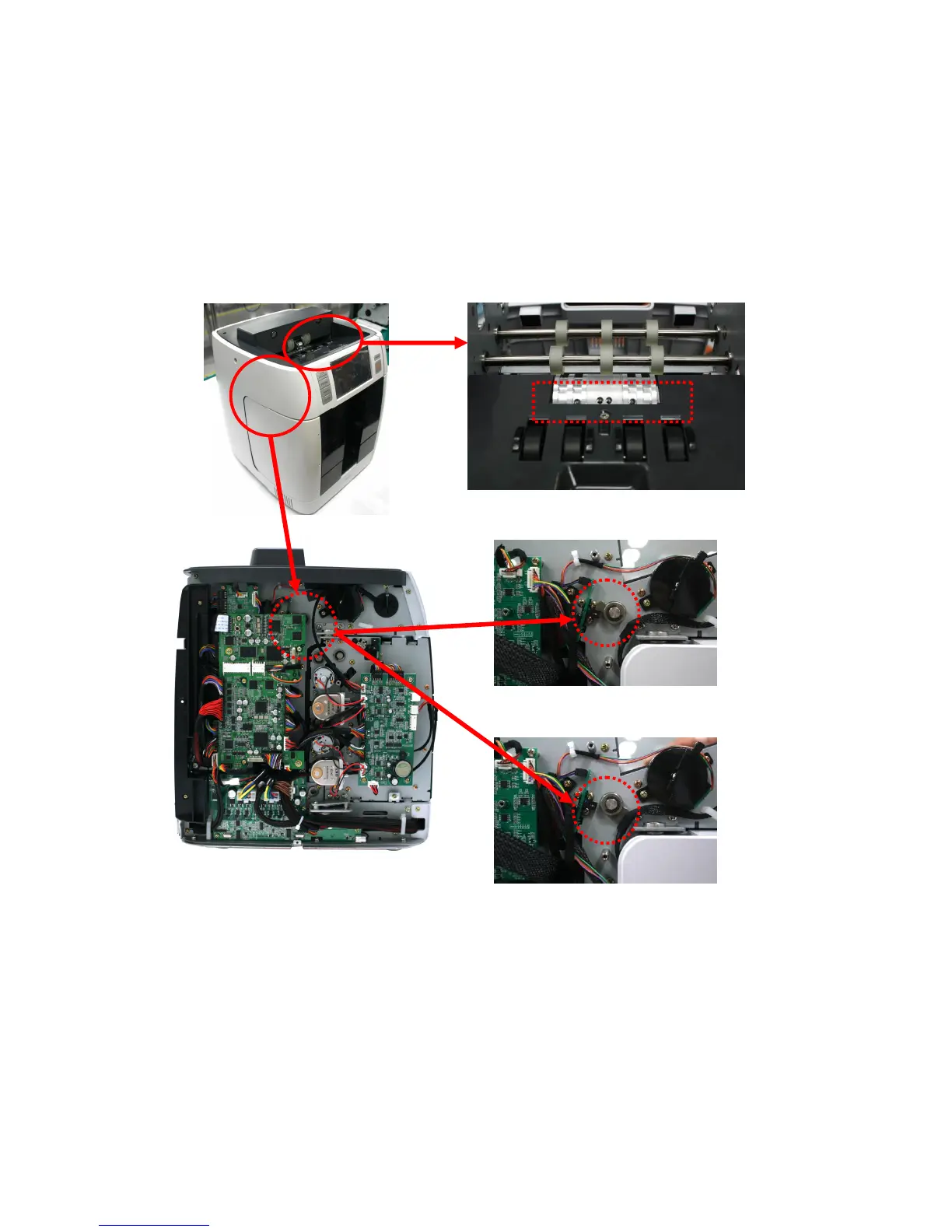

As you can see the above picture, When the Pick-up roller position is like (①), Pick-up Position

sensor should be in the position (②). If Pick-up position sensor is like (③), you have to adjust the

Pick-up position sensor by L Wrench

①

②

③
