4.2.0. HOW TO ADJUST THE BILL GUIDE HOPPER
Before putting the banknotes into the Hopper, User needs to adjust the Bill Guide. Users should make sure
that there is enough room on the sides for the banknotes to be pulled in the Hopper easily (banknote
length + approximately 5mm)
4.3.0. How to place banknotes into the Hopper
It is very important to place the banknotes on the hopper correctly because recognition performance of the
banknotes is highly affected by the arrangement of the banknotes. And the number of the rejected notes

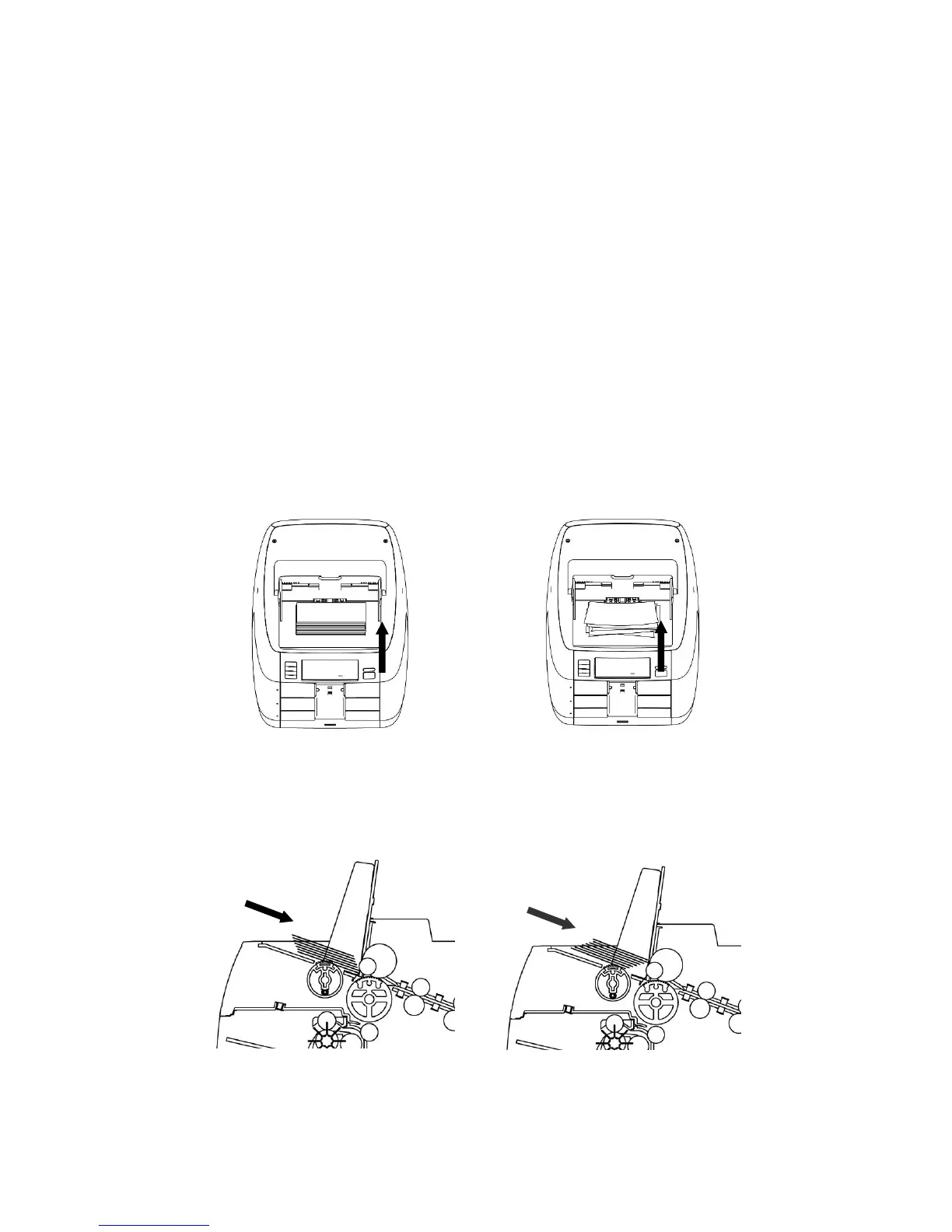

can be increased when they are not arranged and placed properly. Refer to the pictures for the correct
placement of the banknotes.
(FIG 4-02) (FIG 4-03)
(FIG 4-04) (FIG 4-05)
(Good) (No good)
(Good) (No good)
