SBM SB-3000 - Timing between Pick-Up and Adf Roller

109

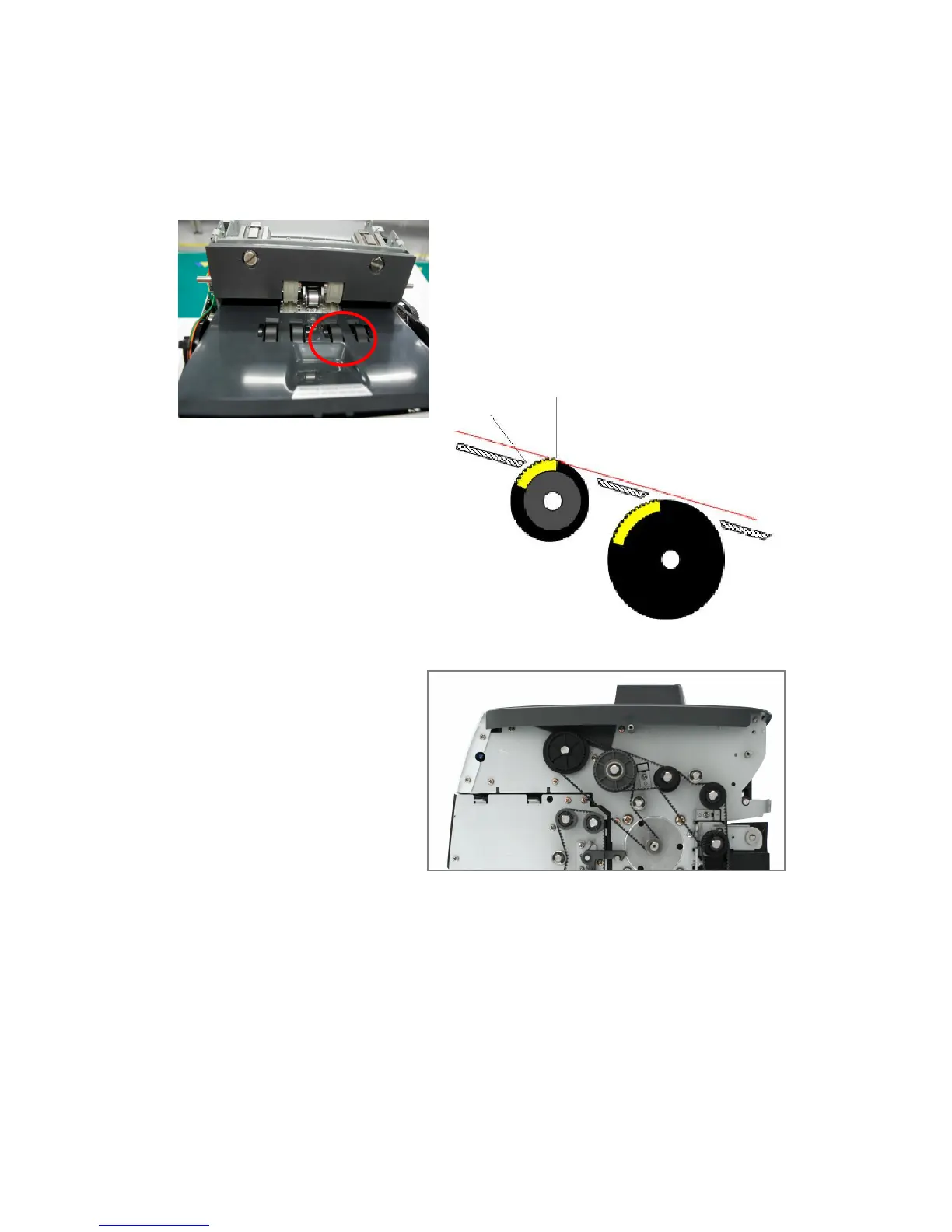

10.4.0. Timing between ADF and Pick-up Roller
■ set the Timing belt (S3M 345)
[1] Take off timing belt (S3M 355)
[2] Turn the Pick-up roller and ADF roller
till the teeth position of two rollers is same
as the above picture.
[3] Hang the timing belt (S3M 355) on 4
pulleys as shown on the right picture.
[4] For more detailed assembling and disassembling, refer to the Chapter “Pulley and Timing Belt”
Pick-up Roller
ADF Roller
2~4 Teeth
