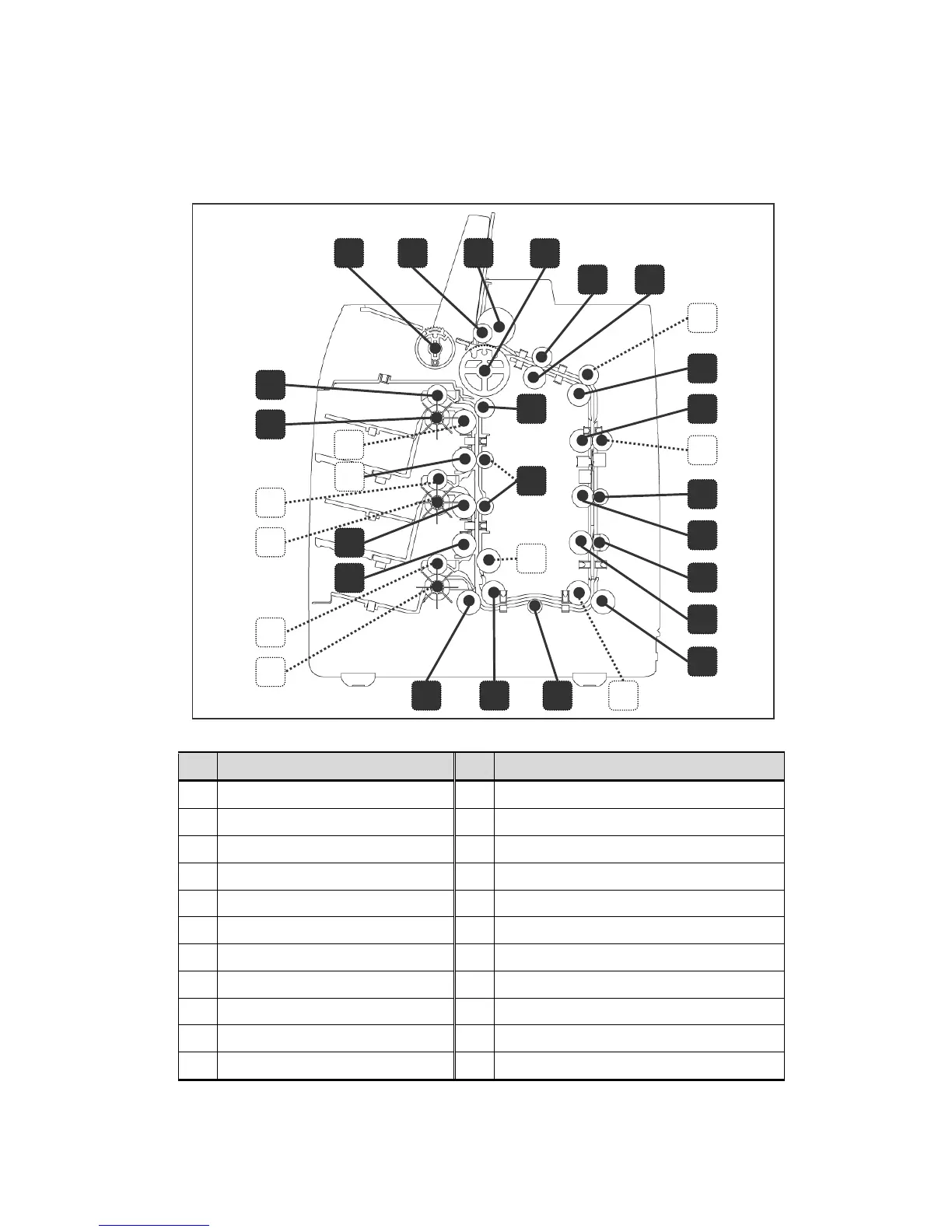

2.3.2. ROLLERS
No
Part Name No
Part Name
1 ROLLER_PICKUP 12
ROLLER_FEED_MG
2 ROLLER_PRESS 13
CROWN_EXIT_ROLLER
3 ROLLER_SEPARATE 14
CROWN_TRANSFER_ROLLER_PINCH_S
4 ROLLER_ADF 15
CROWN_TRANSFER_ROLLER_PINCH
5 ROLLER_PINCH_FEED 16
CROWN_TRANSFER_ROLLER
6 FEED_ROLLER_A 17
CROWN_EXIT_ROLLER
7 FEED_ROLLER_B 18
CROWN_EXIT_ROLLER_PINCH_A
8 FEED_ROLLER 19
ROLLER_PIHCN_MR
9 MOUDLE_ROLLER_T 20
CROWN_EXIT_ROLLER_PINCH_1
10
ROLLER_DETECT_TAPE_S3000 21
ROLLER_FEED_OUTLET
11
ROLLER_PINCH_MR 22
ROLLER_PINCH_TRANS_POCKET
1
2
3
4
5
6
5
7
8
5
9
10
11
12
13
13
13
14
16
15
17
18
19
18
20
21
22
21
22
21
22
17
