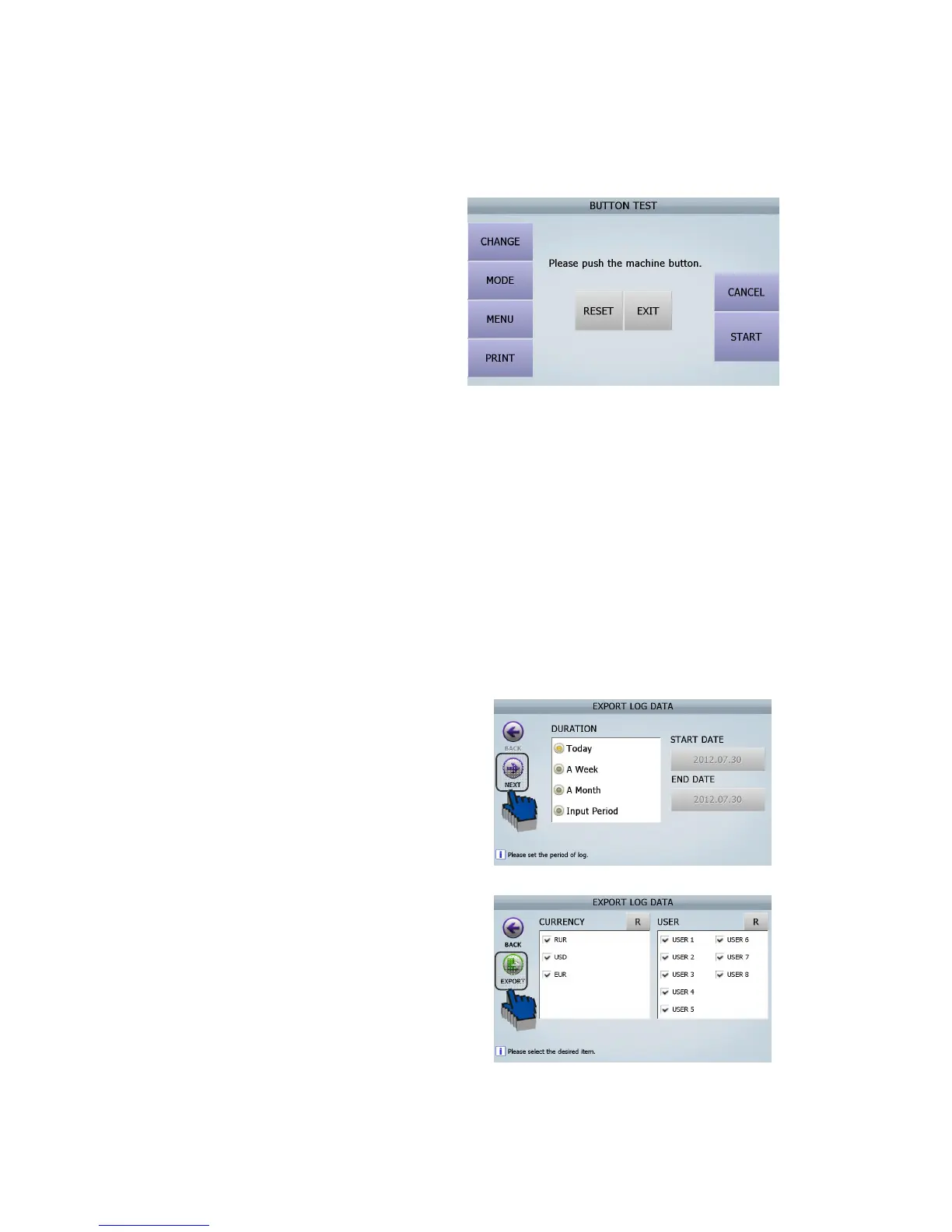

■Key test

: You can test keys on Control panel.

8.4.5. Log data

This mode supplies all Log DATA (Counting result Detail in Currency / Count Detail in User / Error Number

/ Upgrade Number / Calibration Number / ETC ) and provide exporting function to EXCEL file.

The procedure of Log Data Exporting is here below,

[1] Insert USB Memory Stick into the USB Port of SB-3000.

[2] Select ‘Export log data’ in this menu

(ADIMN MENU _ Log Data/ Export log Data)

[3] Select the Range of the Period.

[4] Touch on [Next] ICON.

[5] Select Currency and USER and Touch [Export] ICON.

(FIG 8-10)

(FIG 8-11)

(FIG 8-12)
