2.3.0. PARTS

2.3.1. SENSORS

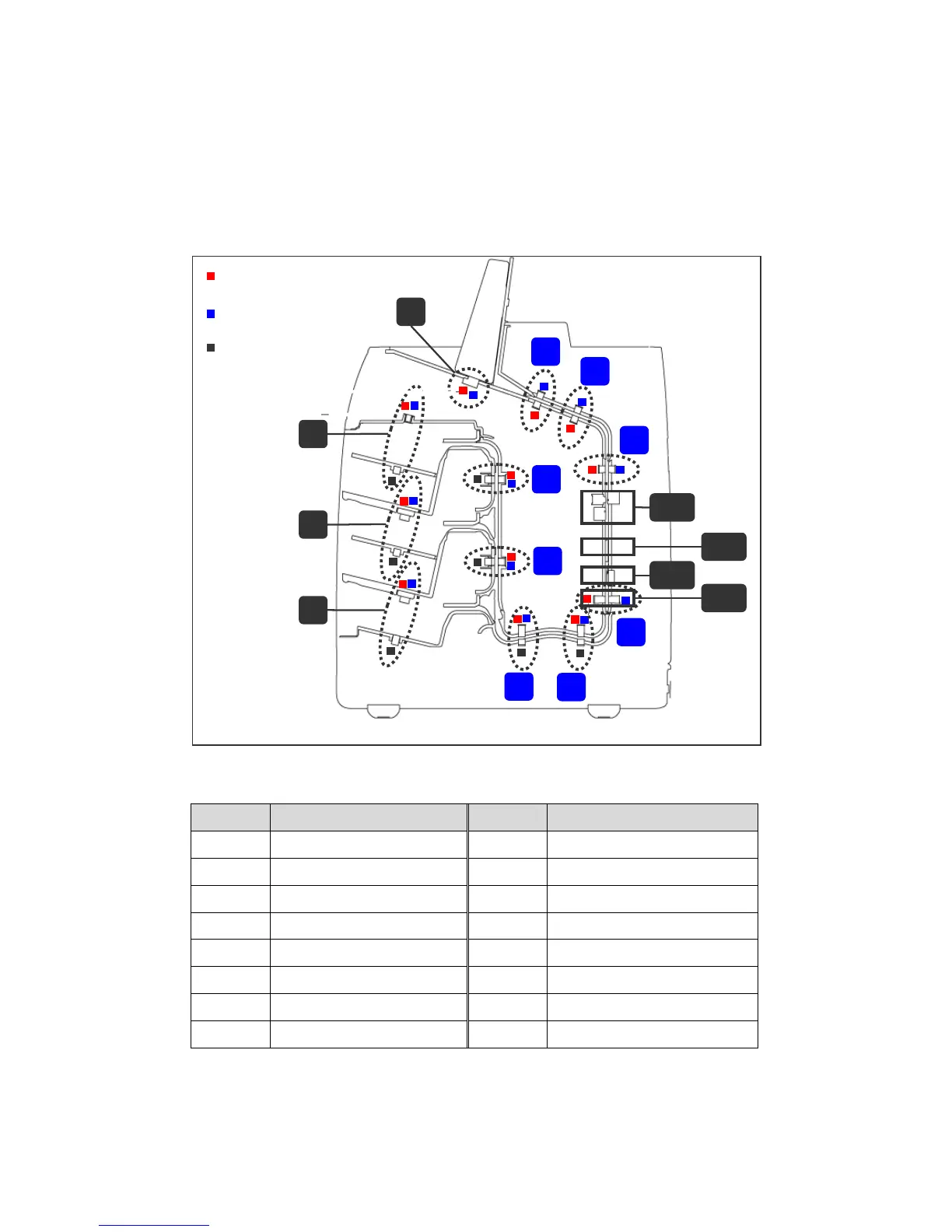

■ Positions of Sensors

No Description No Description

① RP1 sensors, JAM1 position ⑨-1 CIS & Optional CIS

② RP2 sensors, JAM2 position ⑨-2 Tape Detection Module

③ RP3 sensors, JAM3 position ⑨-3 MR sensors

④ RP4 sensors, JAM4 position ⑨-4 UV sensors

⑤ RP5 sensors, JAM5 position ⑩ Hopper sensor

⑥ RP6 sensors, JAM6 position ⑪ Stacker1 sensor

⑦ RP7 sensors, JAM7 position ⑫ Stacker2 sensor

⑧ RP8 sensors, JAM8 position ⑬ Reject pocket sensor

①

②

③

④

⑤

⑥

⑦

⑧

⑩

⑫

⑬

⑨-1

⑨-2

⑨-3

⑨-4

⑪

T: TRN (Transmitter)

R: RCV (Receiver)

P: Prism
