82

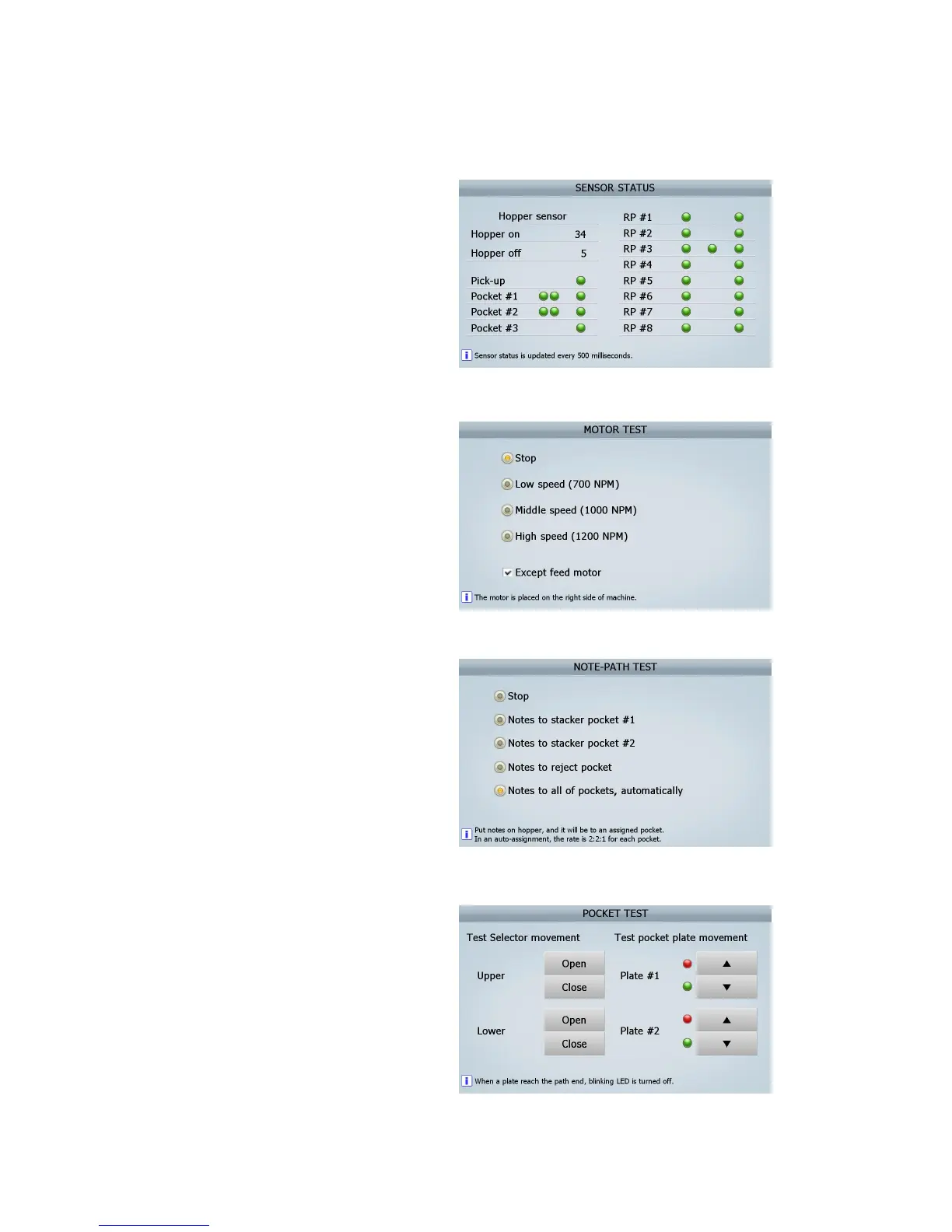

■ Sensor status report
: This report shows the sensor status value by
every 500ms.
■ Motor test
: You can test motor is working and the
speed.
■ Note-path test
: If you put some notes on the hopper, you
can see the notes are distributed as the
choice. If you select automatic test, the
distribution will be 2:2:1 portion.
* You can check Solenoid is working or not.
■ Pocket test
: You can check Selector movement and
Pocket plate movement. If the plate moves
to the end, LED will become red.
(FIG 8-06)
(FIG 8-07)
(FIG 8-08)
(FIG 8-09)
