[5] Press [START/STOP] Key

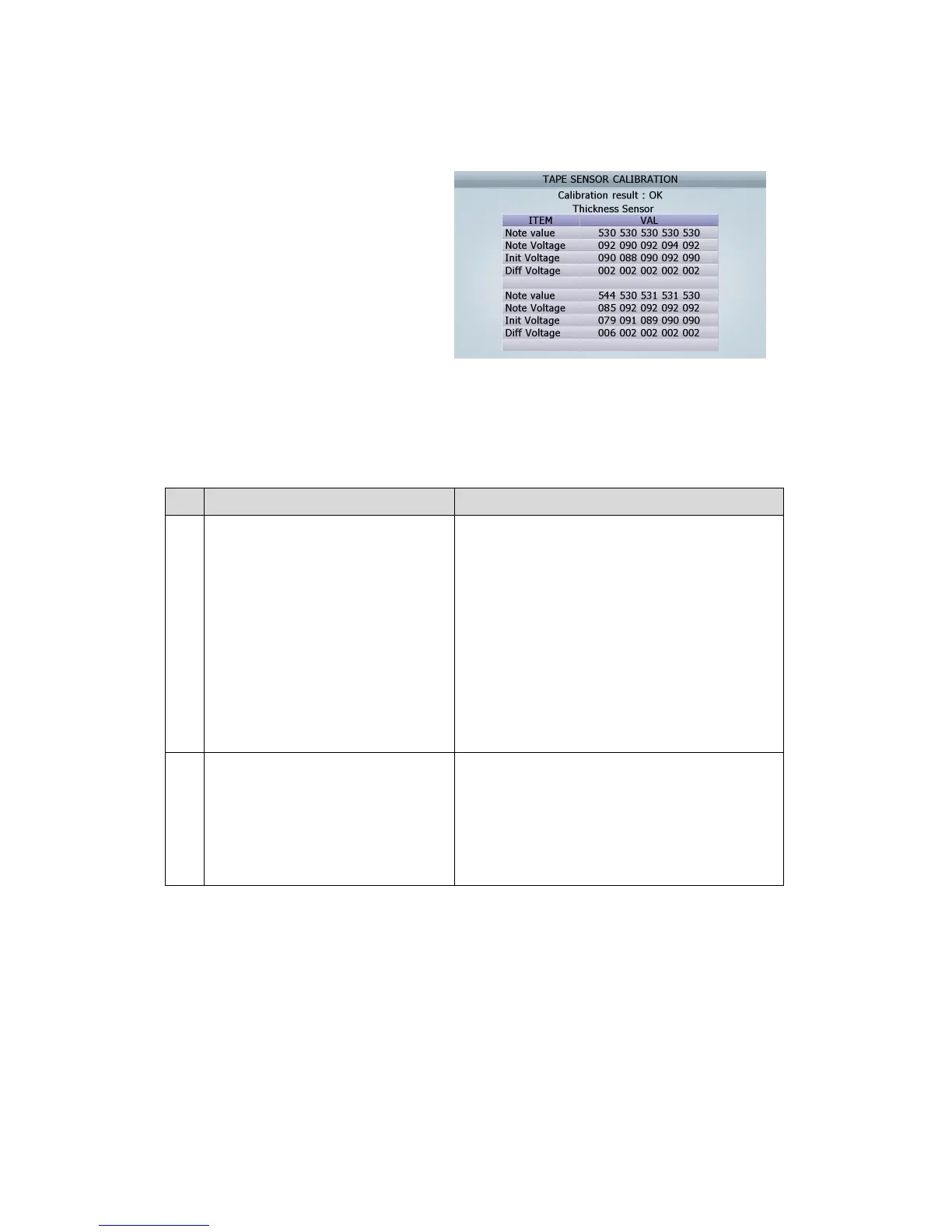

[6] Check if TAPE Calibration result is “OK” or
“NG”
[7] After doing calibration, Open the Rear Door B and the Rear Middle Cover, and then take out the sheet.
[The detail information for TAPE Calibration’s NG]
No.
The Cause expected Action to be taken
1
The standard value of TAPE
calibration is 550 (tolerance ± 20)
▶ The calibration result is verified
with the value of each channel; in
case of NG the value is reversed like
the NG display figure. Even one of 10
channels has more or less than the
standard value (550 ±20), the
calibration is NG
1. Need to clean Tape sensors
2. Check the condition of module assembly
3. Check the CAP RCV board
2 All of Diff voltage is 0
1. Check whether the calibration sheet is in place.
2. Check harness cut off or disconnected MTU board
and CAP RCV PCB or MTU board and Image
Board
3. Need to check the defect of TAPE sensor
(FIG 9-09)
To Next Page
