SCHIEBEL AB Series User Manual

Operating instructions for actuators type AB with SMARTCON control unit
OM-ENGLISH-CSC-V2.08-2019.11.07 6 Control unit

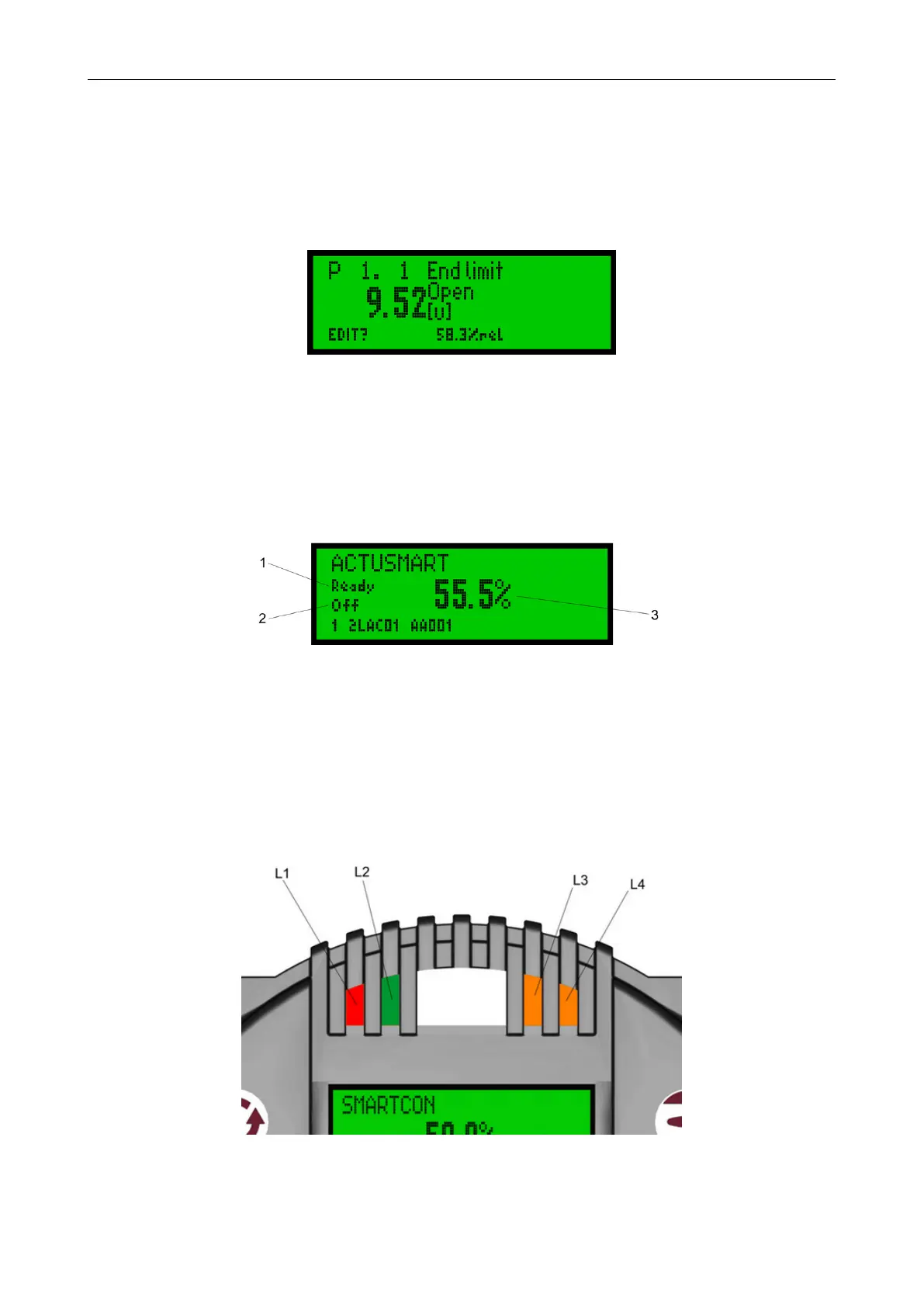

6.2 Display elements
6.2.1 Graphic display
The graphic display used in the controller allows text display in different languages.
Figure 40
During operation, the displays shows the position of the actuator as a percentage, operation mode and status.
When using the option "identification", a customer-specific label is shown at the bottom of the display (e.g.,
PPS Number).
Figure 41: 1. . . Status, 2. . . Operation mode, 3. . . Position
6.2.2 LED Display
To provide users with better status information, basic status data is displayed using 4-colour LEDs.
As the device powers up, it undertakes a self-test whereby all 4 LEDs briefly lit up simultaneously.
Figure 42
19
