OM-ENGLISH-CSC-V2.08-2019.11.07 6 Control unit

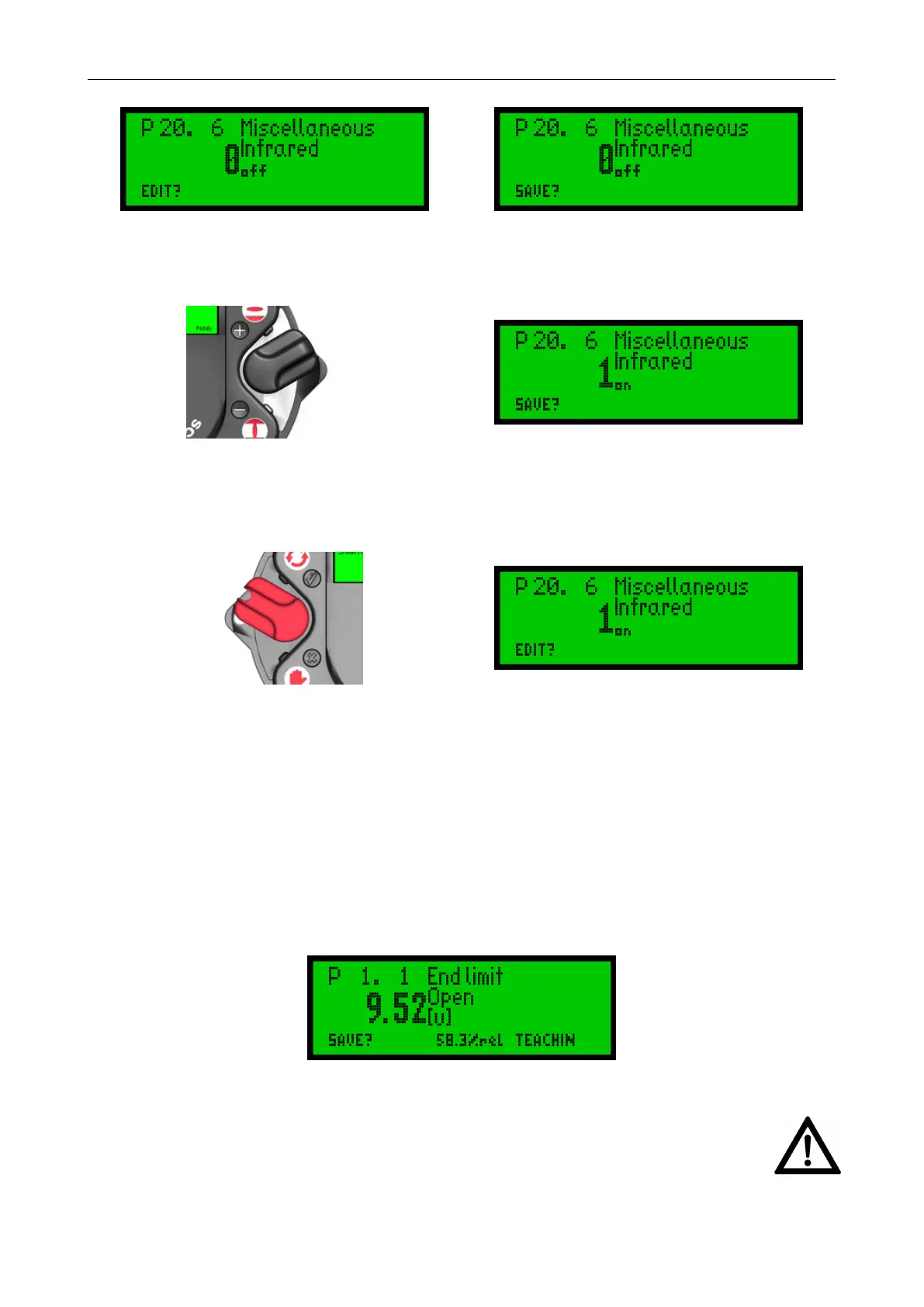

Figure 55 Figure 56
Thereafter, flip up the control switch (toward ) to change the value from 0 (off) to 1 (on)
Figure 57
Figure 58
If the value changes to 1, confirm the selection by flipping halfway up the selector switch (towards) and letting
it snap back to its neutral position (see Figure 52 til Figure 54).
Figure 59
Figure 60
This changes the bottom line of the display from "SAVE?" to "EDIT?" and the parameter is stored.
6.3.4 "TEACHIN“
Furthermore, certain parameters (end positions, intermediate positions).can be set using "TEACHIN". Thus,
their configuration is greatly simplified.
After selecting the appropriate menu item (for example: End position) and chanching the the input type from
"EDIT?" to "SAVE?", move the selector switch (red) to "manual mode" and lock it into place. As you do so, the
display will show the message "TEACHIN" and the current position value will be applied continuously to the
parameter value. In this mode, further to manual operation by hand wheel, the actuator can be motor-driven
with the control switch to the desired position. (see section 5.7.1, Figure 30, page 16)
Figure 61
CAUTION: Please note that, during motor operation, only torque monitoring remains active,
as travel adjustment will happen subsequently. Therefore, please check beforehand whether
the maximum torque has been already set.
After reaching the desired, to-be-defined position, move the selector switch back to the neutral position. Finally,
