Operating instructions for actuators type AB with SMARTCON control unit
OM-ENGLISH-CSC-V2.08-2019.11.07 2 General
2.2 Serial number and nameplate
Each actuator and each SMARTCON control unit carries a serial number. The serial number is a 8-digit
number that begins with the year and that can be read from the nameplate (see Figure 2 and 3)
The nameplate of the actuator is located under the hand lever and the nameplate of the SMARTCON control
unit is located on the control unti (see Figure 4).
Using this serial number, SCHIEBEL can uniquely identify the actuator (type, size, design, options, technical
data and test report).

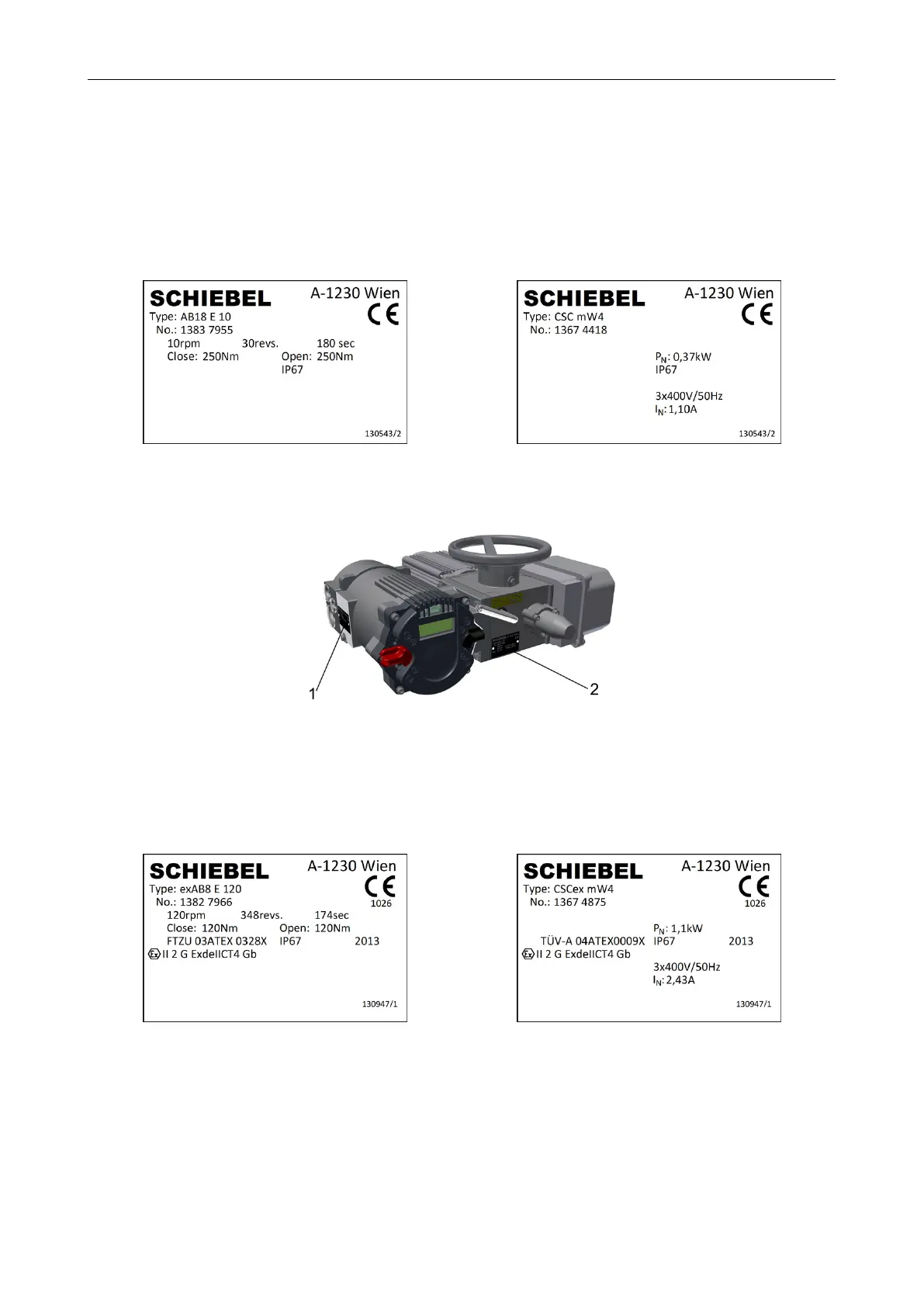

Figure 2: nameplate of the actuator Figure 3: nameplate of the SMARTCON control unit
Figure 4: 1. . . nameplate of the SMARTCON control unit, 2. . . nameplate of the actuator
Actuators which are suitable for operation in explosive atmosphere (see EU-Richtlinie 94/9/EG and
EN60079-0 Standard) are separately designated by a special model plate (EEx, TÜV-Standard, see Fig-
ure 5 and 6).
Figure 5: nameplate of the actuator for operation in
explosive atmosphere
Figure 6: nameplate of the SMARTCON control unit
for operation in explosive atmosphere
2.3 Operating mode
There are two distinct modes of operation: open-loop control operation (operational mode S2 for ON-OFF)
and closed-loop control operation (operational mode S4) according to EN 60034-1. But since there is a great
number of varying and special models made to order, it is recommended to consult the motor model plate for
the mode of operation and the running time.
5
