SCHIEBEL AB Series User Manual

Operating instructions for actuators type AB with SMARTCON control unit
OM-ENGLISH-CSC-V2.08-2019.11.07 13 Spare parts

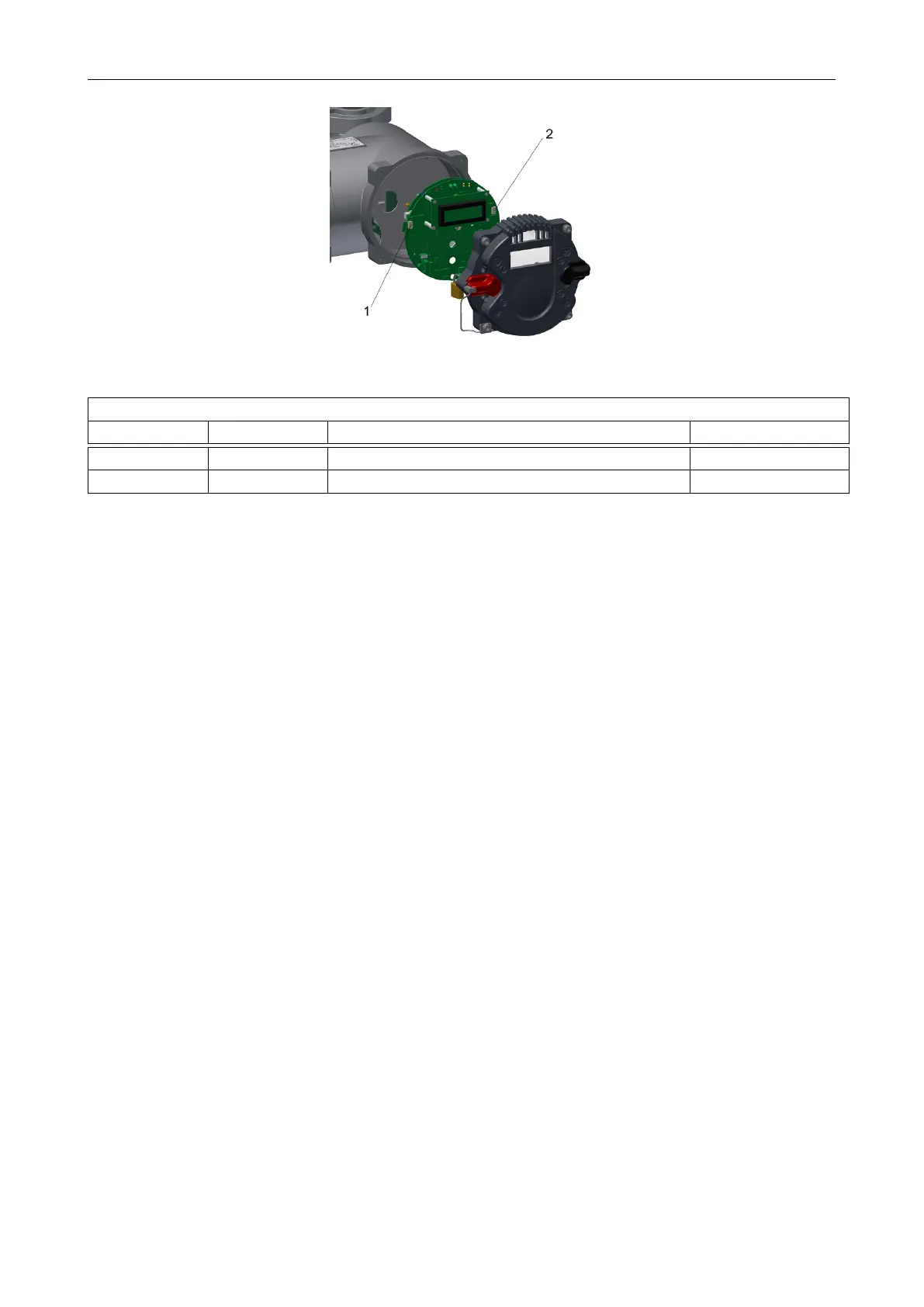

Figure 79: 1. . . Fuse F10a for the binary outputs, 2. . . Fuse F10b fuse for auxiliary supply
Fuses on the logic board
Fuse Value Manufacturer List of spare parts
F10a 375mA Littelfuse 454 NANO2 Slo-Blo
R
 träge C302a
F10b 500mA Littelfuse 454 NANO2 Slo-Blo
R
 träge C302b
13 Spare parts
When ordering spare parts, please provide us with the serial number of the (see section 2.2, page 5). Check
the separate break-down image and separate list of spare parts.
14 Recommendations of Lubricants (for all manufactures)
14.1 Main Casing
14.1.1 Application temperature from -35
◦
C to +100
◦
C
Lubricating grease DIN 51826 - GP 00 P-30
i.e. High pressure (EP), complex grease on Li soap basis:
work penetration 0.1 mm: 355 to 430
Dripping temperature: about 200
◦
C
NLGI grade: 00
Acid-free, not or only marginally reacting with water
14.1.2 Application temperature from -50 to +100
◦
C
Lubricating oil DIN 51 502 CLP-HC
i.e. fully synthetic high-performance industrial gear oil based on poly alpha olefins (PAOs):
Viscosity class: ISO VG 68
Pour point: <-55
◦
C
Compatibility with conventional coatings and sealants
14.1.3 Application temperature from -60 to +100
◦
C
Lubricating oil DIN 51 502 CLP-HC
i.e. fully synthetic high-performance industrial gear oil based on poly alpha olefins (PAOs):
Viscosity class: min ISO VG 32
Pour point: <-60
◦
C
Compatibility with conventional coatings and sealants
