SCHIEBEL AB Series User Manual

12 Fuses
Operating instructions for actuators type AB with SMARTCON control unit
OM-ENGLISH-CSC-V2.08-2019.11.07

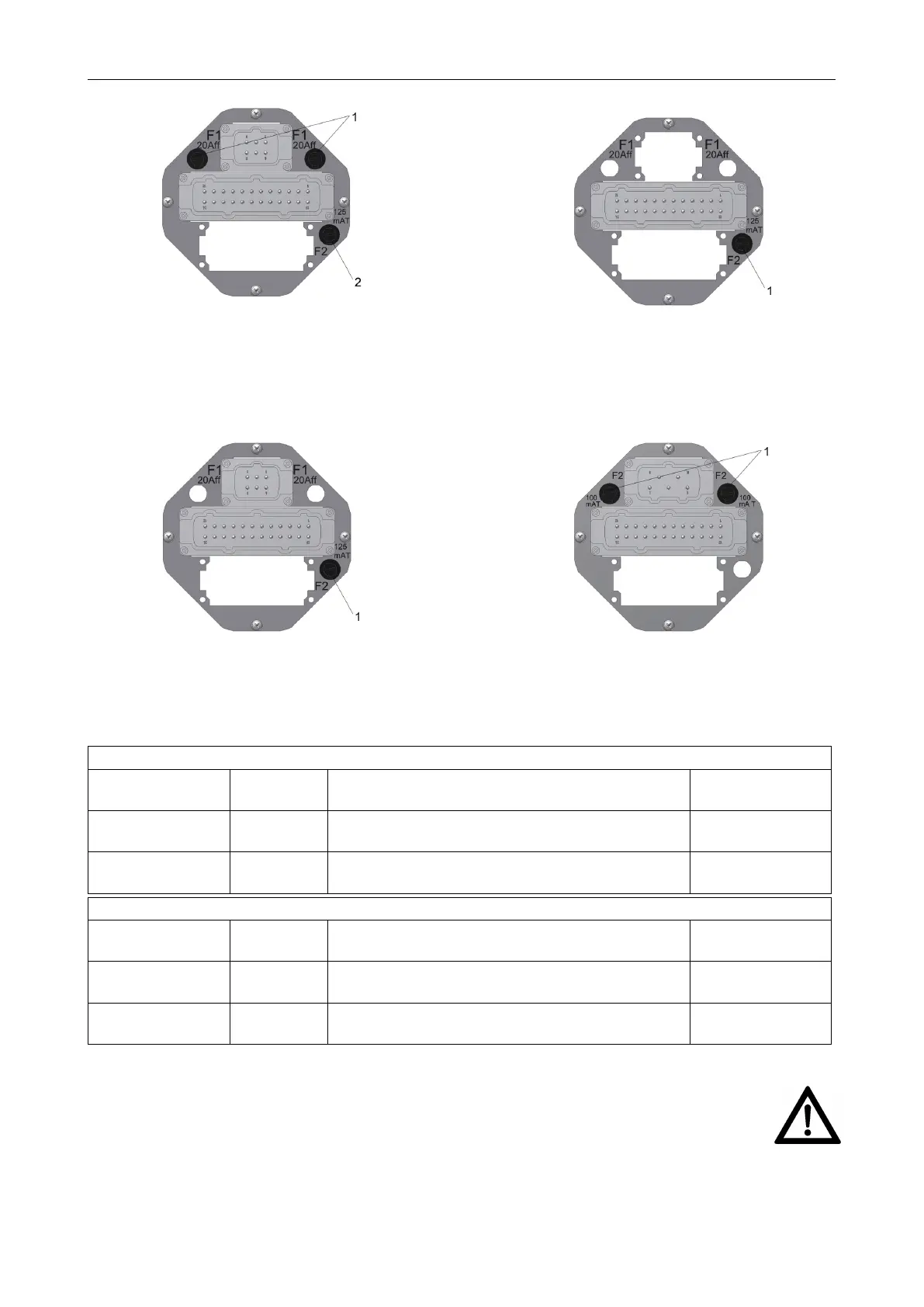

Figure 75: size 1, electronic reversing starters
(1. . . main fuses, 2. . . control fuse)
Figure 76: size 2 (1. . . control fuse)
Figure 77: size 1, up to 440VAC
(1. . . control fuse)
Figure 78: size 1, larger than 440VAC
(1. . . control fuse)
fuse F1: main fuse before the electronic reversing starter (eW, see Figure 75)
power of the motor value Recommended Type
Spare part
designation
up to 1,5kW
20A FF
(2 pcs)
G-fuse, brand SIBA, type 195100, ceramic 6,3 x
32mm; 20AFF,very fast acting, 500V, I
2
t = 46A
2
C606d
3kW
12,5A T
(2 pcs)
G-fuse, brand SIBA, type 189140, ceramic 6,3 x
32mm; 12,5AT; time lag, 500V, I
2
t = 1300A
2
s
C606e
fuse F2: control fuse before the control transformer
supplyvoltage value Recommended Type
Spare part
designation
≤ 440VAC 125mA T
G-fuse, brand SIBA, type 189140, ceramic 6,3 x
32mm; 125mA; time lag, 500V, I
2
t = 0,08A
2
s
C606g
> 440VAC
100mA T
(2 Stück)
G-fuse, brand SIBA, type 189140, ceramic 6,3 x
32mm; 100mA; time lag, 500V, I
2
t = 0,05A
2
s
C606f
Actuators which are suitable for operation in explosive atmosphere, no fuses are located in the con-
nection compartment! The control fuse is installed in the flameproof area of SMARTCON control
unit and is not accessible to the user!
The logic board of the controller cover (see Figure 79, page 47) features two miniature fuses for the control
lines
46
