SCHIEBEL AB Series User Manual

Operating instructions for actuators type AB with SMARTCON control unit
OM-ENGLISH-CSC-V2.08-2019.11.07 5 Commisioning

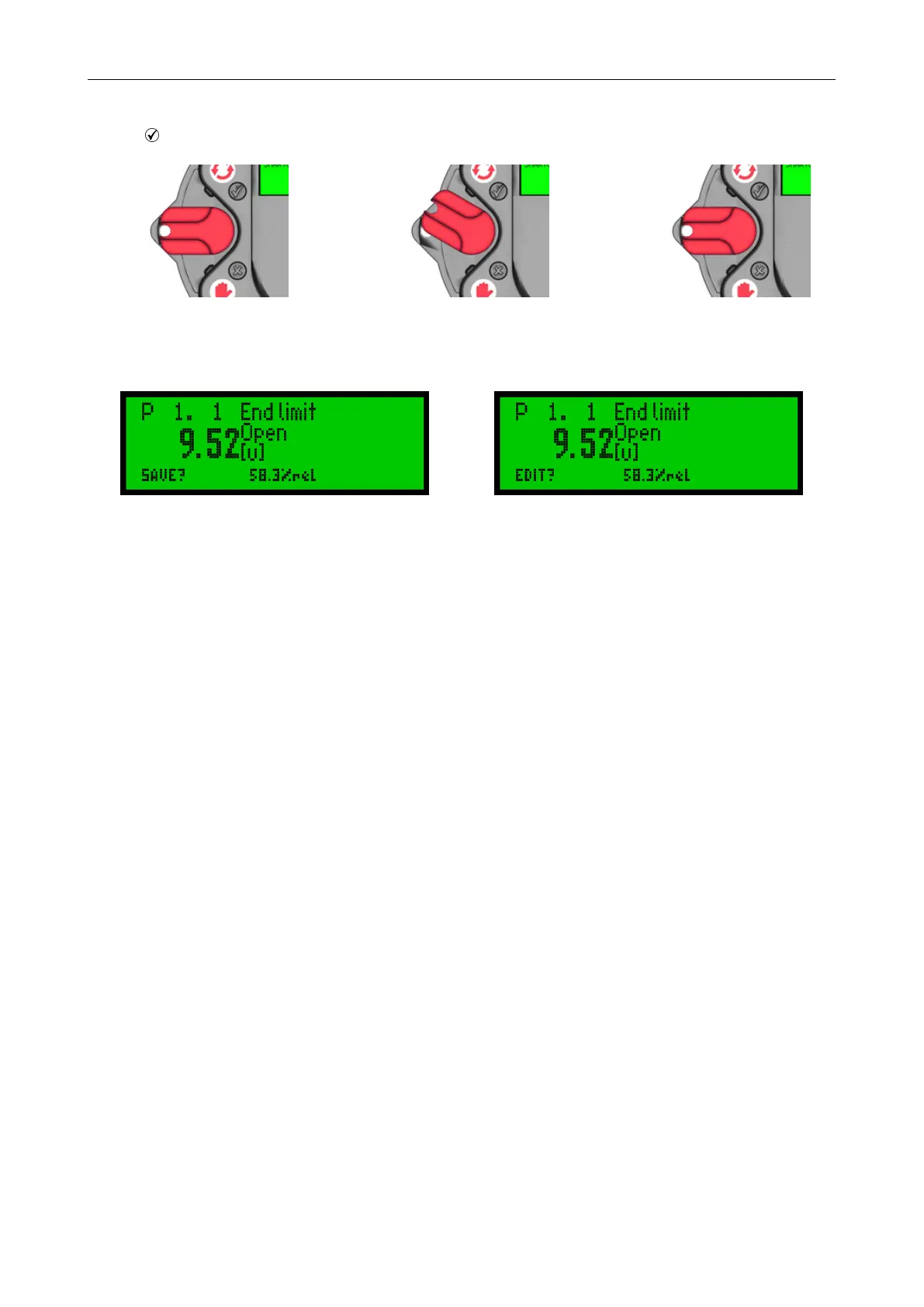

In order to confirm the end position (save), slightly flip up the selector switch and let it snap back to its neutral
position
Figure 34
⇒
Figure 35
⇒
Figure 36
This changes the bottom line of the display for "SAVE?" to "EDIT?" and the end position is stored.
Figure 37 Figure 38
5.7.2 End limit CLOSE
Use menu item "P 1.2 End limit - End limit CLOSE" as for End limit OPEN
5.8 Final works
Following commissioning, check for proper sealing the covers to be closed and cable inlets. (see section 2.4,
page 6) Check actuator for paint damage (by transport or installation) and repair if necessary.
