Operating instructions for actuators type AB with SMARTCON control unit
OM-ENGLISH-CSC-V2.08-2019.11.07 7 Parameter menu
continued from previous page
Menu Item
Sub-Menu
item
poss. setting Notes / Comments
P12.4
Step mode
function
Runtime
Open
0.1 - 60 Runtime in OPEN direction
P12.5
Step mode
function
Pause time
Open
0.2 - 60 Pause time in OPEN direction
P12.6
Step mode
function
Start Closed 0 - 100%
In CLOSED direction, position in % from which the
step mode operation should start.
P12.7
Step mode
function
End Closed 0 - 100%
In CLOSED direction, position in % of which the
step mode operation should end.
P12.8
Step mode
function
Run time
Closed
0.1 - 60 Runtime in Closed direction
P12.9
Step mode
function
Pause time 0.2 - 60 Pause time in Closed direction
P12.10
Step mode
function
Timebase {0: Seconds} Time basis for run and pause times
1: Minutes

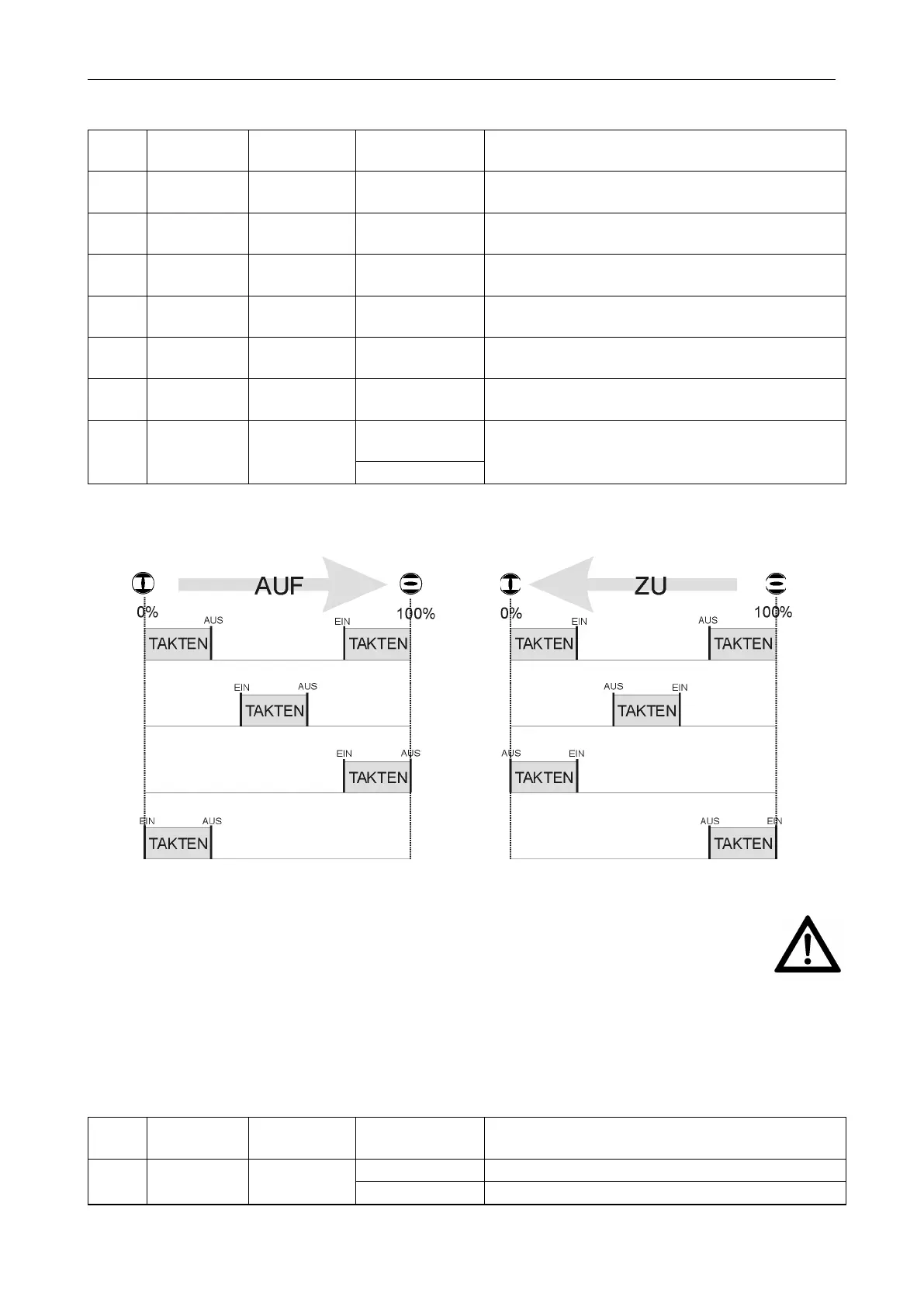

Figure 62
NOTE: It is important to ensure that the mode of operation is not exceeded!
The running info on the actuator (see section 6.2.2, page 19) only flashes while the drive is
running, i.e. during the break, there is no flash!
7.12 Parameter group: Positioner (option)
The positioner SR option is used to control the electric actuator by means of a set point input 0/4-20 mA signal.
The SR helps control the position of the actuator, i.e. the positioner ensures that the actual value and thus the
position of the actuator matches the desired set point.
Menu item
Sub-menu
item
poss. setting Notes / comments
P13.1 Positioner Function off Positioner disabled
on Positioner enabled
continued on next page
35
