10 Maintenance
Operating instructions for actuators type AB with SMARTCON control unit
OM-ENGLISH-CSC-V2.08-2019.11.07
This approach can greatly simplify operation.
Please refer to the SMARTTOOL software operating instructions manual for further information.
During operation, it must be ensured that the IR interface surface is protected from strong disturbances -
which may otherwise compromise the communication.
Before mounting the infrared adapter, clean the surface of the infrared interface with a damp cloth.

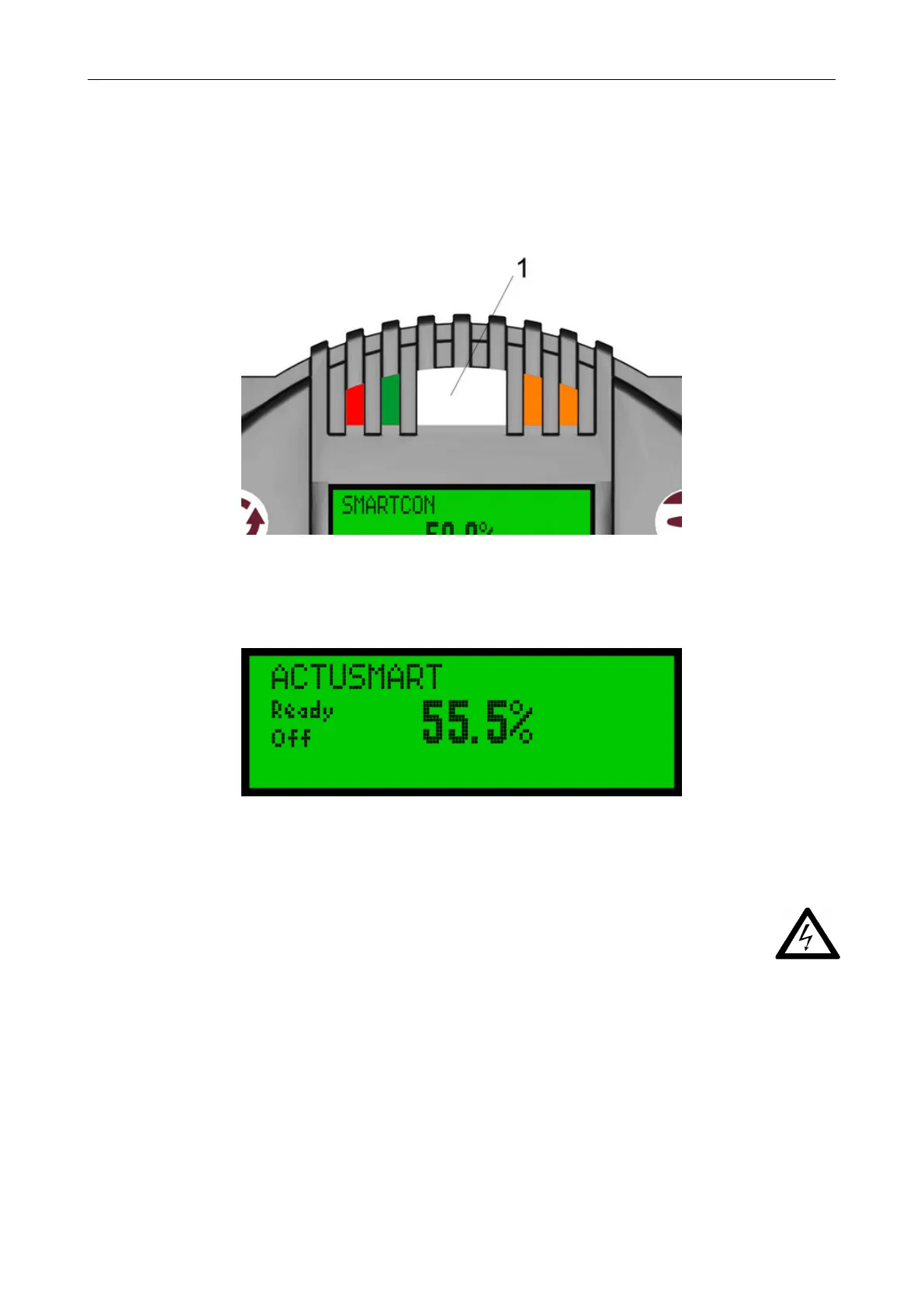

Figure 72: 1. . . Infrared connection
When the infrared port is enabled, this is indicated on the display (see Figure 73) The infrared interface can be
enabled in the menu option P20.6
Figure 73: 1. . . infrared port is enabled
10 Maintenance
Maintenance work on open actuators may only be conducted if these are de-energized. Reconnec-
tion during maintenance is strictly prohibited.
Work on the electrical system or equipment must be carried out only in accordance with electrical
regulations by a qualified electrician himself or by specially instructed personnel under the control and super-
vision of a qualified electrician.
Actuators are ready for use after installation. By default, the actuator is delivered filled with oil.
On-going monitoring:
• Beware of increased running noise. During long downtime periods, operate the actuator at least every 3
months.
• For actuators with output types A, B and C according to DIN 3210-A, B1, B2 and C according to DIN ISO
5210, re-lubricate at least every 6 months on existing grease fittings (see section 14.3, page 48)
Actuators are designed for installation in any position (see section 2.5, page 6). Therefore, the main body is
not equipped with a level indication or a drain plug.
44
