SCHUNK PGL-plus-P - Variant IOL Structure

Design and description

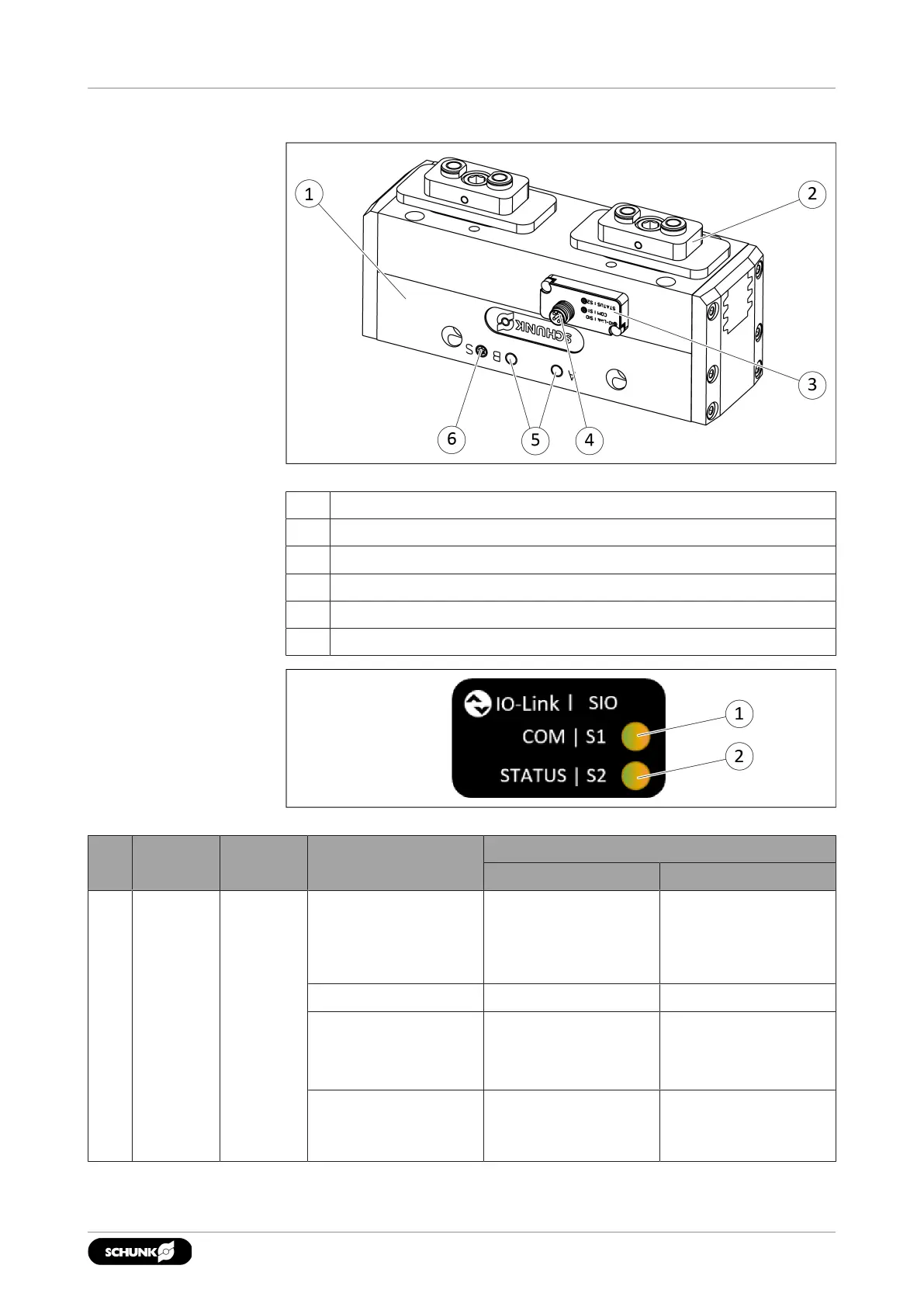

4.1.1 Variant IOL structure
2-Finger Parallel Gripper- IOL
1 Housing
2 Base jaw
3 LED display
4 Connecting plug
5 Compressed air main connection
6 Air purge connection
LED display
Display 2-Finger Parallel Gripper- IOL
LED Designa-
tion
Color Status Mode
SIO * IOL**
1 COM | S1 Green/
Orange
Off Voltage supply
polarity is reversed
or not in the valid
range.
Voltage supply po-
larity is reversed or
not in the valid
range.
On (Orange) Sensor output S1=1
On (Green) Sensor is ready for
operation.
Sensor output S1=0
IO-Link
communication not
active.
Flashing (Green),
100ms off, 90ms on
IO-Link
communication
active.
1902.00 | PGL-plus-P | Assembly- and Operating Manual | en | 1508050
