SCHUNK PGL-plus-P - Changing Seals (Variant with O.D. Gripping Gripping Force Maintenance)

Maintenance
50 02.00 | PGL-plus-P | Assembly- and Operating Manual | en | 1508050
7.4.2 Changing seals (variant with "O.D. gripping" gripping force
maintenance)
NOTE
During assembly, the cylinder piston must be aligned precisely.
We therefore recommend having SCHUNK change the seals.
WARNING
Risk of injury due to spring forces!
Products that use spring force or have gripping force
maintenance contain parts that are under spring tension. This can
cause components to move unexpectedly when being
dismantled, which may result in serious injuries.
• Carefully dismantle the product.

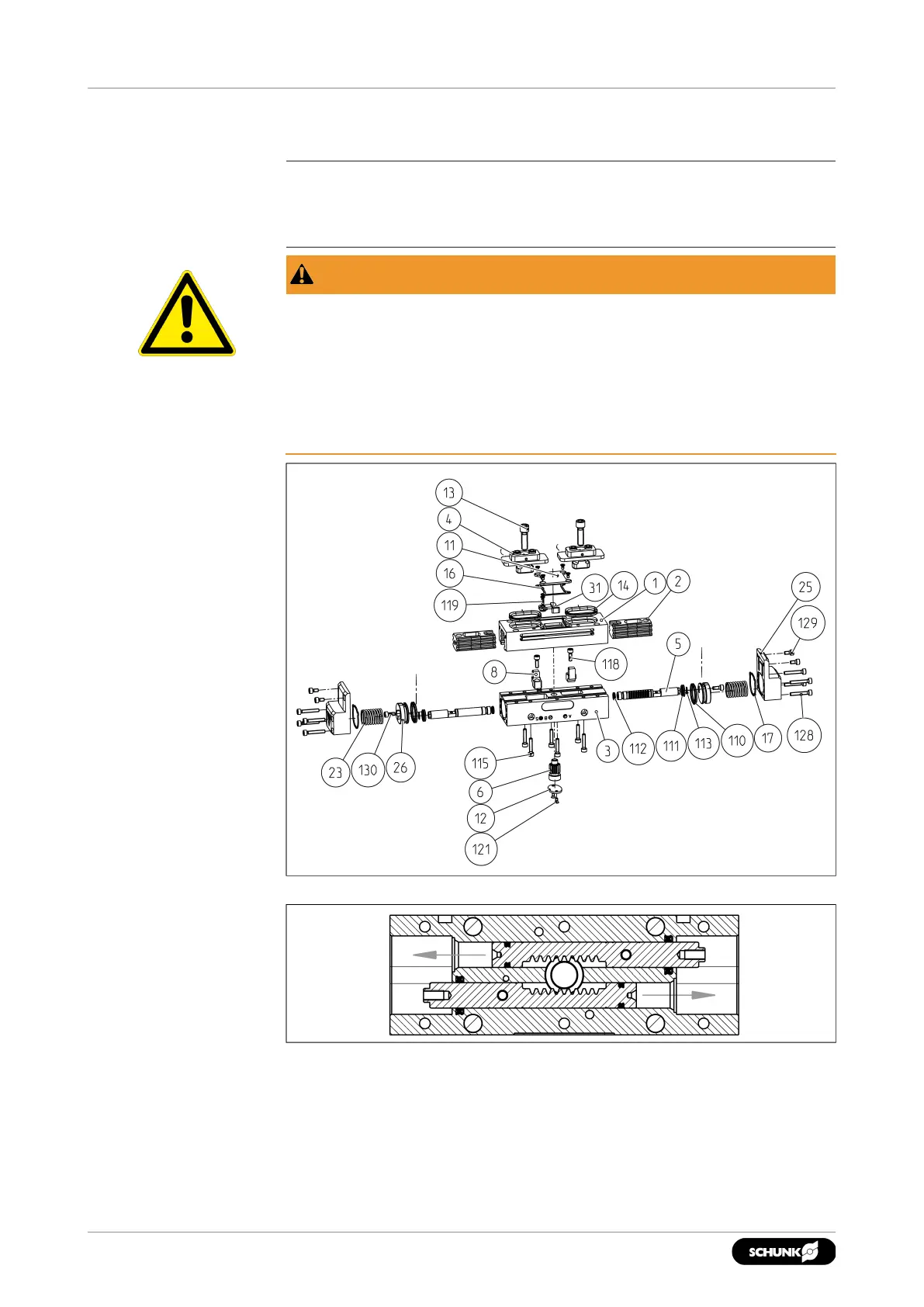

Changing seals(variant with gripping force maintenance "O.D. gripping" (AS))
Gear rack removal direction(5)
Remove old seals
■ There is no compressed air or energy supply.
■ No workpiece is gripped.
1. Remove all compressed air lines, }5.3.2 [
/
25].
