SCHUNK PGL-plus-P - Replace Seals; Changing Seals (Variant Without Gripping Force Maintenance)

Maintenance
48 02.00 | PGL-plus-P | Assembly- and Operating Manual | en | 1508050
7.4 Replace seals
7.4.1 Changing seals(variant without gripping force maintenance)
NOTE
It is recommended to have SCHUNK change the seals.

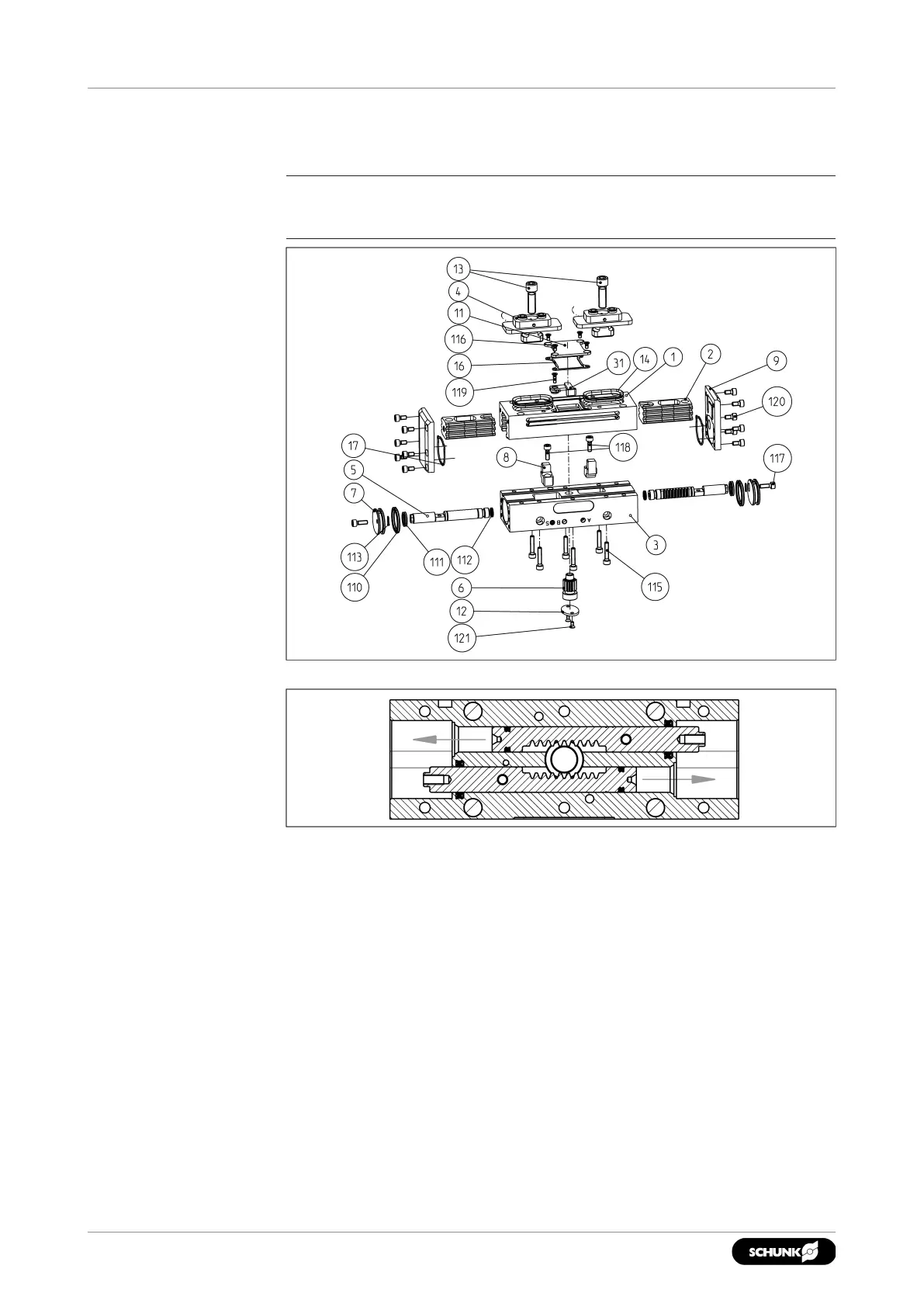

Changing seals(variant without gripping force maintenance)
Gear rack removal direction(5)
Remove old seals
■ There is no compressed air or energy supply.
■ No workpiece is gripped.
1. Remove all compressed air lines, }5.3.2 [
/
25].
2. Remove product from the system/machine.
3. Remove screws(120) and take off cover(9).
4. Remove screws(115).
5. Pull guide housing(1) and drive housing(3) apart.
6. Mark the installation position of the jaws(2) on the guide
housing(1).
7. Remove screws(13) and take out base jaws(4).
8. Remove screws(116) and take off the cover(11).
