Maintenance
52 02.00 | PGL-plus-P | Assembly- and Operating Manual | en | 1508050
14. Secure the cover(11) with the screws(116).
15. Insert the gaskets(14).
16. Press base jaws(4) into jaws(2) and secure with screw(13).
17. Assemble the guide housing(1) and drive housing(3) and
secure with the screws(115).
18. Insert the flat gasket(17) into the cover(25).
19. Insert the spring(23) into the drive housing(3). In doing so,
observe the alignment of the spring in relation to the cylinder
piston.
20. Secure the cover(25) with screws(128, 129).
21. Mount product onto the system/machine.
22. Connect all compressed air lines.
7.4.3 Changing seals (variant with "I.D. gripping" gripping force
maintenance)
WARNING
Risk of injury due to spring forces!
Products that use spring force or have gripping force
maintenance contain parts that are under spring tension. This can
cause components to move unexpectedly when being
dismantled, which may result in serious injuries.
• Carefully dismantle the product.

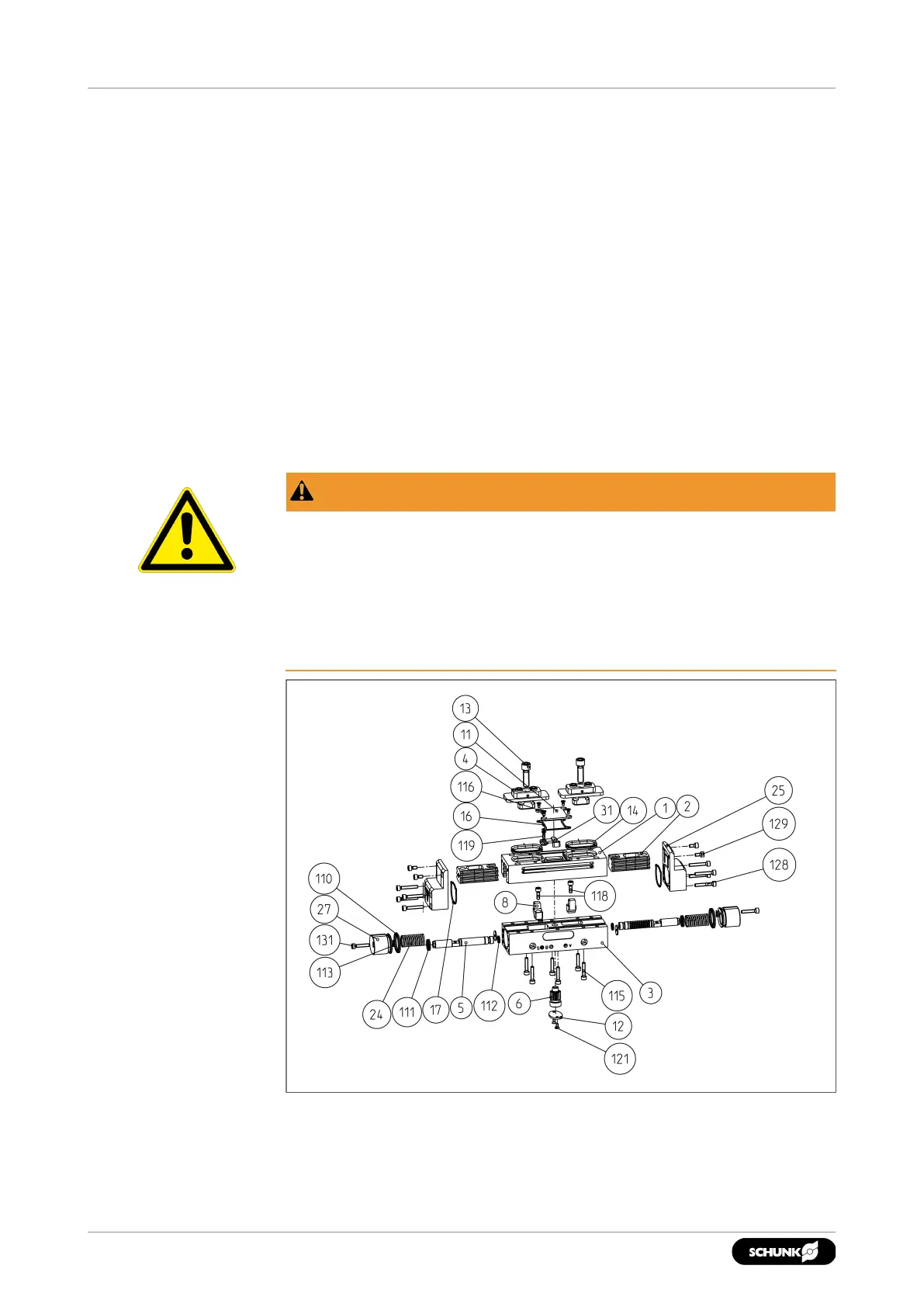

Changing seals(variant with gripping force maintenance "I.D. gripping" (IS))
