SCHUNK PGL-plus-P - Mounting the Magnetic Switch MMS 22-IOL

Assembly and settings
40 02.00 | PGL-plus-P | Assembly- and Operating Manual | en | 1508050

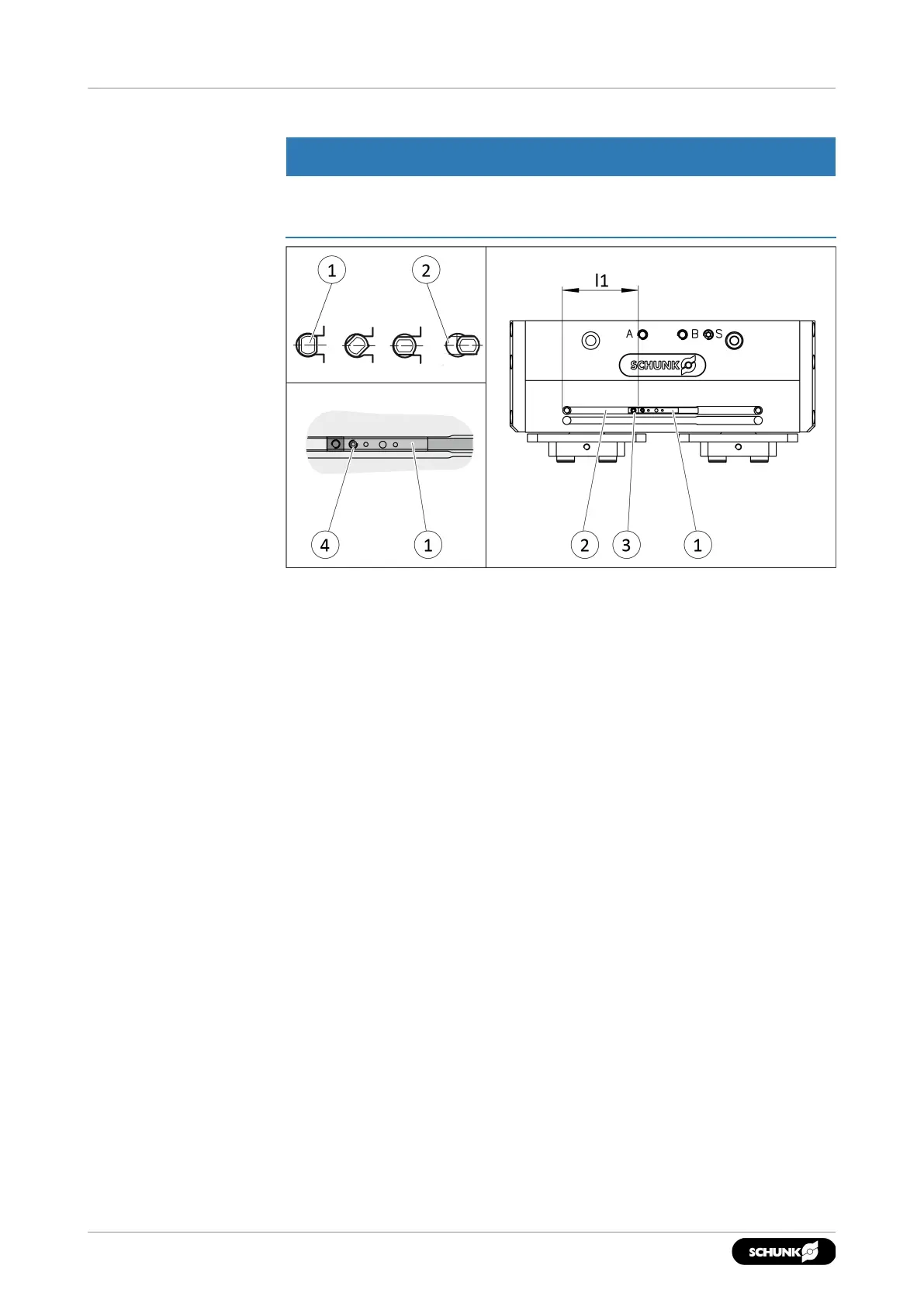

5.5.8 Mounting the magnetic switch MMS 22-IOL
NOTICE
Risk of damage to the sensor during assembly!
• Observe the maximal tightening torque.
1. Adjust the T-nut(3) to dimension l1, }5.5.2 [
/
31].
2. Slide sensor(1) into the groove(2) until the sensor(1) stops at
the T-nut(3).
3. Secure the sensor(1) using the set-screw(4).
Tightening torque: 10Ncm
4. Adjust sensor(1), see the Sensor Assembly and Operating
Manual.
