Assembly and settings
36 02.00 | PGL-plus-P | Assembly- and Operating Manual | en | 1508050

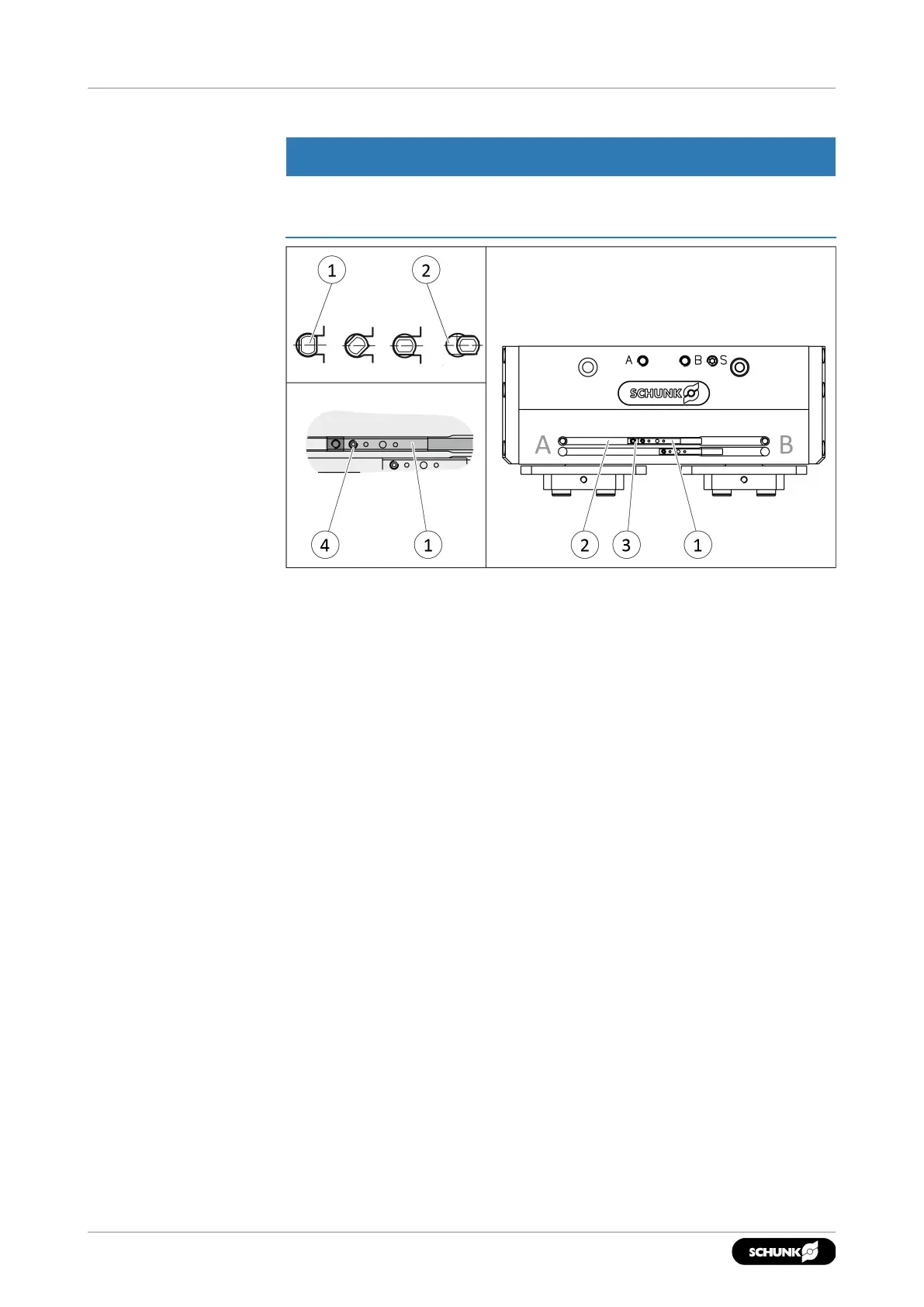

5.5.5 Mounting MMS 22 magnetic switch
NOTICE
Risk of damage to the sensor during assembly!
• Observe the maximal tightening torque.
Position "Gripper open" or "Part gripped (I.D. gripping)"
1. Put the product in the desired position.
2. If necessary remove T-nut (3).
3. Turn sensor 1 (1) into the groove (2).
OR: Slide sensor 1(1) into the groove (2) until sensor 1 (1)
stops at starting point/groove end "B".
4. Pull sensor1(1) back again slowly until it switches.
5. Secure the sensor1(1) using the set-screw(4).
Tightening torque: 10Ncm
6. Bring the product into position "Gripper open" or "Part gripped
(I.D. gripping)" and test the function.
Position "Gripper closed" or "Part gripped (O.D. gripping)"
1. Put the product in the desired position.
2. If necessary remove T-nut (3).
3. Turn sensor2(1) into the groove(2).
OR: Slide sensor2(1) into the groove(2) until sensor2 (1)
stops at groove end "A".
4. Pull sensor2(1) back again slowly until it switches.
5. Secure sensor2(1) using the set-screw(4).
Tightening torque: 10Ncm
6. Bring the product into position "Gripper closed" or "Part
gripped (O.D. gripping)" and test the function.
