Assembly and settings
5.3 Connections
5.3.1 Mechanical connection
Evenness of the
mounting surface
The values apply to the whole mounting surface to which the
product is mounted.
Requirements for evenness of the mounting surface (Dimensions in mm)
Edge length Permissible unevenness
< 100 < 0.02
> 100 < 0.05
Connections at the
base jaws

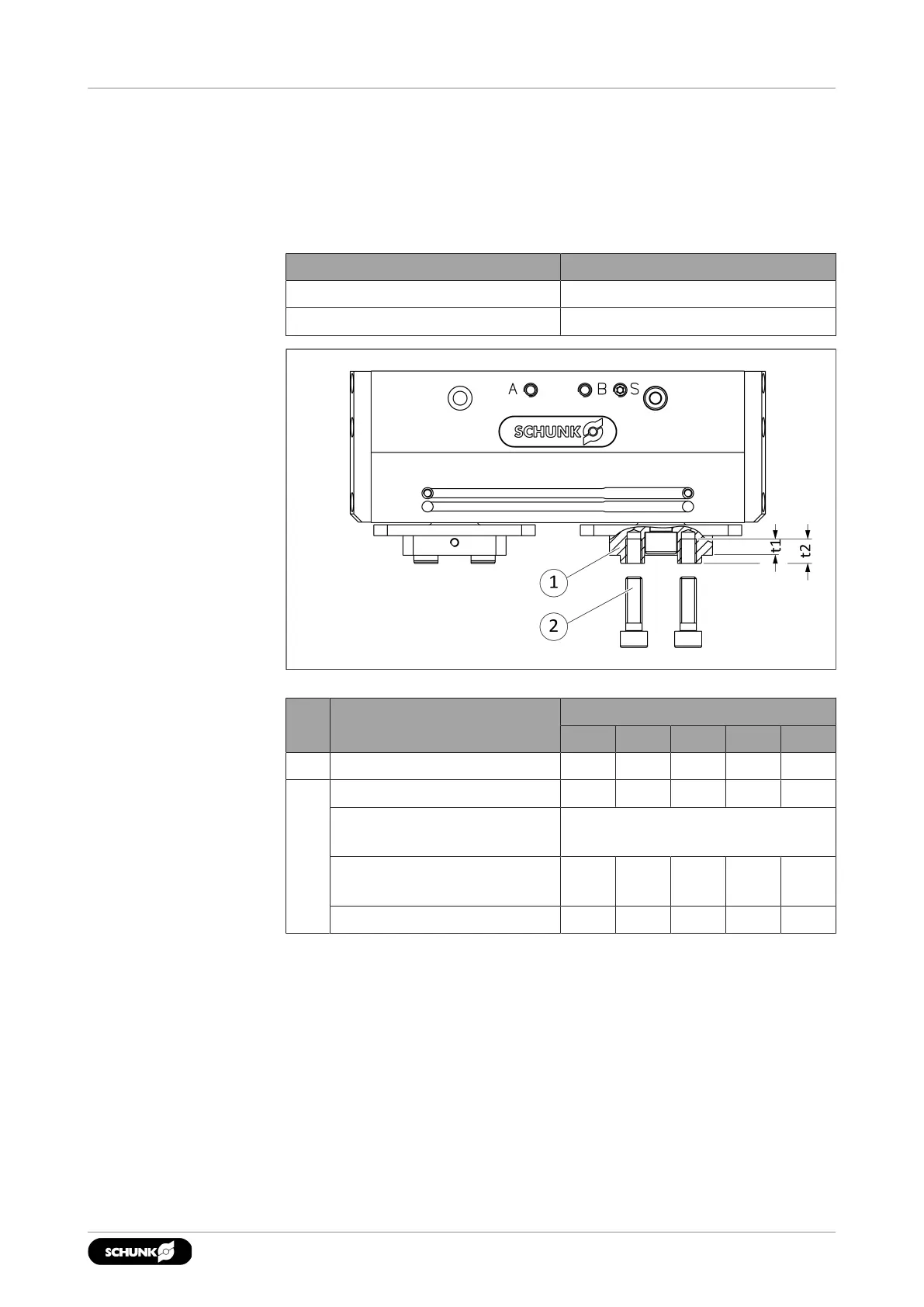

Connections at the base jaws
Item Mounting PGL-plus-P
10 13 16 20 25
1 Outer diameter centering Ø 6 Ø 8 Ø 10 Ø 10 Ø 14
2 Mounting screw M4 M5 M6 M6 M10
Mounting screw strength
class
12.9
t1: Screw-in depth from
stop face [mm]
4 5 6 6 8
t2: Thread depth [mm] 6.5 7.5 9 9 12
