Maintenance

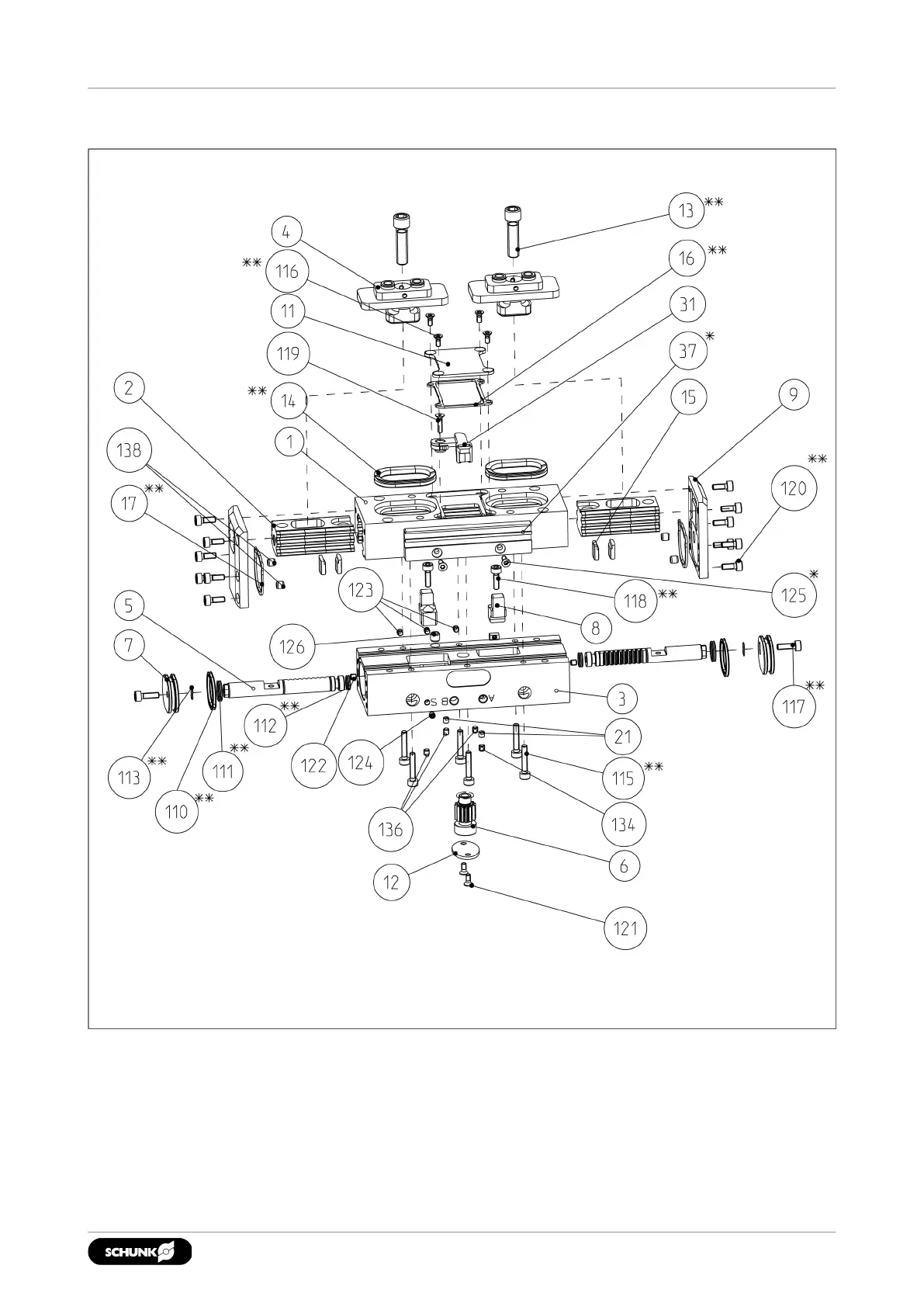

7.7 Assembly drawing
PGL-plus-P 10–25 standard
* Not with PGL-plus-P 16–25
** Included in the "sealing kit" spare parts package
5702.00 | PGL-plus-P | Assembly- and Operating Manual | en | 1508050
