Assembly and settings
28 02.00 | PGL-plus-P | Assembly- and Operating Manual | en | 1508050
5.4 Attaching additional structure
An additional structure can be used as an option, e.g. for
supporting workpieces.

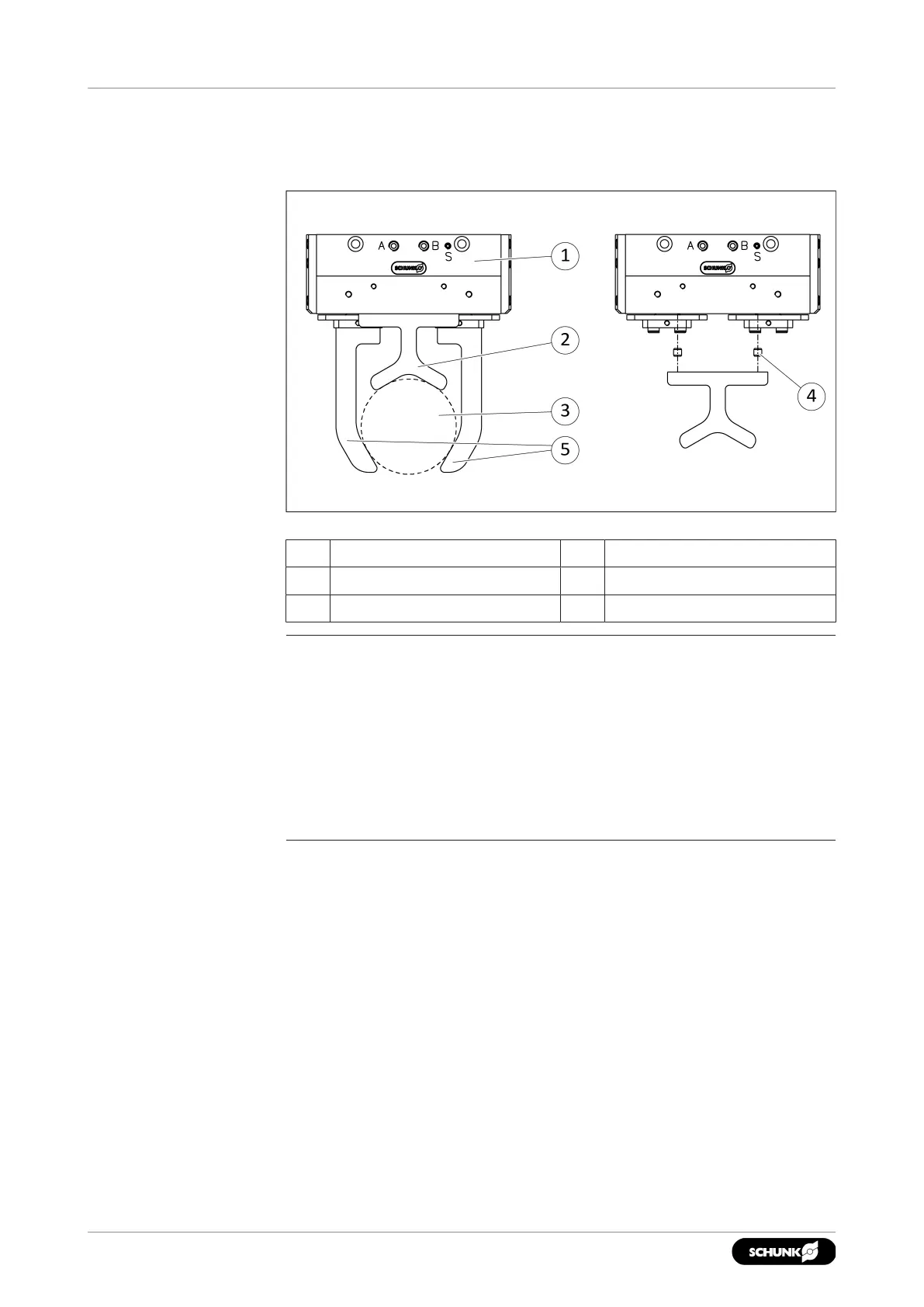

Product with additional structure
1 Product 4 Centering sleeve
2 Additional structure 5 Gripper finger
3 Workpiece
NOTE
• The external dimensions of the additional structure can exceed
the external dimensions of the product but must not interfere
with the motion sequence of the gripper fingers.
• When inductive proximity switches are used, the connections
for the additional structure cannot be fully utilized, since the
control cams attached to the base jaws overrun the threads
and a collision would otherwise occur.
