Assembly and settings

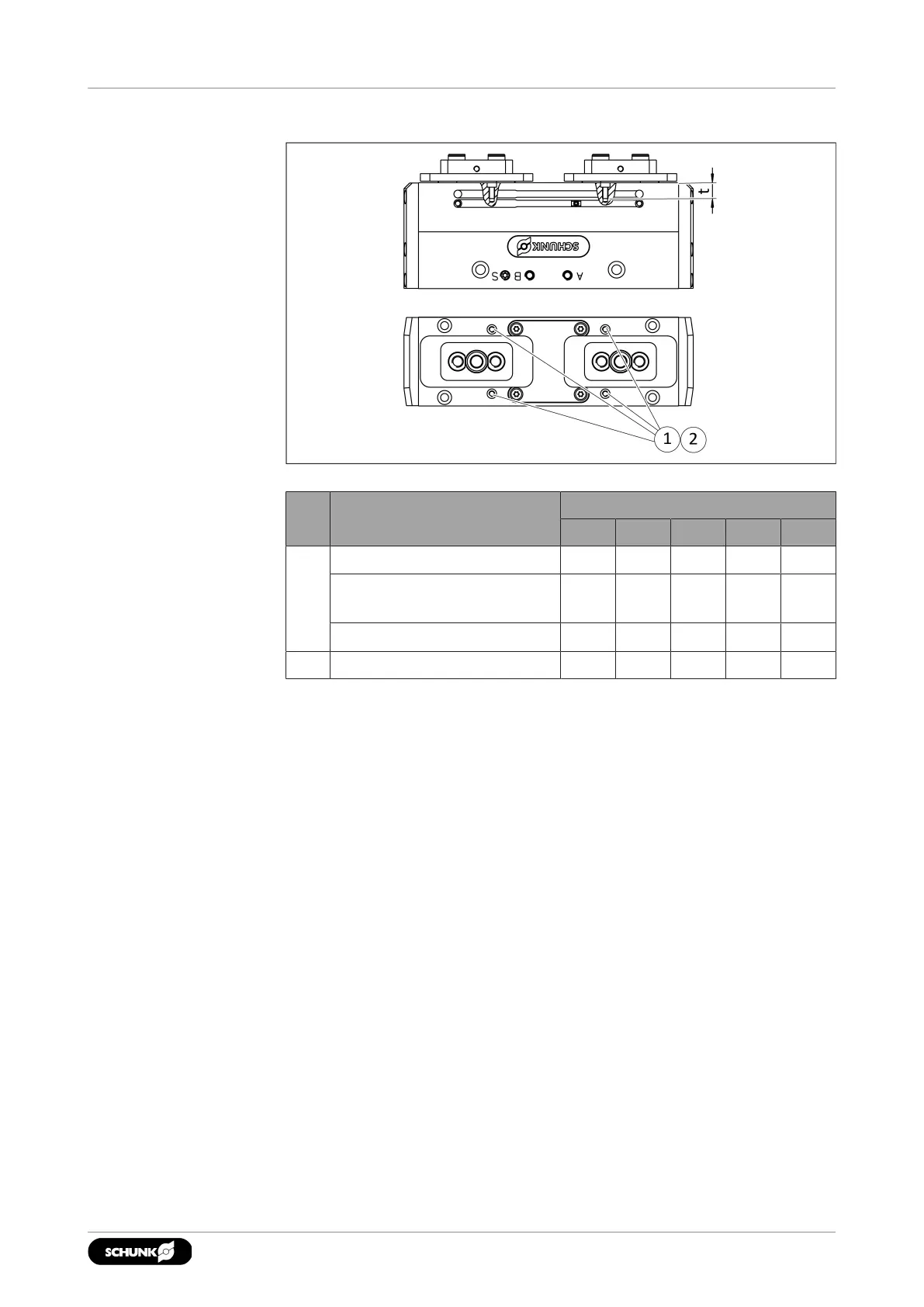

Connection dimensions
Connections for additional structures
Item Mounting PGL-plus-P
10 13 16 20 25
1 Thread in the housing M2.5 M3 M3 M5 M6
Max. screw-in depth "t"
from stop face [mm]
7 8 8 13 15
• for variant IOL
5.5 6.5 8 13 15
2 Centering sleeve Ø 4 Ø 5 Ø 5 Ø 8 Ø 8
Mounting the additional structure
• Mount the additional structure on the product using four
screws and centering sleeves.
✓ Note: The centering sleeves are not included in the scope of
delivery and can be ordered from SCHUNK.
