Assembly and settings
24 02.00 | PGL-plus-P | Assembly- and Operating Manual | en | 1508050

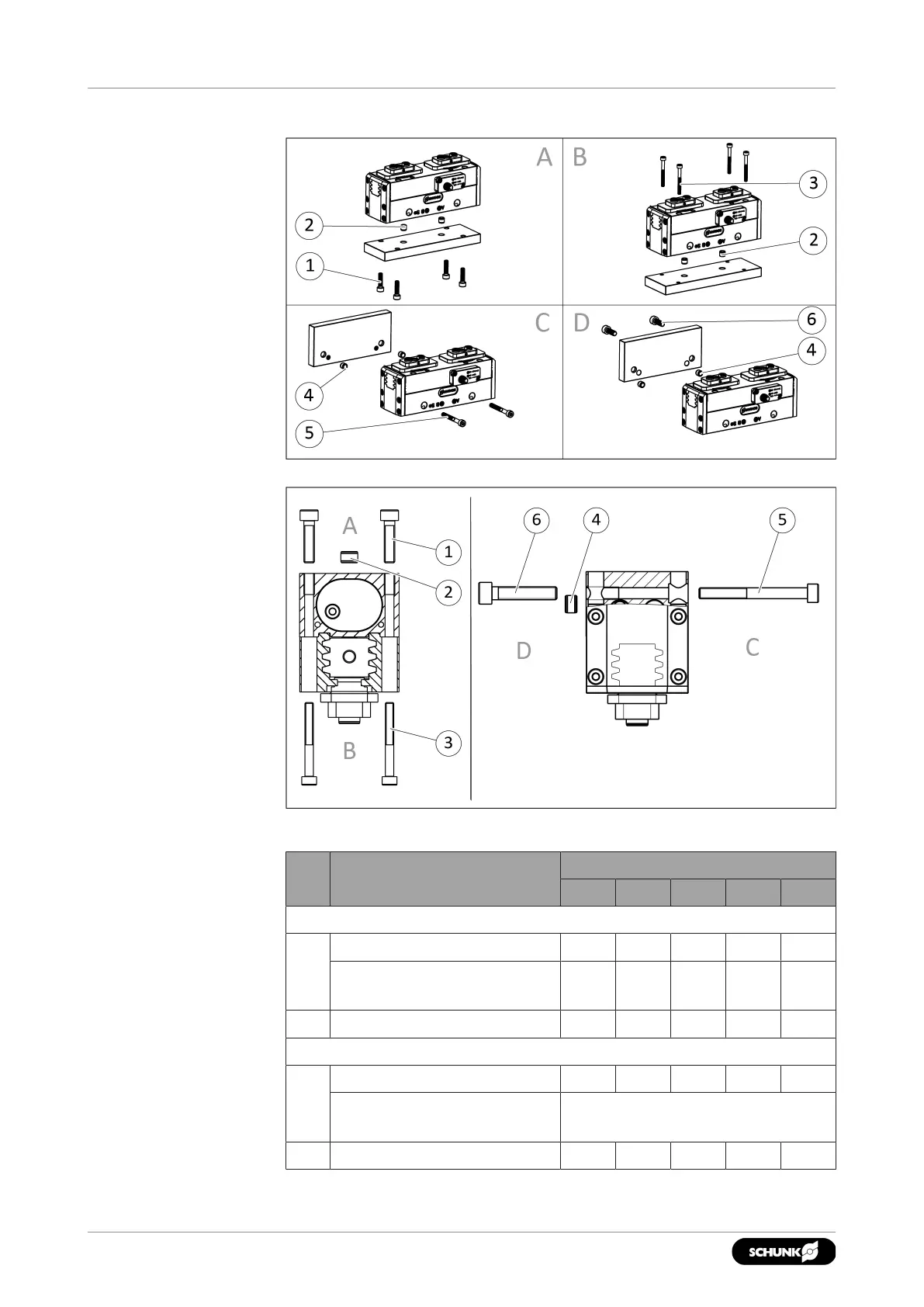

Connections at the
housing
The product can be assembled from four sides.
Connection possibilities
Connections at the housing
Item Mounting PGL-plus-P
10 13 16 20 25
Side A
1 Mounting screw M4 M4 M5 M6 M8
Max. depth of engagement
from locating surface [mm]
8 8 10 12 16
2 Centering sleeve Ø 6 Ø 6 Ø 8 Ø 10 Ø 12
Side B
3 Mounting screw M3 M3 M4 M5 M6
Mounting screw according
to standard
DIN EN ISO 4762
2 Centering sleeve Ø 6 Ø 6 Ø 8 Ø 10 Ø 12
