Assembly and settings
26 02.00 | PGL-plus-P | Assembly- and Operating Manual | en | 1508050

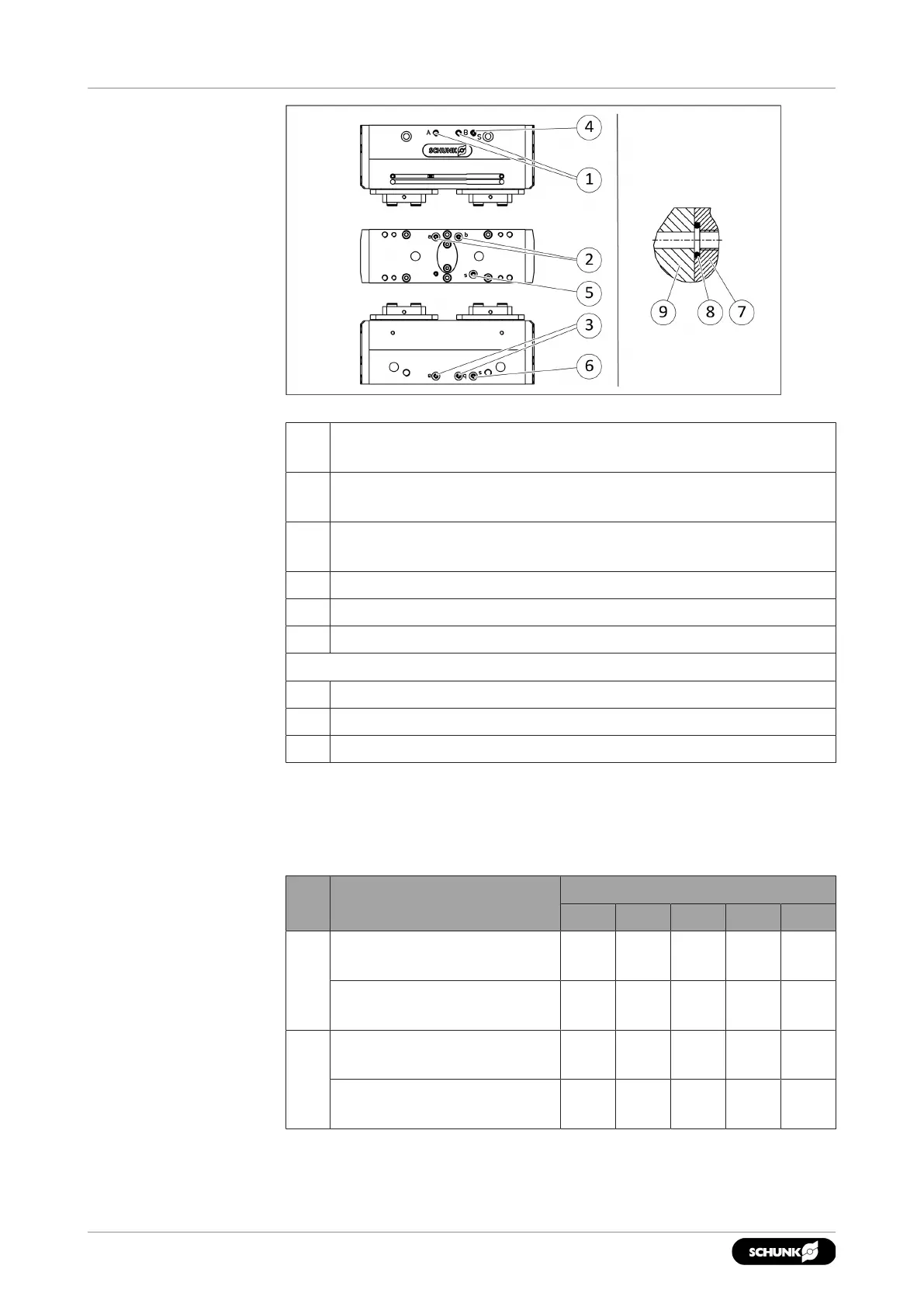

Air connections
1 Main connections (Hose connection)
(A = open, B = close)
2 Hose-free direct connection at the base
(a = open, b = close)
3 Hose-free direct connection
(a = open, b = close)
4 Air purge connection(S)
5 Hose-free air purge connection at the base(s)
6 Hose-free air purge connection(s)
Hose-free direct connection (a, b)/Air purge connection (s)
7 Product
8 O-ring
9 Adapter plate
• Open only the air connections that are needed.
• Close unused main air connections using the screw plugs from
the enclosed pack.
• For a hose-free direction connection, use the O-rings from the
enclosed pack.
Item Mounting PGL-plus-P
10 13 16 20 25
1 Thread in the main air
connections
M5 M5 M5 G1/8 G1/8
Max. depth of engagement
from locating surface [mm]
5 5 5 7 7
4 Thread in the air purge
connection
M3 M3 M5 M5 M5
Max. depth of engagement
from locating surface [mm]
3.5 3.5 5 5 5
Air purge connection The air purge makes it difficult for dirt to penetrate the product.
The product achieves protection class IP67 through use of an air purge.
