Assembly and settings
32 02.00 | PGL-plus-P | Assembly- and Operating Manual | en | 1508050

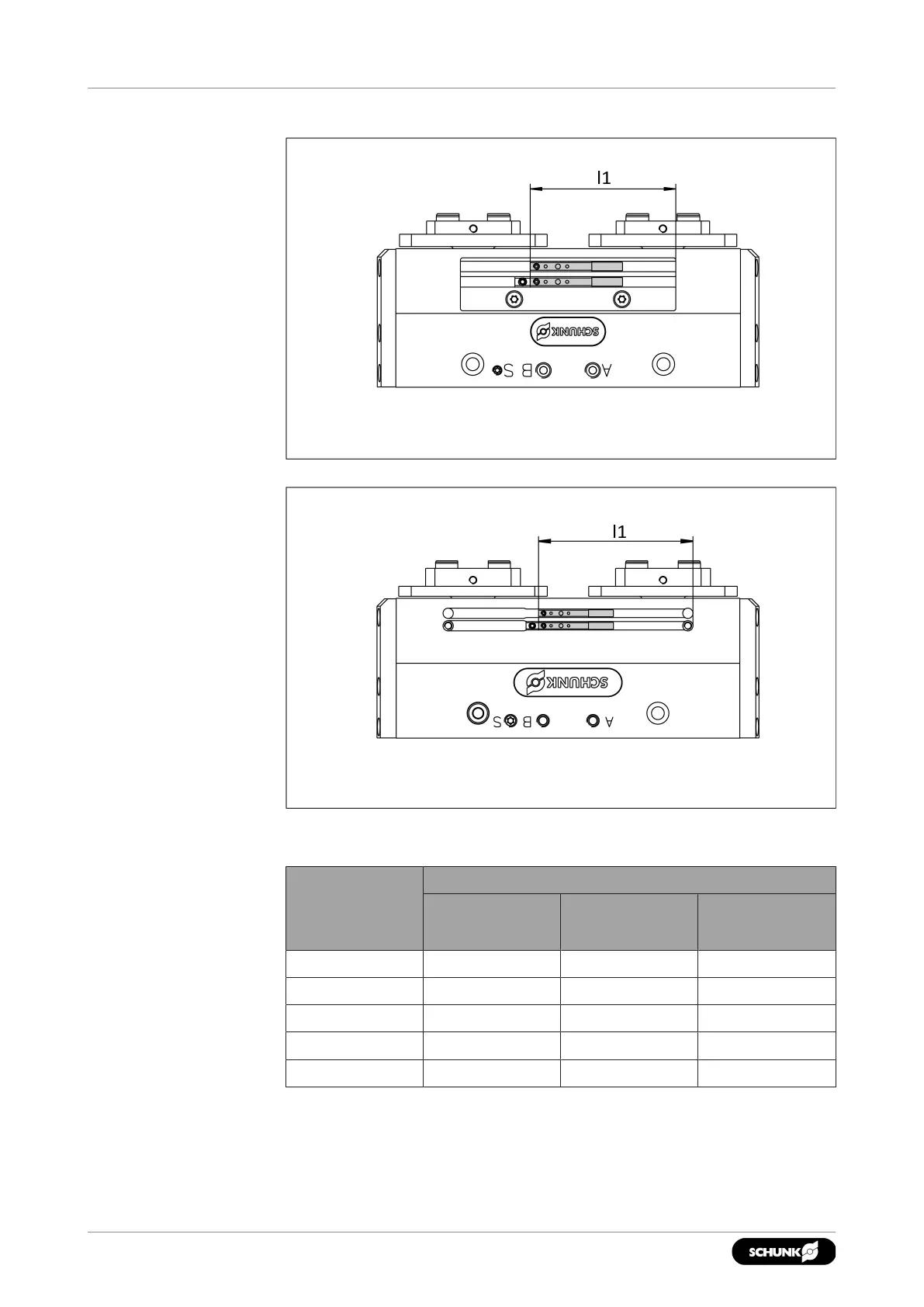

Right cable outlet
PGL-plus-P 10–13
PGL-plus-P 10–13: Setting dimension I1, cable outlet right
PGL-plus-P 16–25
PGL-plus-P 16–25: Setting dimension I1, cable outlet right
Setting dimension I1 - cable outlet right
Size Setting dimensionsl1[mm]
MMS22-PI1
MMS22-PI2
MMS22-A MMS22-IOL
10 46.7 44.9 46
13 47.3 45.4 47.2
16 61.9 60 61.2
20 74 72.1 72.9
25 91.5 89.9 91.1
