STAT IM 2000/2000S Service Guide
96-106775 Rev 5.0
5. STAT IM 5000S Calibration
STATIM 5000/5000S/5000 G4 Service Guide
5. Attach the pressure reference meter to the pressure tube and the pressure tube to the test
cassette. (Self locking couplings).
6. Install the calibration jumper to controller board pins marked W1.
7. Locate TC ADJ and Vref potentiometers.

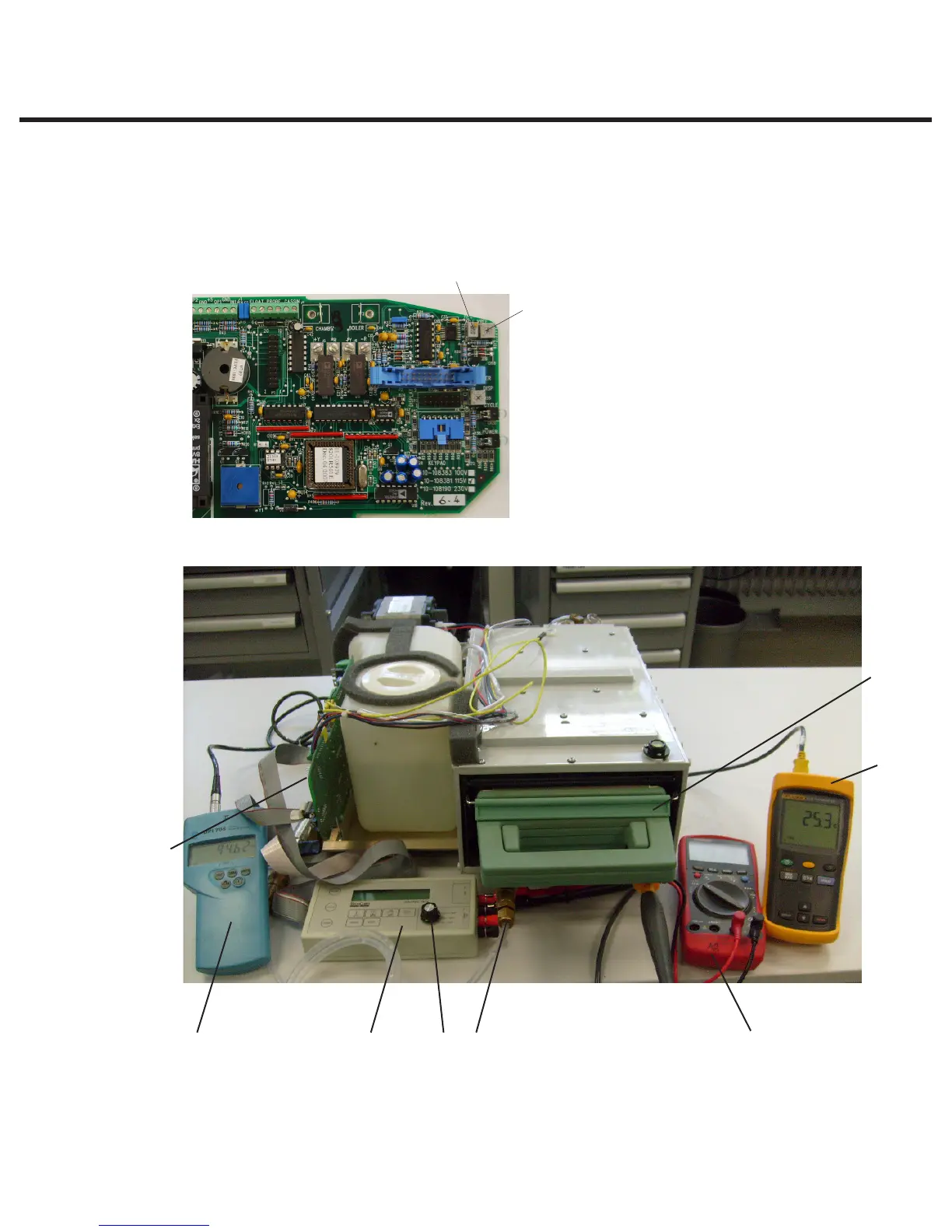

1. Control box
2. Controller board
3. SELECT knob
4. VREF potentiometer
5. Digital voltmeter
6. Calibration cassette
7. Thermocouple
8. Digital thermometer
9. TC-ADJ potentiometer
10. Pressure meter
Figure 2
4
9
110
2
3
5
6
7
8
