1. Identifying STAT IM 5000 Units
STATIM 5000/5000S/5000 G4 Service Guide
Identifying Controller Board Types
There are three different types of controller boards that may be encountered in STAT IM 5000/
5000S/5000 G4 type units (See ‘PCB revision’ above). They can be identified as below (Figure 3):

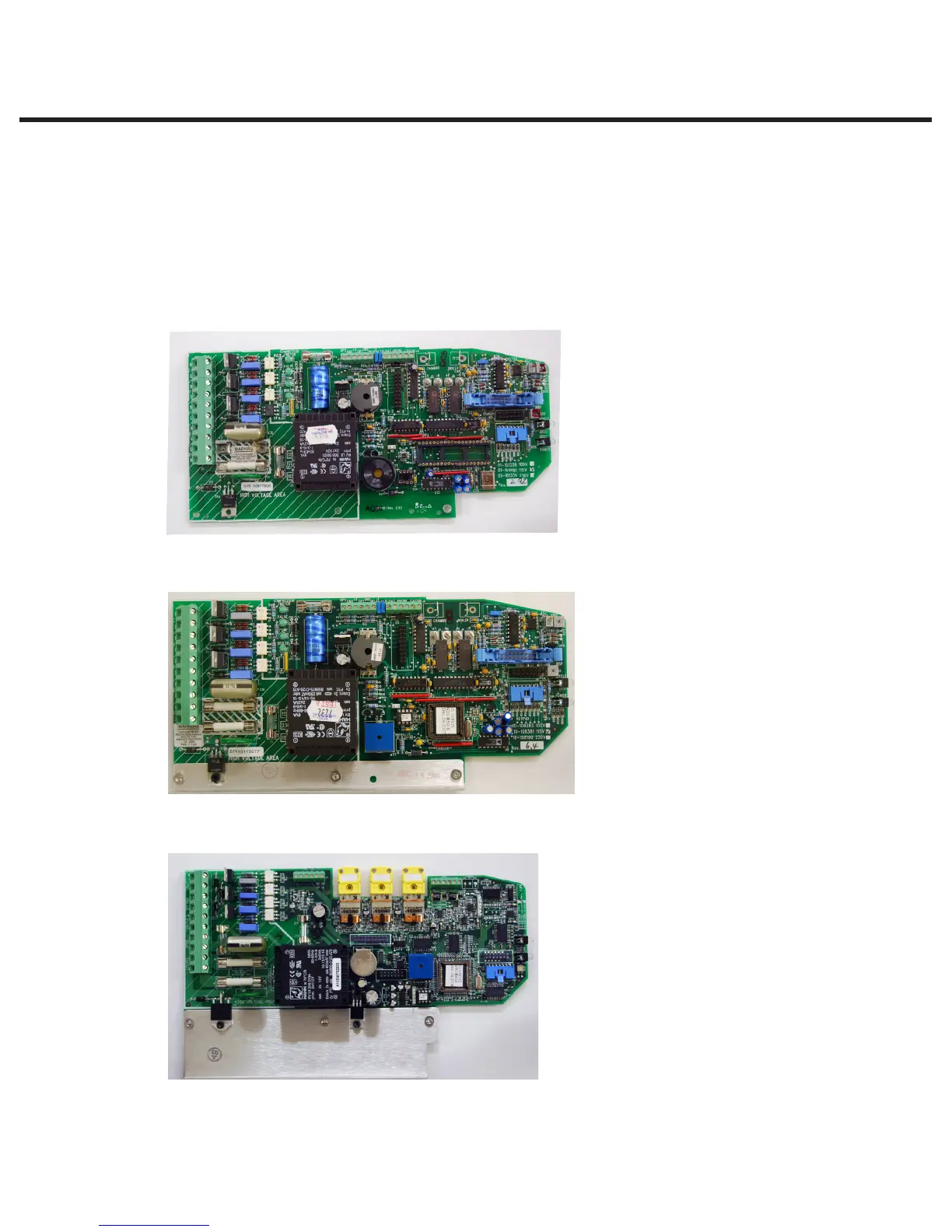

Figure 3
Revision 2.x/5.x type board (1995 – 2004):
Revision 6.x type board (2004 - 2007):
Revision 7.x type board (2007 to present):
Typical features:
• Revision number bottom right hand
side.
• Rectangular microprocessor plus
EPROM
• ‘W1’ jumper for calibration
• Blue ‘pressure interface/printer’
connector
Typical features:
• Revision number bottom right hand
side.
• Square microprocessor plus EPROM
• ‘W1’ jumper for calibration
• Blue ‘pressure interface/printer’
connector
Typical features:
• Up to revision 7.30, the revision
number is on the top right hand side
(printed vertically)
• From revision 7.4 onwards, the
revision number is on the bottom left
hand side (printed horizontally) under
the connector J1
• Square microprocessor plus EPROM
• NO ‘W1’ jumper for calibration
• NO Blue ‘pressure interface/printer’
connector
• All components integrated on single
board
• Surface mount type component.
• ‘Push in’ yellow thermocouple
connectors.
