SciCan Statim 5000 - Removing and Replacing the STATIM 5000 G4 Armature Gasket

Page 130
STAT IM 2000/2000S Service Guide
96-106775 Rev 5.0
6. Cover Assembly
STATIM 5000/5000S/5000 G4 Service Guide
Removing and Replacing the STAT IM 5000 G4 Armature Gasket
To remove the armature gasket, remove the cover to access the inside of the fascia and peel the
existing armature gasket from the fascia.
To replace the armature gasket follow these steps (see Figure 6).
1. Remove all traces of the gasket (1) and gasket adhesive from inside the fascia (2). The fascia
is manufactured of polycarbonate plastic. DO NOT USE AROMATIC SOLVENTS ON THE
FASCIA. This will damage the fascia. To prepare for installation of the new gasket, roughen the
inside surface of the fascia using a fine grit sandpaper.
2. Leave the carrier paper on the adhesive side of the gasket and perform a trial fit. Note that
the widest part of the gasket fits at the bottom of the opening and that the gasket does not
protrude into the opening.
3. Remove the carrier paper from the adhesive side of the gasket. Carefully install the gasket
making sure it is seated firmly in place.
Page 23
STATIM 5000 G4 Service Guide
Removing and Replacing the Armature Gasket
To remove the armature gasket, remove the cover to access the inside of the fascia and
peel the existing armature gasket from the fascia.
To replace the armature gasket follow these steps (see Figure 2).
1. Remove all traces of the gasket (1) and gasket adhesive from inside the fascia (2). The
fascia is manufactured of polycarbonate plastic. DO NOT USE AROMATIC SOLVENTS
ON THE FASCIA. This will damage the fascia. To prepare for installation of the new
gasket, roughen the inside surface of the fascia using a fine grit sandpaper.
2. Leave the carrier paper on the adhesive side of the gasket and perform a trial fit. Note
that the widest part of the gasket fits at the bottom of the opening and that the gasket
does not protrude into the opening.
3. Remove the carrier paper from the adhesive side of the gasket.
Carefully install the gasket making sure it is seated firmly in place.

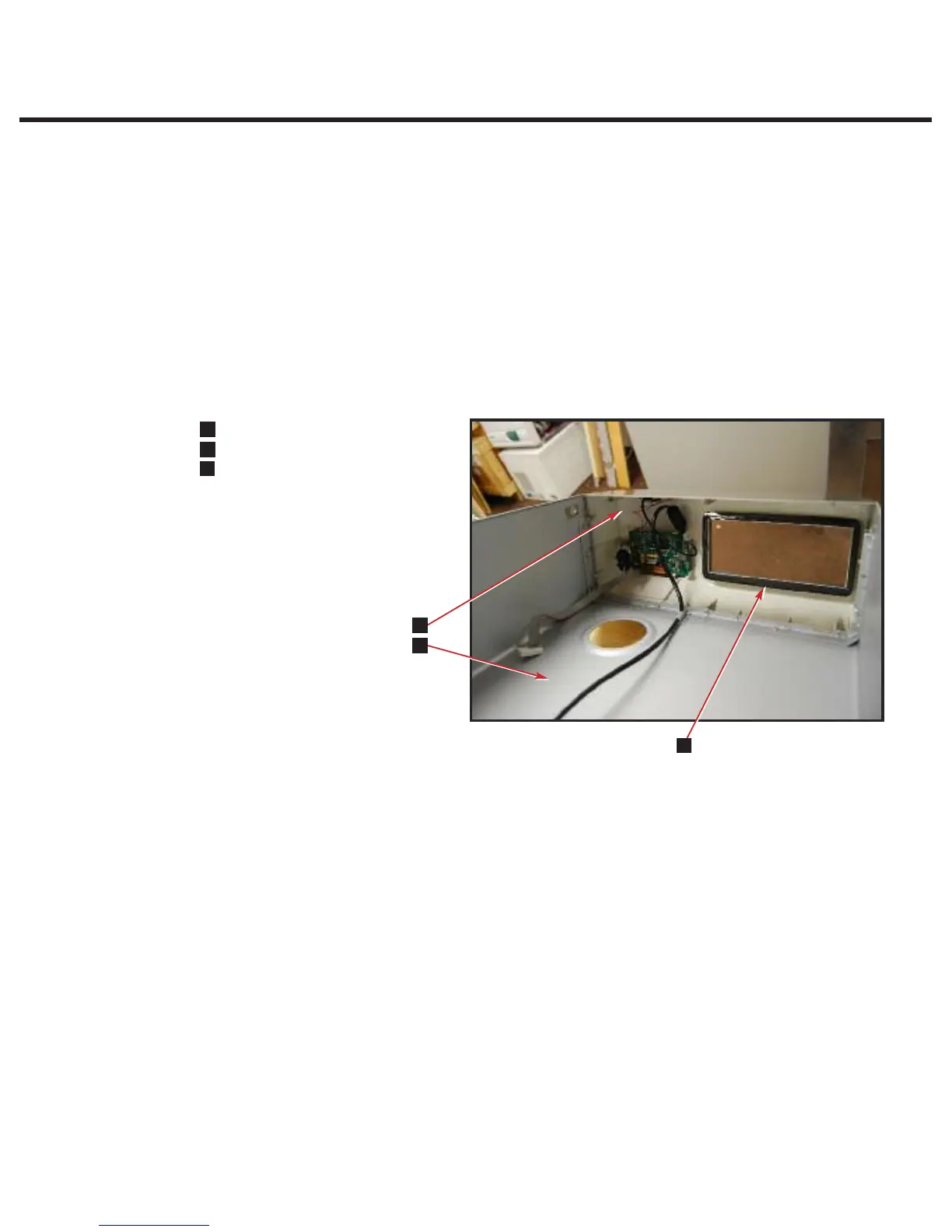

Cover Assembly
n
1
Armature gasket
n
3
Fascia
Cover
1
2
3
Figure 2
2
3
1
Figure 6
