8. Water Pumps, Reservoir, and Compressor
Upgrading a unit with a Thomas Compressor to a Medo Compressor
These instructions are for the spare part kits 01-112664S, 01-112665S and 01-112666S, intended
for the upgrade from Thomas to Medo compressors on STATIM 5000/5000S units in the field.

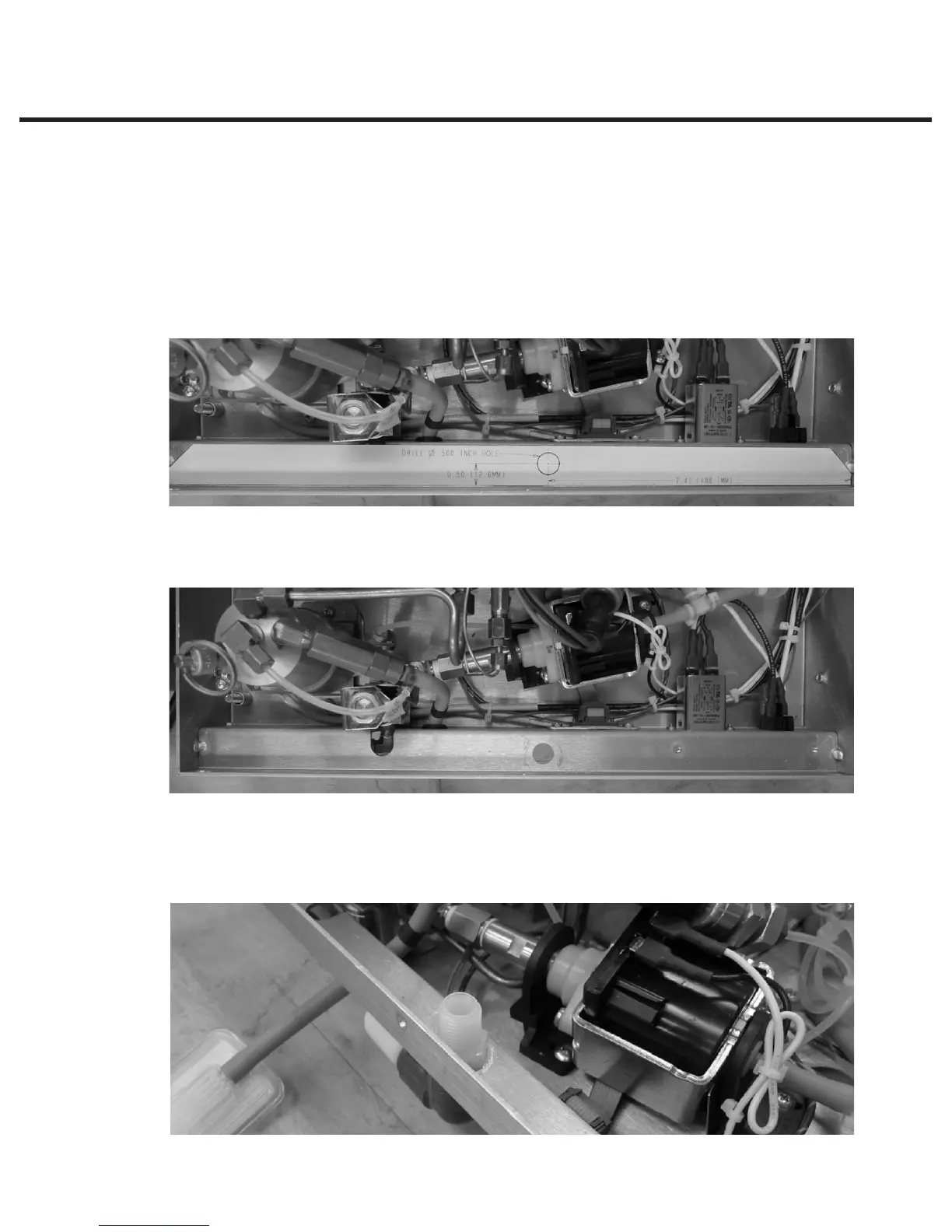

1. The chassis of units fitted with Thomas Compressors must be modified to accommodate the
biological filter of a Medo Compressor. Using the template provided, locate the position of the
hole for the Medo filter at 7.41” (188.1 mm) from left wall and 0.50” (12.6 mm) from back wall.
2. With the drill bits provided, drill a 0.500” hole by first drilling a 0.250” pilot. Deburr and remove
sharp edges from the hole.
3. Hand-tighten the air pre-filter (80-101274) to the elbow fitting (74-101275), then fasten the
connector (74-101306) to the elbow fitting through the drilled hole using an 11/16” wrench,
fixing the filter underneath the chassis and pointing away from the compressor.
STATIM 5000/5000S/5000 G4 Service Guide
Figure 28
Figure 29
Figure 30
