SciCan Statim 5000 - LCD DC Power Source for STATIM 5000 G4

Page 159
STAT IM 2000/2000S Service Guide
96-106775 Rev 5.0
7. Electrical and Electronic Components
STATIM 5000/5000S/5000 G4 Service Guide
LCD DC Power Source for STAT IM 5000 G4
Removing and Replacing the STAT IM 5000 G4
LCD DC Power Source
To remove the LCD DC power source, remove the cover and place it on its side next to the unit.
Then follow these steps (see Figure 22):
1. Disconnect the LCD DC power source wires (1) from the LCD controller board (2) located
inside the unit fascia (3).
2. Remove the two screws (4) holding the LCD DC power source bracket (5) to the chassis (6).
To replace the LCD DC power source, reverse the removal instructions.
Page 32
STATIM 5000 G4 Service Guide
Removing and Replacing the LCD DC power source
To remove the LCD DC power source, remove the cover and place it on its side next to the unit.
Then follow these steps (see Figure 9):
1. Disconnect the LCD DC power source wires (1) from the LCD controller board (2) located
inside the unit fascia (3).
2. Remove the two screws (4) holding the LCD DC power source bracket (5) to the chassis (6).
To replace the LCD DC power source, reverse the removal instructions.
DC Power Source
n
1
LCD DC power source wires
n
3
LCD controller board
(not shown)
n
3
Fascia (not shown)
n
3
Screws
n
3
DC power source bracket
n
3
Chassis
1
2
3
4
5
6

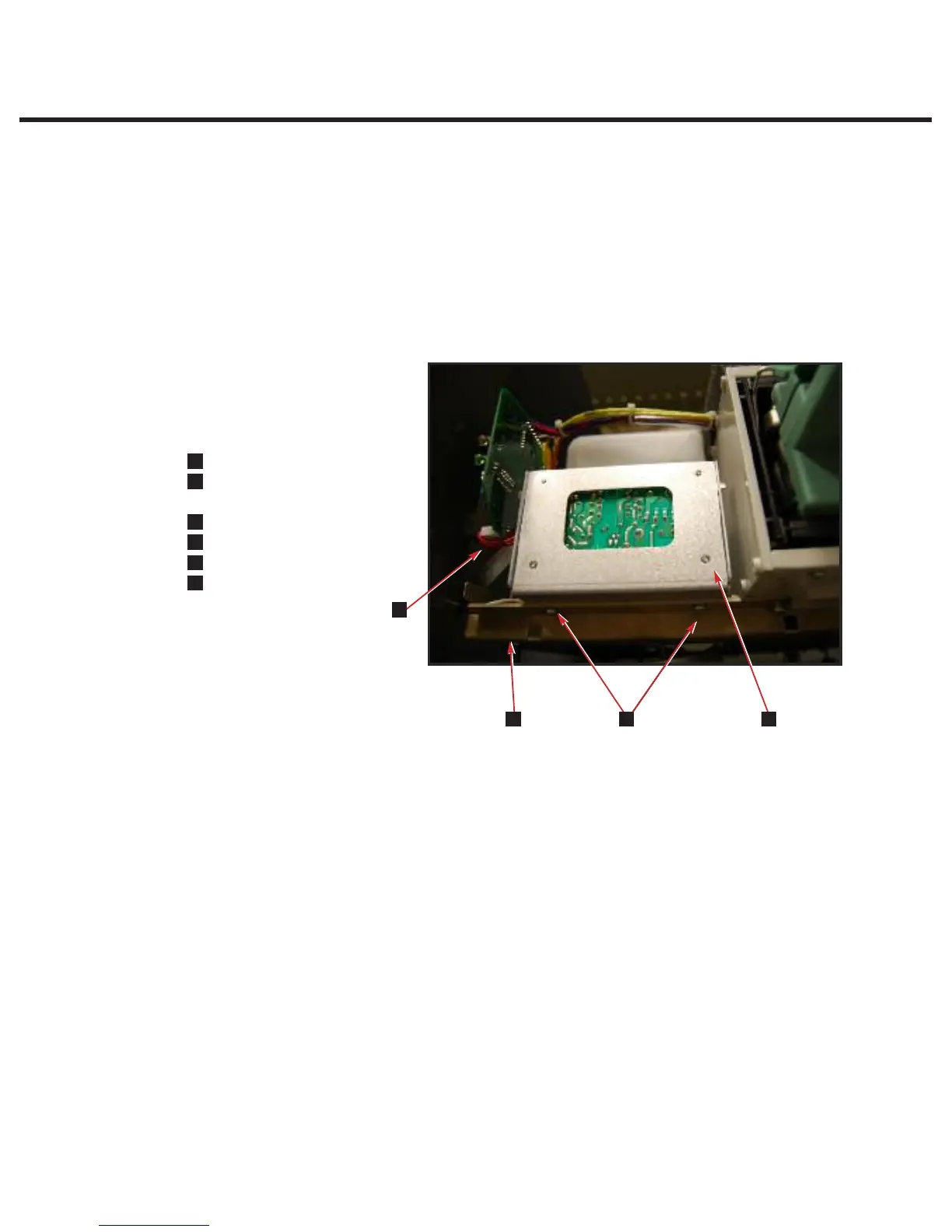

Figure 9
1
4
6
5
Figure 22
